What Tests Can a Three-phase Power Analyzer Perform?

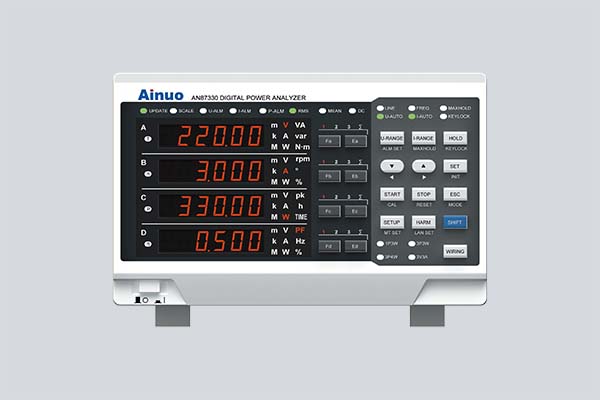

A three-phase power analyzer is a versatile and powerful diagnostic tool used by engineers and technicians to understand the health, efficiency, and quality of electrical power systems.

Here is a comprehensive list of tests and measurements a three-phase power analyzer can perform, categorized by their primary function.

I. Fundamental Power & Energy Measurements

These are the core measurements for understanding system performance and energy consumption.

Voltage (V): Measures RMS, average, and peak voltage for each phase (L-N, L-L) and neutral.

Current (A): Measures RMS, average, and peak current for each phase and neutral.

Frequency (Hz): Monitors the system frequency and its stability.

Active Power (kW): Measures the "real" power doing the actual work (e.g., producing heat, light, or motion). This is the primary value for electricity billing.

Reactive Power (kVAR): Measures the power stored and released by inductive (motors, transformers) or capacitive loads. This power doesn't do useful work but stresses the distribution system.

Apparent Power (kVA): The vector sum of active and reactive power; the total power that the electrical system must be capable of handling.

Power Factor (PF): The ratio of Active Power to Apparent Power (kW/kVA). It indicates how effectively electrical power is being used. A value of 1 is ideal.

Energy (kWh, kVARh): Integrates power over time to measure total energy consumption (both active and reactive).

II. Power Quality Analysis

This is critical for identifying problems that can cause equipment malfunctions, overheating, and premature failure.

Harmonic Distortion

    1. Total Harmonic Distortion (THD): Measures the distortion of the voltage and current waveforms caused by harmonics.

    2. Individual Harmonic Distortion: Measures the magnitude and phase angle of each harmonic order (e.g., 2nd, 3rd, 5th, 7th up to the 50th or higher).

Voltage & Current Unbalance: Calculates the percentage unbalance between the three phases, which can cause overheating in three-phase motors and transformers.

Flicker: Measures rapid changes in voltage that cause visible flickering of lights, which can be irritating and indicate network instability.

Transients (Spikes & Dips): Captures very short-duration, high-amplitude voltage events (spikes) or brief reductions (dips/sags) that can crash sensitive electronic equipment.

Inrush Current: Captures the high momentary current drawn by equipment like motors and transformers when they are first switched on. This is vital for sizing protective devices like circuit breakers.

III. Advanced Electrical Analysis

These measurements provide deeper insights for system design and troubleshooting.

Demand Analysis: Tracks the maximum average power or current used over a specific interval (e.g., 15 or 30 minutes), which is crucial for utility billing and managing peak loads.

Phase Angle & Power Factor Angle: Measures the displacement between voltage and current waveforms, helping to characterize the type of load (inductive or capacitive).

Waveform Capture: Digitally captures and displays the actual shape of voltage and current waveforms for visual inspection and analysis.

Sequence Components: Breaks down the three-phase system into positive, negative, and zero sequence components. This is essential for analyzing unbalance and for protective relay testing.

Dips, Swells, and Interruptions: Logs and categorizes longer-duration voltage variations according to standards like EN 50160 or IEEE 1159.

Motor Starting Analysis: A specialized test that combines inrush current, voltage dip, and speed-up time to assess the health of a motor and its starting system.

IV. Specific Applications and Derived Tests

By using the core data, power analyzers can perform or support these specific tests:

Efficiency Testing: Calculates the efficiency of motors, drives, transformers, and entire systems by comparing input power to output power.

Load Profiling: Records power consumption over an extended period (days or weeks) to understand usage patterns and identify opportunities for energy savings.

Transformer Loss Measurement: Precisely measures the core (no-load) and copper (load) losses of a transformer.

Circuit Breaker & Relay Testing: Verifies the timing and performance of protective devices.

Commissioning New Equipment: Verifies that newly installed equipment operates within its specified electrical parameters and does not negatively impact the power system.

Summary Table of Key Measurements

In essence, a three-phase power analyzer is the "multimeter" for complex industrial and commercial power systems. It moves beyond simple measurements to provide a holistic view of how electrical energy is being generated, distributed, and consumed, making it indispensable for energy auditing, troubleshooting, and ensuring regulatory compliance.
