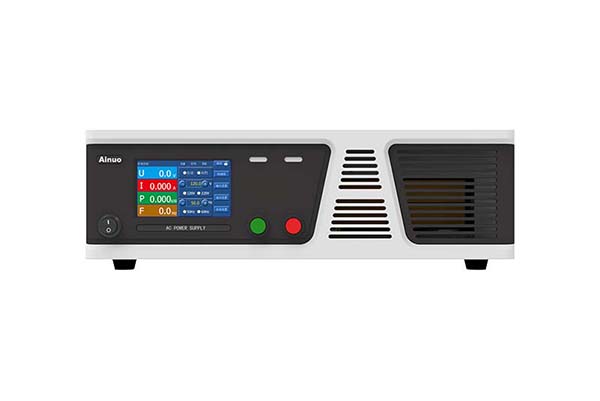

Which Features Matter Most in a Lab AC Power Supply?

Walk into any well-equipped electronics lab, and you'll see a lineup of trusted workhorses: oscilloscopes, multimeters, soldering stations, and, of course, the ubiquitous DC bench power supply. But what about when your device under test (DUT) doesn't run on DC? When you're designing, testing, or troubleshooting products that plug directly into a wall outlet, a lab-grade AC power supply becomes an indispensable tool.

An AC power supply isn't just a fancy wall outlet. It's a precision instrument that provides clean, stable, and controllable AC power. But with a range of models on the market, from basic to highly advanced, which features truly matter for your work? Let's break down the key specifications and functions you should prioritize.

The Non-Negotiables: The Foundation of Every Test

These are the features you simply cannot do without. They form the baseline for any useful lab AC power supply.

1.    Voltage and Power Range: This is your first consideration. Ask yourself:

o    What regions am I designing for? A supply that can output 0-300V AC will cover standard single-phase voltages worldwide (e.g., 120V, 230V, 240V).

o    How much power does my DUT consume? Ensure the supply can deliver both the voltage and the current (Power = Voltage x Current) your device needs, with a safe margin. A 500VA (Volt-Ampere) unit is a common starting point for many labs, but power-hungry devices may require 1kVA or more.

2.    Frequency Control: The AC mains frequency is 50Hz or 60Hz, depending on your location. A good lab supply allows you to set this precisely. Why does this matter?

o    Compliance Testing: Your product must function correctly at both 50Hz and 60Hz.

o    Motor and Transformer Testing: The performance of inductive loads like motors and transformers is highly dependent on frequency.

3.    Clean, Regulated Output (Low Distortion): The wall outlet is noisy. It has harmonics, sags, and surges. A lab AC supply's primary job is to provide a perfect, stable sine wave with very low total harmonic distortion (THD). This gives you a known-good baseline, isolating your device's performance from the vagaries of the grid.

The Game Changers: Features That Supercharge Your Workflow

While the non-negotiables let you perform basic tests, the following features transform the instrument from a simple power source into a powerful diagnostic and validation tool.

1.    Programmability and Automation (GPIB/USB/LAN): Manually turning knobs to change voltage for a sequence of tests is slow and prone to error. A programmable interface allows you to:

o    Automate Tests: Create complex sequences that sweep voltage, simulate brownouts, or cycle power repeatedly.

o    Integrate into Systems: Control the supply alongside your other instruments (oscilloscopes, data loggers) for a fully automated test bench.

o    Log Data: Record voltage, current, and power over time.

2.    AC Simulation Features (Surge, Dip, Interruption): The real world is a harsh place for power electronics. Can your device handle a voltage dip (a "brownout")? What about a sudden surge or a complete power loss? Advanced supplies can simulate these real-world conditions:

o    Voltage Dips & Surges: Programmatically drop the voltage to 80% for a few cycles or surge to 120% to test the robustness of your design.

o    Phase-Angle Control: Simulate a brownout condition by starting the AC waveform at a specific point in its cycle, which can be more stressful for some power supplies than a simple voltage drop.

3.    Precision Measurement and Display: You need to see more than just the voltage you set. A high-quality display will show you:

o    True RMS Voltage and Current: Essential for accurate power calculation with non-sinusoidal waveforms.

o    Real-Time Power (W), VA, and Power Factor (PF): Critical for analyzing the efficiency and load characteristics of your DUT.

o    Peak Current: Inrush current when a device turns on can be many times higher than its steady-state draw. Measuring this peak is vital for selecting fuses, breakers, and internal components.

The Advanced Arsenal: For Specialized Applications

For those working on the cutting edge or in regulated industries, these features can be critical.

1.    Arbitrary Waveform Generation: What if you need more than a perfect sine wave? This feature allows you to generate distorted waveforms, square waves, or even simulate the specific noise profile from a particular type of generator. This is essential for testing military aerospace (MIL-STD-704) or automotive equipment.

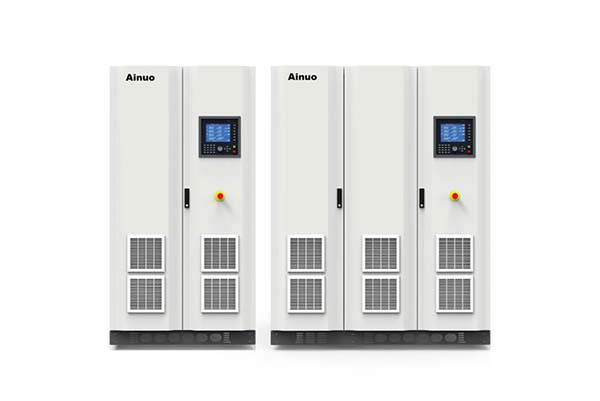

2.    Bi-Directional (Source/Sink) Capability: Traditional supplies can only source power. A 4-quadrant or bi-directional AC power supply can also sink power, meaning it can absorb energy fed back into it from the DUT. This is crucial for testing:

o    Regenerative Inverters (like those in solar systems or electric vehicles).

o    Devices with motor braking systems.

3.    List (Sequence) Mode: This takes programmability a step further. Instead of sending individual commands, you can upload a long, complex sequence of voltage, frequency, and timing instructions to be executed rapidly and precisely. This is perfect for durability and lifecycle testing.

Making Your Choice: A Quick Checklist

Before you invest, run through this list:

· Basic Validation & Repair: Ensure you have variable voltage (0-300V), frequency control (45-65Hz/ 45-440Hz), and a clean, low-THD sine wave.

· Design & Development Engineering: Prioritize programmability (USB/LAN), precise measurement (Power, PF), and simulation features (dips/surges).

· High-Power / Automotive / Aerospace: Look for high power (1kVA+), arbitrary waveform generation, list mode, and potentially bi-directional operation.

Ultimately, the "most important" features are the ones that match your specific testing needs. By understanding the capabilities of a modern lab AC power supply, you can move beyond simply powering a circuit and start actively challenging it, ensuring your products are robust, efficient, and ready for the real world.
