Using Grid Simulators to Ensure Device Survival During Power Sags, Swells, and Dips

Imagine this: a homeowner in a storm-prone area invests in a state-of-the-art solar and battery storage system. During a gust of wind, a tree branch touches a power line, causing a brief but sharp voltage drop. Instead of riding out the disturbance, the system’s inverter shuts down unexpectedly, leaving the home in the dark. This isn't a design flaw in the inverter's core function; it's a failure to survive a common, real-world grid event.

This scenario underscores a critical truth: the power from our electrical grid is not perfectly stable. It’s a dynamic system, constantly subjected to disturbances. For manufacturers of any grid-connected device, from EV chargers to industrial motor drives, ensuring a product can survive these disturbances is just as important as ensuring it functions correctly under perfect conditions.

This is where the AC Grid Simulator moves from a "nice-to-have" to an essential piece of test equipment. It’s the key to proactively testing your devices against the unthinkable.

The Unstable Reality: Sags, Swells, and Dips Explained

Before we dive into the testing, let's define the enemies:

·         Voltage Sag (or Dip): This is a short-term reduction in voltage amplitude, typically between 10% and 90% of the nominal voltage, lasting from half a cycle to a minute. Sags are the most common power quality problem, often caused by the starting of large motors, fault conditions on adjacent lines, or utility switching operations.

·         Voltage Swell: The opposite of a sag, a swell is a short-term increase in voltage amplitude, usually between 110% and 180% of nominal. Swells are less common and often occur due to sudden load reductions or the de-energizing of large capacitors or transformers.

·         Voltage Interruption (Dip to Zero): A complete loss of voltage, for a few milliseconds up to a few seconds. This is what happens during a blackout, but brief interruptions can be caused by faults that are quickly cleared by protective equipment.

These events are not rare. They happen daily on grids around the world. If your product hasn't been tested against them, it's operating on luck.

The Grid Simulator: Your Portable, Programmable Storm Cloud

A traditional power supply provides clean, stable, "textbook-perfect" AC power. A grid simulator is different. It is a sophisticated power amplifier controlled by digital signal processing that can replicate any grid condition you can imagine with precision and repeatability.

Think of it as a programmable storm cloud for your lab bench. You can command it to create:

·         Standardized Test Profiles: Reproduce test waveforms defined by international standards like IEEE 1547 (for distributed energy), IEC 61000-4-11/34 (for immunity testing), or SAE J2894 (for power quality of electric vehicle chargers).

·         Real-World Event Replication: Mimic a specific voltage sag you logged in the field or a unique swell pattern common in a particular geographic region with a "weak" grid.

·         Worst-Case Scenarios: Push your device to its absolute limits by creating sags and swells of increasing depth and duration to find its failure point.

The "Why": From Compliance to Customer Satisfaction

Using a grid simulator to test for power disturbances delivers tangible benefits:

1.       Prevent Field Failures and Costly Recalls: Catching a vulnerability during the R&D phase is infinitely cheaper than a widespread field retrofit or product recall. A device that shuts down during a minor sag leads to frustrated customers and expensive service calls.

2.       Accelerate Compliance and Certification: Many regulatory bodies now require rigorous testing under abnormal voltage conditions. Having a grid simulator in-house streamlines this process, allowing you to iterate and validate designs quickly without relying on external labs.

3.       Build a Bulletproof Brand Reputation: Products known for their reliability and robustness command a premium and foster intense customer loyalty. In sectors like industrial automation, telecommunications, or renewable energy, "it never goes down" is a powerful selling point.

4.       Enable "Design for All" Products: If you plan to sell your product globally, it must withstand the different grid characteristics of North America, Europe, Asia, etc. A grid simulator allows you to validate performance across all these environments from a single lab.

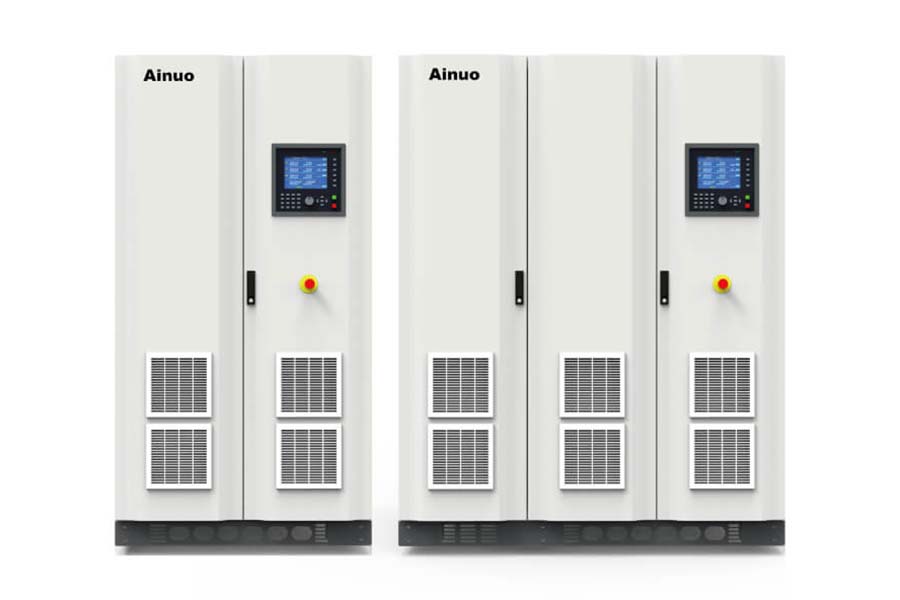

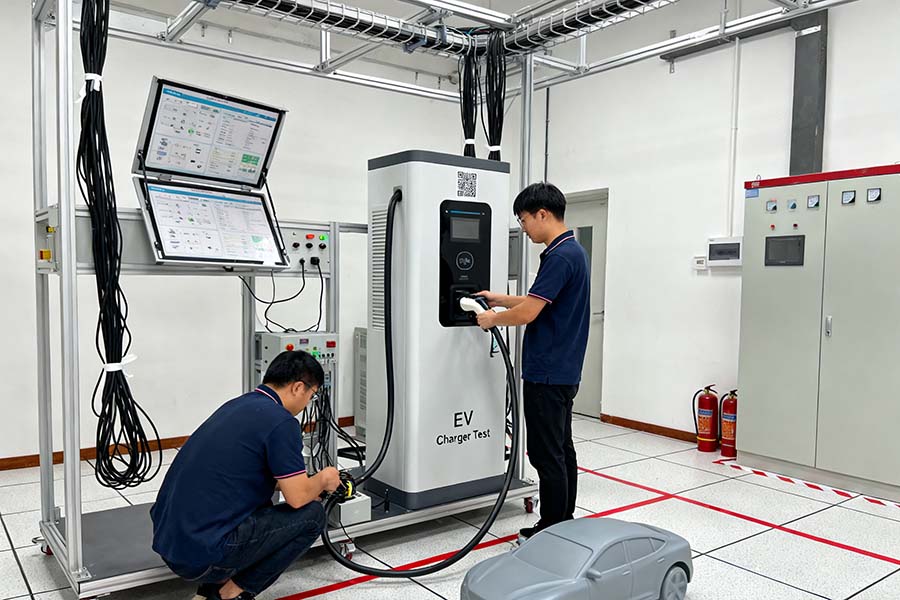

Practical Application: Testing an EV Charger's Ride-Through Capability

Let's make this concrete with an example. You are developing a bi-directional EV charger.

·         The Test: You need to ensure that during a brief voltage sag (a common event when a neighboring factory starts its machinery), the charger doesn't disconnect. This "ride-through" capability is crucial for grid stability, especially as EVs become more prevalent.

·         The Setup: You connect the charger to the grid simulator and program it to output a standard 230V/50Hz waveform.

·         The Simulation: You command the simulator to instantaneously drop the voltage to 50% of nominal for 500 milliseconds—a severe but plausible sag.

·         The Analysis: You monitor the charger. Does it:

o    Option A (Fail): Immediately shut down, interrupting the charge cycle and potentially upsetting the driver?

o    Option B (Pass): Continue operating, either at a reduced power level or by drawing on its internal energy storage, and seamlessly resume normal operation once the grid recovers?

By identifying the failure (Option A), you can go back to your design team to improve the control algorithms and hardware, re-test, and verify the fix—all before a single unit is installed in a customer's garage.

Conclusion: Don't Wait for the Storm to Find the Leak

Relying on the ideal conditions of a perfect grid is a massive business risk. Power sags, swells, and dips are inevitable. The question is not if your device will encounter them, but how well it will survive.

Integrating an AC Grid Simulator into your validation workflow is a proactive investment in product quality, reliability, and safety. It allows you to build and certify devices that don't just work in the lab, but thrive in the challenging, unpredictable environment of the real world.
