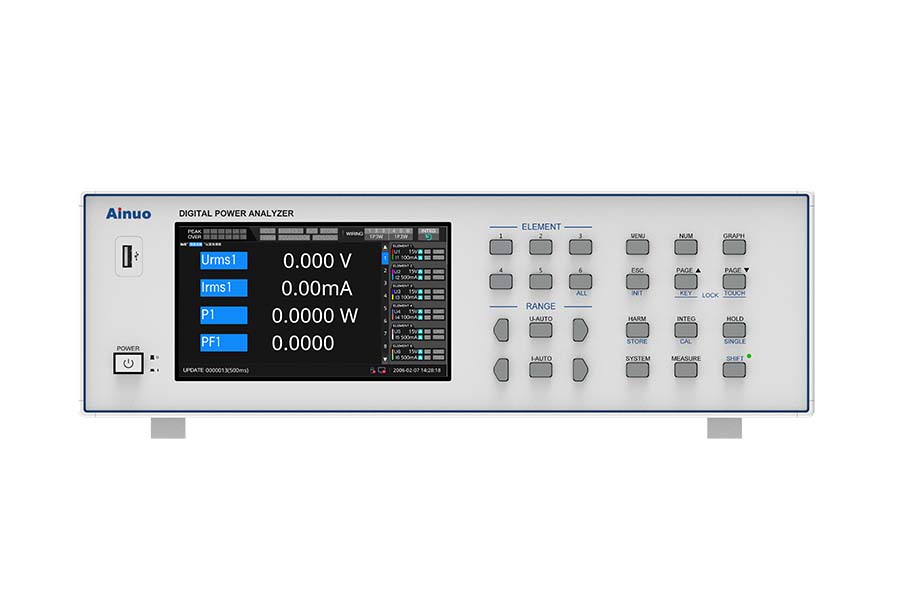

Advantages of Using Multi-channel Power Analyzer to Test OBC

Using a multi-channel power analyzer to test on-board chargers (OBCs) offers significant advantages, particularly in terms of test accuracy, efficiency, and in-depth analysis. This is primarily driven by the complex operating characteristics and testing requirements of OBCs.

The following are the key benefits of using a multi-channel power analyzer for OBC testing:

1. Synchronous, high-precision measurement enables comprehensive efficiency analysis

This is the core advantage. An OBC is an energy conversion system, and efficiency is a key metric.

Limitations of traditional methods: Using multiple individual instruments to measure the input AC side and output DC side separately, due to time asynchrony, cannot calculate instantaneous power and accurate overall efficiency, especially under dynamic operating conditions.

Advantages of a multi-channel analyzer: All channels use synchronized sampling, enabling simultaneous measurement of:

Input side (AC): voltage, current, power (active, reactive, apparent), power factor, harmonics, etc.

Output side (DC): voltage, current, and power.

Real-time efficiency calculation: The instrument accurately calculates efficiency (η) in real time: output DC power / input AC power. This is crucial for creating efficiency maps (efficiency contour plots at different input voltages, output voltages, and load currents), enabling a comprehensive assessment of the OBC's performance at various operating points.

2. Meeting the Testing Requirements of Bidirectional OBCs

Modern OBCs generally feature both V2L (vehicle-to-load) and V2G (vehicle-to-grid) functionality, meaning that energy can flow in both directions.

Advantages of a Multi-Channel Analyzer: A high-performance power analyzer can seamlessly measure bidirectional power flow. Whether AC to DC (charging) or DC to AC (discharging), it accurately measures positive and negative power and calculates efficiency in both charging and discharging modes.

3. In-depth Analysis of Harmonics and Power Quality

As high-power switching power supplies, OBCs are nonlinear loads on the grid side, generating harmonic currents that affect power quality. Relevant standards (such as ISO 7637 and GB/T 18487) have strict limits on harmonic emissions.

Advantages of a Multi-Channel Analyzer:

AC Input Harmonic Analysis: Accurately measures voltage and current harmonics up to tens or even hundreds of harmonics, assessing total harmonic distortion (THD) and ensuring product compliance.

Power Quality Analysis: Analyzes flicker, voltage fluctuations, and other factors to assess the OBC's grid-friendliness.

4. Simultaneous Evaluation of Control and Power Signals

The OBC's operating status is controlled by an internal control system (such as a PWM signal).

Advantages of a Multi-Channel Analyzer: Many high-end power analyzers (such as Yokogawa's PW8001) integrate oscilloscope functionality or high-speed digital input channels. This allows you to simultaneously observe power waveforms (voltage and current) and control signal waveforms (such as PWM drive signals) on the same timeline. This is extremely valuable for debugging faults (such as switch mis-triggering and dead time issues) and analyzing transient responses (such as sudden load changes).

5. Significantly Improves Test Efficiency and Automation

Integrated Platform: A single device replaces multiple single-function instruments (such as a power meter, harmonic analyzer, and oscilloscope), simplifying wiring and system setup.

Automated Testing: PC software (such as Yokogawa's WTViewer+ or Hioki's Power Analyzer Application) allows remote instrument control to automatically execute a series of tests (such as efficiency, harmonics, and standby power consumption) and generate reports, significantly shortening R&D and verification cycles.

6. Accurately Measure Losses and Power Factor

Loss Analysis: By synchronously measuring input and output power, total system losses can be easily calculated. Combined with temperature measurement, loss distribution within each component can be deeply analyzed.

Power Factor Measurement: Power factor is a key metric for AC-DC converters. Power analyzers can directly provide highly accurate power factor values, including displacement power factor (DPF) and total power factor (TPF).

Summary

The benefits of using a multi-channel power analyzer for OBC testing can be summarized as follows:

Advantages: Specific Value for OBC Testing

Synchronicity: Accurate instantaneous efficiency measurement is achieved, allowing for the creation of efficiency maps.

Comprehensiveness: A single device simultaneously performs multiple tests, including power, harmonics, power quality, and waveforms.

Deep Analysis: Supports bidirectional power measurement and correlates power signals with control signals for in-depth debugging.

High Efficiency: simplifies test systems, supports automated testing, and accelerates R&D and production testing processes.

High Precision: Provides industry-leading measurement accuracy, ensuring the reliability and authority of test data.

Thus, the use of multi-channel, high-precision power analyzers has become an industry best practice during the R&D, verification, and type testing phases of OBCs. They are critical tools for ensuring the high performance, reliability, and regulatory compliance of OBC products.
