Why Use a Bidirectional Battery Simulator to Test the Electric Drive System of NEVs?

The heart of any New Energy Vehicle (NEV)—be it a battery-electric vehicle (BEV) or plug-in hybrid (PHEV)—is its electric drive system. This complex system, comprising the power electronics, electric motor, and gearbox, is what transforms stored energy into the motion that propels the vehicle forward.

For decades, the default method for testing this critical system was to use a real, physical high-voltage battery. It seems logical, right? Test with the component that will actually be in the car. However, this approach is fraught with limitations, costs, and risks that can severely hamper innovation and slow down development.

Enter the Bidirectional Battery Simulator—a game-changing piece of test equipment that is becoming the new gold standard for R&D and validation labs. But why is it so much better? Let's dive in.

The Problem of Testing with a Physical Battery

First, let's understand the shortcomings of the traditional method:

1. Limited Reproducibility: A real battery's state changes with every use. Its State of Charge (SOC), temperature, age, and health are in constant flux. How can you reliably compare the performance of a new motor controller design from test #5 to test #105 if the "power source" is a chemically aging system that is never in the exact same state twice?

2. Inability to Test Edge Cases Safely: What happens to the drive system during a full regenerative braking event at 5% SOC? What about a rapid charge/discharge cycle at -20°C? Pushing a real battery to its limits to simulate these scenarios is dangerous, can damage the battery, and poses a significant safety risk due to potential thermal runaway.

3. Lack of Flexibility: A physical battery is, well, fixed. It has a specific voltage range, capacity, and chemistry. To test how your drive system performs with a different battery (e.g., a next-generation 800V architecture or a different chemistry), you need to source and commission an entirely new, expensive physical battery.

4. It Misses Half the Picture: A physical battery can only discharge. But an EV's drive system is bidirectional. Energy flows from the battery to the motor to accelerate, and from the motor back to the battery during regenerative braking. A simple DC power supply can't accurately simulate this crucial energy recovery process.

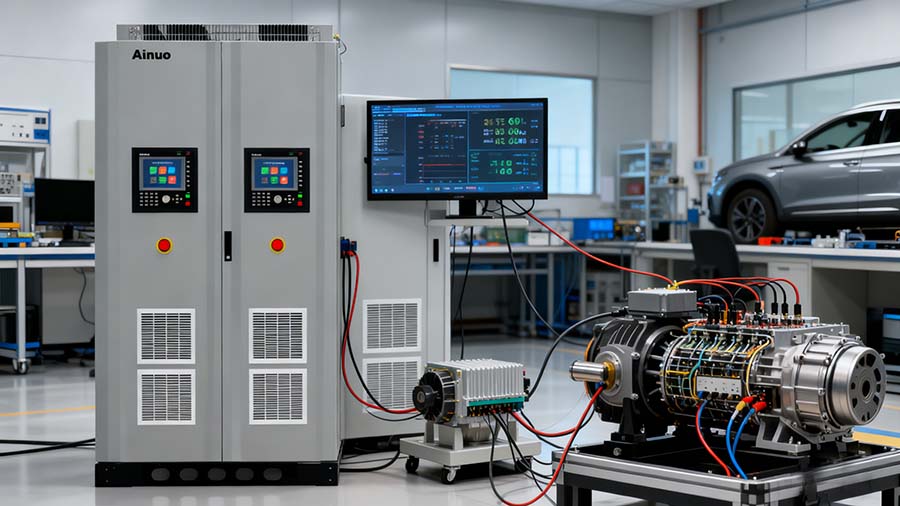

The Solution: The Bidirectional Battery Simulator

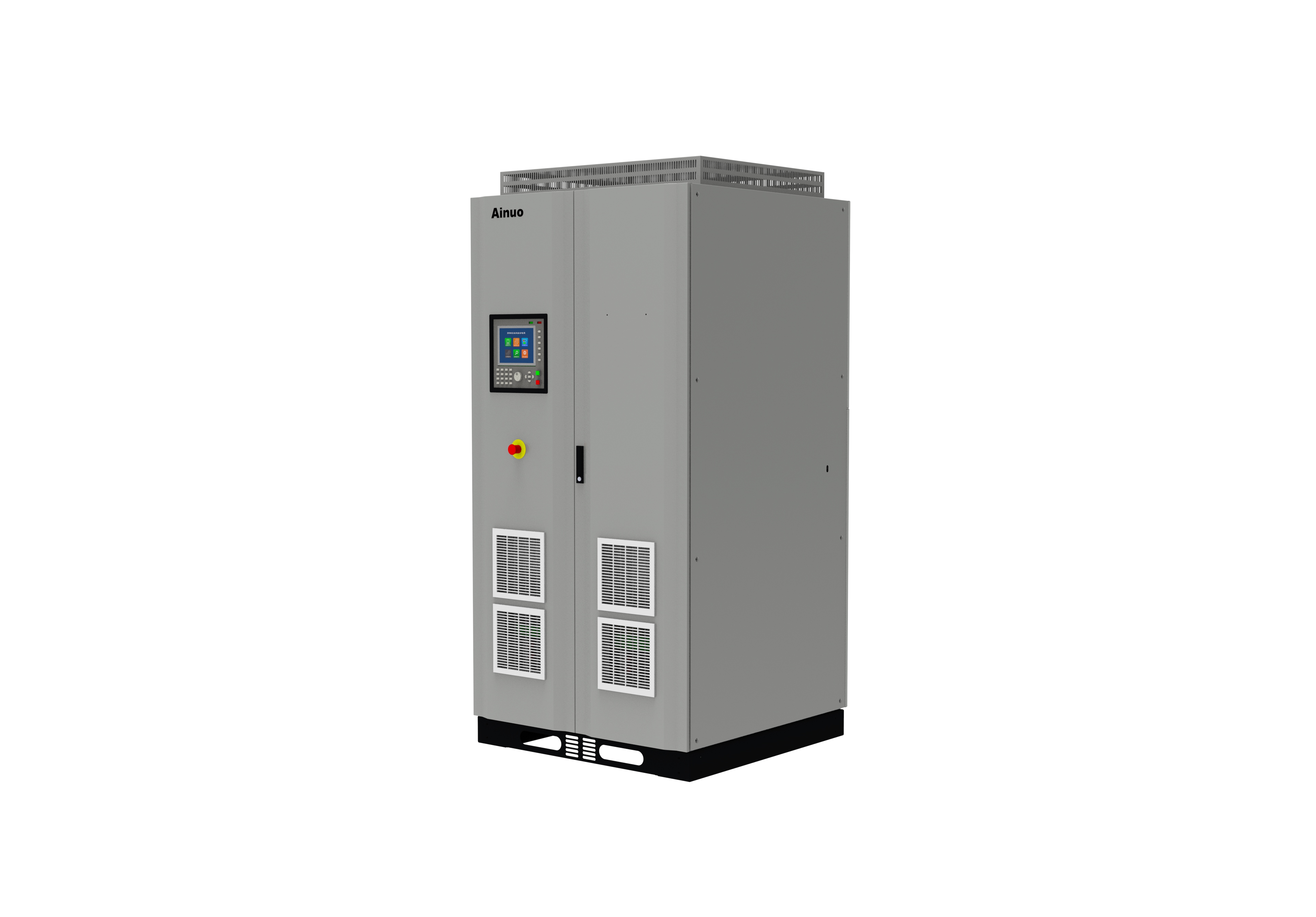

A bidirectional battery simulator is a high-precision power instrument that acts as a perfect, programmable, and dynamic battery. It doesn't just supply power; it can also sink power, meaning it can absorb the energy generated by regenerative braking, exactly like a real battery would.

Here’s why this is a transformative tool for electric drive system testing:

1. Unmatched Precision and Repeatability

With a simulator, you have complete control. You can program a precise voltage, current, and resistance profile to represent any battery state. You can replicate a brand-new battery, a degraded 5-year-old battery, or a battery at any exact SOC (e.g., 47.3%)—and you can do it over and over again with perfect consistency. This allows for true apples-to-apples comparison of your drive system's performance, enabling you to isolate issues and optimize with confidence.

2. Safe and Comprehensive Edge-Case Testing

Forging a robust and safe drive system requires testing its limits. A bidirectional simulator allows you to safely simulate fault conditions and extreme scenarios without any risk of explosion or fire.

• Simulate a sudden internal short circuit in the battery.

• Program voltage dips and surges.

• Test the system's response to over-voltage from aggressive regeneration.

• Push the limits of charge and discharge cycles without damaging a single physical cell.

This ensures your system is not only efficient but also inherently safe under all conditions.

3. Unparalleled Flexibility and Future-Proofing

One simulator can emulate thousands of different batteries. With software, you can model the behavior of NMC, LFP, solid-state, or even future battery chemistries. You can test your drive system against a 400V architecture today and an 800V architecture tomorrow, all with the same hardware. This drastically reduces costs and accelerates the exploration of new technologies.

4. Capturing the Full Energy Cycle

This is the "bidirectional" advantage. The simulator doesn't just power the motor; it also acts as a sink for regenerated energy. Instead of wasting this energy as heat in a "dummy load," the simulator can feed it back to the grid or reuse it within the lab, significantly reducing energy costs and environmental impact. More importantly, it allows you to test the efficiency and stability of the entire energy flow loop, which is critical for maximizing vehicle range.

5. Accelerated Development and Durability Testing

Time is the most valuable resource in the competitive NEV market. A bidirectional simulator can run automated, 24/7 test cycles. You can program it to execute years of real-world driving stress—rapid acceleration, hard braking, and various driving cycles—in a matter of weeks. This allows you to validate the long-term durability and reliability of the electric drive system much faster than with real-world testing.

Conclusion: A Smarter, Safer, and Faster Path to Innovation

While a physical battery will always be a final integration step, relying on it for the entire development cycle of an electric drive system is like using a finished, sealed engine to test a new fuel injector—it's inefficient, imprecise, and restrictive.

A bidirectional battery simulator is not just a replacement for a battery; it's a sophisticated design and validation partner. It provides the control, safety, flexibility, and insight needed to engineer more efficient, more reliable, and safer electric drive systems.

By adopting this technology, NEV manufacturers and component suppliers can de-risk their R&D, slash development costs, and, most importantly, bring superior electric vehicles to market faster. In the race to electrify transportation, the bidirectional battery simulator is no longer a luxury; it's a necessity.
