Multi-channel Power Analyzers Improve Efficiency and Accuracy of New EV Electronic Testing

Driven by the global goal of carbon neutrality, the new energy vehicle industry is booming at an unprecedented pace. From batteries, electric drives, to electronic controls, the vehicle's "three-electric" systems constitute its core technological barrier, and the complexity and challenges of their R&D and testing have reached levels never before seen in traditional vehicles. Behind this technological revolution, high-precision, high-efficiency electronic testing is the cornerstone for ensuring product reliability, safety, and advancement. Multi-channel power analyzers, with their superior performance, are emerging from the background, becoming a key tool for addressing current testing pain points and leading future development trends.

Current Status of the New Energy Vehicle Electronics Testing Industry

Today's automotive electronics testing laboratories are no longer solely focused on engines and mechanical components; instead, they are increasingly focused on the integration of electronics and software. Instead, they are filled with complex power electronics systems incorporating high-voltage, high-current, and high-frequency switching devices (such as IGBTs and SiC).

1. Increased Complexity of Test Objects: The focus of testing has shifted from single components to comprehensive system-level and vehicle-level testing, including:

1) Drive System: Efficiency, torque, and speed characteristics of motors and inverters.

2) Energy System: Battery charge and discharge efficiency, BMS (Battery Management System) performance, onboard charger (OBC), and DC-DC converter efficiency.

3) Regenerative Braking: Accurately capturing and evaluating the energy feedback process.

2. High Standards and Stringent Requirements: Consumers' concerns about driving range and charging speeds are forcing manufacturers to demand the highest efficiency for the "three-electric" system. Even a 0.1% efficiency improvement is significant, requiring test equipment with extremely high precision and stability.

3. Shortened R&D Cycles: Intensifying market competition and accelerating vehicle model iterations have significantly compressed the time available for testing and verification, creating an urgent need for improved testing efficiency.

Analysis of Core Industry Pain Points

Amidst this boom, engineers are facing numerous daunting challenges:

1. Simultaneous Measurement Challenges: Energy flow in new energy vehicles is bidirectional and multi-point. For example, when testing electric drive assemblies, it is necessary to simultaneously and accurately measure the DC power at the inverter input, the AC power at the inverter output, and the motor's mechanical power, and calculate the overall efficiency. Traditional single- or dual-channel power analyzers require multiple wiring and testing cycles, resulting in time and state differences between the data. This makes it impossible to truly reflect the system status at the same instant, introducing errors.

2. Complex waveforms and wide bandwidth challenges: The use of wide-bandgap semiconductor devices such as SiC/GaN has led to higher switching frequencies, resulting in waveforms rich in high-order harmonics. The insufficient bandwidth of traditional equipment results in severe distortion of measurement results, rendering it impossible to accurately assess high-frequency switching losses and EMI performance.

3. Inefficient data processing: The test process generates massive amounts of voltage, current, power, and harmonic data. Manually recording, organizing, and calculating efficiency is not only time-consuming and labor-intensive but also prone to errors, becoming a bottleneck in the R&D process.

4. Space and cost pressures: To perform multi-channel simultaneous measurements, engineers must stack multiple single-channel devices, resulting in complex system integration, cumbersome wiring, limited cabinet space, and high overall acquisition and maintenance costs.

Advantages and Solutions of Multi-Channel Power Analyzers

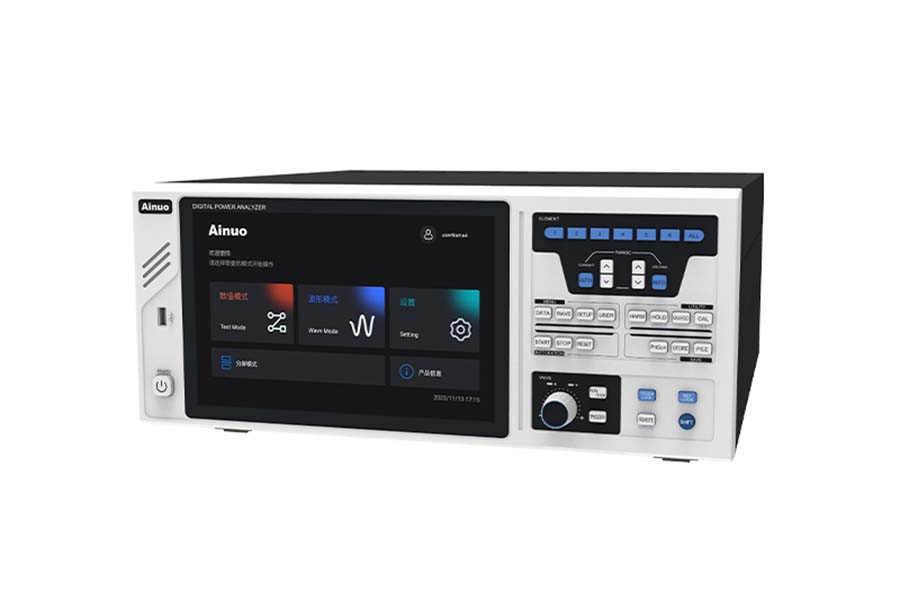

The ANPA4000, an Ainuo multi-channel power analyzer (e.g., 6-channel, 8-channel, or even higher), is the ultimate weapon designed to address these pain points.

Advantage 1: High-Precision Synchronous Measurement, Reflecting Realistic Operating Conditions

All channels of a multi-channel power analyzer share a common timebase, enabling strictly synchronized sampling of multiple signals. This means that during motor testing, it is possible to simultaneously capture the inverter input DC power, output AC power (multi-phase), and motor torque/speed, and calculate the overall efficiency from the battery to the wheel in real time. All data is collected at the same instant, ensuring the accuracy and authenticity of efficiency calculations and completely eliminating errors caused by asynchronous operation. Advantage 2: High Bandwidth and Excellent Dynamic Performance
Top-of-the-line multi-channel power analyzers typically feature bandwidths up to 5MHz or even 10MHz and support extremely high sampling rates. They can seamlessly capture the fast transient current and voltage details during the switching process of SiC/GaN devices, accurately measuring switching and conduction losses, and providing reliable data for power device optimization and selection.

Advantage 3: Integration and Automation Dramatically Improve Efficiency

1) Integrated Design: One device replaces multiple standalone units, simplifying system architecture, saving rack space, and reducing total cost of ownership (TCO).

2) Powerful Software Analysis: The accompanying software supports automatic efficiency calculation, customized report generation, harmonic analysis, waveform calculation, and more. Engineers can preset test procedures and execute them with a single click. The device automatically completes measurement, recording, and analysis, freeing up manpower from repetitive tasks and significantly increasing test efficiency.

Advantage 4: Flexibility for Complex Test Scenarios

Whether it's motor-to-motor testing, assembly bench testing, or full-vehicle energy flow testing (simultaneously measuring power-consuming components such as the OBC, DC-DC converter, air conditioning compressor, and PTC heater), the multi-channel power analyzer provides sufficient channels and flexible configurations to meet the needs of a variety of complex test scenarios.

Development Trend Outlook

As technology evolves, multi-channel power analyzers will continue to strengthen their core role in new energy vehicle testing:

1. Deep Integration with Simulation Software: In the future, test data will be seamlessly integrated into simulation platforms (such as Simulink and ANSYS), forming a closed-loop "test-verify-optimize" development process and accelerating product iteration.

2. AI and Big Data Analysis: Integrated AI capabilities enable intelligent analysis of massive amounts of test data, automatically identifying abnormal patterns, predicting performance boundaries, and optimizing control strategies, providing deeper insights for R&D.

3. Higher Channel Count and Modularity: Faced with increasingly complex electronic and electrical architectures (such as 800V high-voltage platforms and multi-motor drives), the demand for channel counts will continue to increase, and modular and scalable designs will become mainstream.

4. Focus on New Energy-Specific Functions: Built-in test items and pre-configured templates that comply with new energy regulations, including national and European standards, such as charging interoperability testing and drive system operating cycle testing (such as CLTC-P), further simplify engineers' work.

Conclusion

As new energy vehicles move toward intelligent and high-end features, the accuracy and efficiency of electronic testing directly determine the core competitiveness of the product. Multi-channel power analyzers, with their powerful synchronization, precision, efficiency, and integration, perfectly address many testing pain points facing the industry today and have become an indispensable foundational tool for the R&D and quality control of the "three-electric" system. They are more than just instruments for measuring power; they are also crucial engines driving technological innovation and enabling industrial upgrading. Investing in such advanced testing equipment is an investment in a more reliable, efficient, and superior future mobility experience.
