Battery Cycler vs. Bidirectional DC Power Supply: Which Is Best to Test Battery?

If you're building or upgrading a battery test lab, you've undoubtedly encountered two key pieces of equipment: the dedicated battery cycler and the versatile bidirectional DC power supply. At first glance, they seem to do the same thing—charge and discharge batteries. This often leads to confusion, with the terms even being used interchangeably by some.

However, understanding the fundamental distinction between them is not just a matter of semantics; it’s crucial for making a sound technical and financial decision that will impact your lab's capabilities for years to come. Choosing wrong can mean investing in a system that is either hopelessly inflexible or unnecessarily complex for your needs.

This guide will demystify both instruments, providing a clear comparison to help you determine which is the right tool for your specific application.

The Core of the Confusion: Shared DNA

First, let's address why the lines are blurred. Technologically, many modern battery cyclers are, at their heart, bidirectional DC power supplies. They utilize the same regenerative, switching power conversion technology to source and sink power with high efficiency.

The critical difference lies not in the core electrical architecture, but in the packaging, software, and intended use case. Think of it like this: a dedicated espresso machine and a versatile multi-cooker can both make coffee, but one is built for that single purpose with optimized simplicity, while the other can also sauté, steam, and slow-cook.

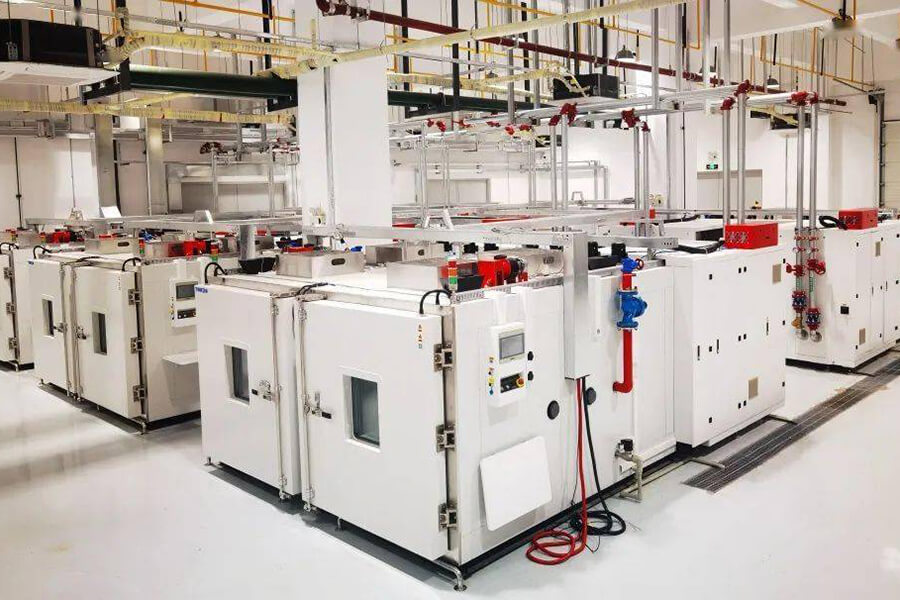

The Dedicated Workhorse: The Battery Cycler

A battery cycler is a purpose-built, turn-key system designed with one primary goal: to perform high-volume, repetitive charge and discharge cycles on battery cells and modules as efficiently and reliably as possible.

Key Characteristics:

• Integrated & Simplified Software: The biggest differentiator. The software is designed specifically for battery testing. It features pre-configured test profiles (e.g., CCCV, CP, Pulse),      built-in metrics for capacity, energy, and efficiency, and often includes dedicated functions for creating cycle life test plans. The user interface is typically intuitive for battery technicians.
• Channel-Centric Design: Cyclers are often multi-channel systems by nature. A single mainframe might control 8, 16, or even 32 independent channels, each capable of testing an individual cell simultaneously. This is ideal for quality control (QC) and characterizing large numbers of similar cells.
• Plug-and-Play Operation: They are designed to get you cycling with minimal setup. Calibration, safety limits, and data logging are all pre-configured within the battery testing paradigm.
• Limited Flexibility: This is the trade-off. The hardware and software are optimized for cycling. Using it for anything else—like simulating a battery or sourcing a complex waveform—is often impossible or extremely cumbersome.

Best For:

• Quality Control (QC) Labs: High-throughput testing of production cells.
• Cycle Life Testing: Long-term, repetitive cycling where set-and-forget operation is key.
• Academic Research: Labs focused purely on electrochemical material analysis and basic battery characterization.
• Users who need simplicity and standardization.

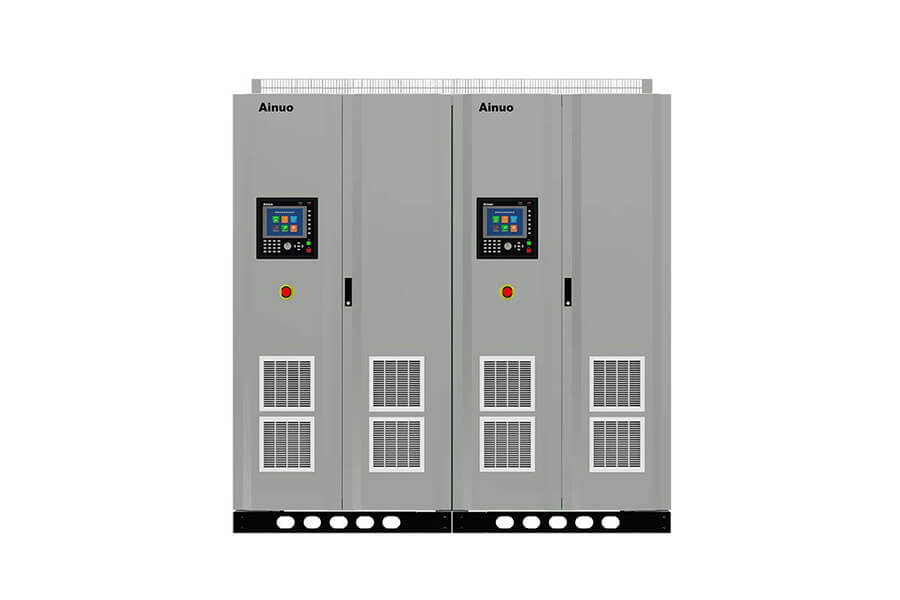

The Versatile Powerhouse: The Bidirectional DC Power Supply

A bidirectional DC power supply (also called a regenerative DC source or electronic load) is a general-purpose instrument. Its primary function is to act as a precise, programmable source of DC power and a precise, regenerative sink for DC power. Battery cycling is just one of its many applications.

Key Characteristics:

• Extreme Flexibility: This is its superpower. It can cycle batteries, but it can also emulate a battery for BMS testing, simulate solar panels or fuel cells, test DC-DC converters, and provide precise power for automotive ECU validation.
• Programmable & Open Software: The instrument is typically controlled via SCPI commands or via APIs in environments like Python, LabVIEW, or C++. While manufacturers offer graphical software (e.g., Keysight's PathWave, EA's EA-Studio), it is designed to control the instrument's general functions, not just battery cycling. You build your own test sequences. This offers unlimited freedom but requires more programming expertise.
• Power-Centric Design: These units are designed to be scaled by power. Need more current or voltage? You can often connect units in parallel or series (master-slave) to achieve the      exact rating you need. This makes them ideal for testing large battery packs or high-power modules with a single, powerful channel.
• System Integration: They are built to be the core of a complex test system. With standard communication interfaces (Ethernet, GPIB, USB) and analog/digital I/O ports, they can be      easily integrated with environmental chambers, data acquisition systems, and safety interlocks.

Best For:

• R&D and Validation Labs: Testing novel battery designs, prototyping, and validating performance under real-world, dynamic conditions.
• Testing Complete Systems: Evaluating entire battery packs, including their BMS and associated power electronics.
• Multi-Purpose Labs: Labs that need one instrument to test batteries one day and a motor inverter the next.
• Engineers who need to replicate complex, real-world profiles (e.g., automotive drive cycles).
• Users who require the ability to emulate sources and sinks.

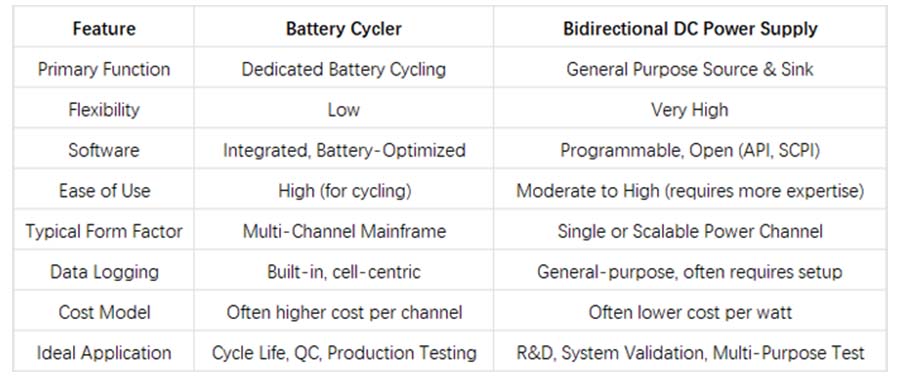

Head-to-Head Comparison Table

How to Make the Right Choice for Your Lab

Ask yourself these questions:

1.       What is my primary application?

o    "We only test individual cells for cycle life and capacity." → A Battery Cycler is likely your best bet for its simplicity and throughput.

o    "We test packs, emulate batteries for BMS development, and also work on other power electronics." → A Bidirectional DC Power Supply is the clear, versatile winner.

2.       Who will be using the instrument?

o    "Mostly technicians following standard procedures." → The turn-key nature of a Cycler is advantageous.

o    "PhD engineers and researchers developing new tests." → The programmability of a Bidirectional Supply is a necessity.

3.       What about future needs?

o    A Cycler is a specialist. If your needs change, it may become obsolete.

o    A Bidirectional DC Power Supply is a generalist. It can be adapted and scaled to meet unforeseen future challenges, protecting your investment.

The Final Verdict

There is no "better" instrument—only the right instrument for the job.

·  Choose a dedicated battery cycler when your needs are focused, high-volume, and require operational simplicity for standardized cycling tests.

·  Choose a bidirectional DC power supply when your work is in research, validation, or system-level testing, and you require maximum flexibility, programmability, and the ability to handle a wide array of applications beyond just cycling.

By carefully evaluating your current workflows and future goals against these distinctions, you can invest with confidence, ensuring your lab is equipped not just for today's tests, but for tomorrow's breakthroughs.
