Features

■ 8-channel synchronous power analysis

■ Accuracy: 0.03% * display + 0.05% * range

■ Sampling rate: 2MS/s

■ Maximum voltage 1000V (DC1500V)

■ Rich specifications: 30A (standard)/5A, standard BNC interface, optional sensor

■ Motor measurement: optional motor measurement channel

■ LCD display: full touch screen experience, custom display interface entries, multiple wave displays

■ Data storage: custom data storage items, CSV format export, local storage/screenshot saving

■ Perfect size Standard 4U height, suitable for integration

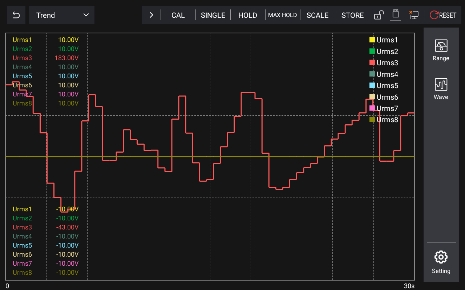

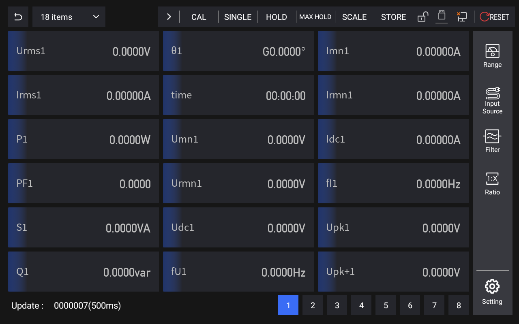

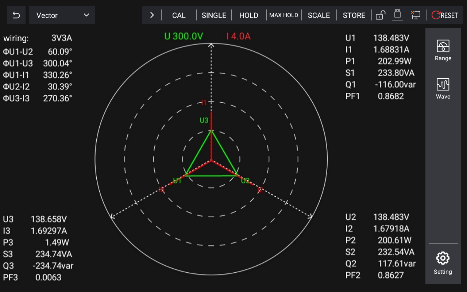

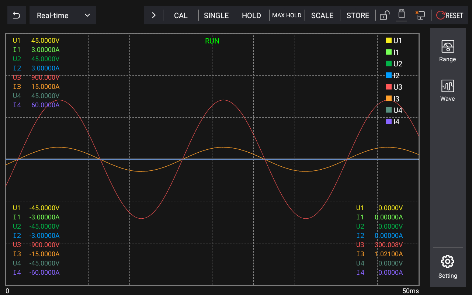

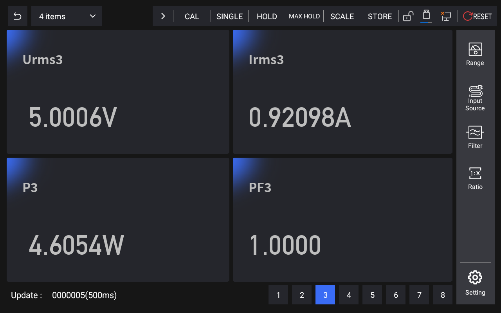

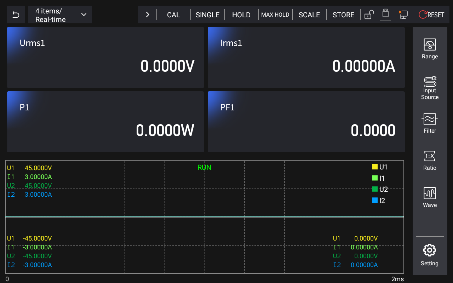

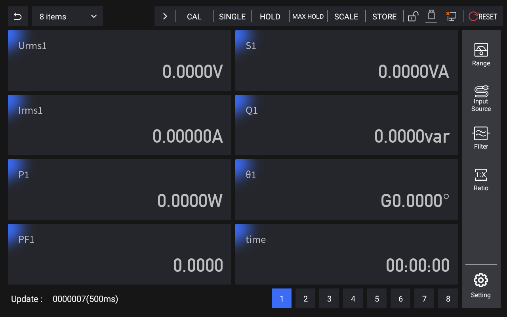

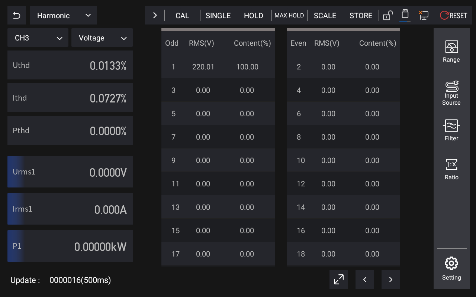

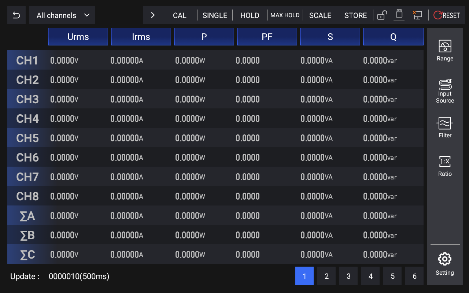

Display Interface

Applications

Motor frame, variable frequency motor power consumption and mechanical efficiency test

Measurement of electrical performance of electric vehicles, OBC, charging stations

Renewable energy power, efficiency, and harmonic analysis

Switching power supply power/harmonic/inrush current analysis.

Harmonic analysis of power electronics and transformers

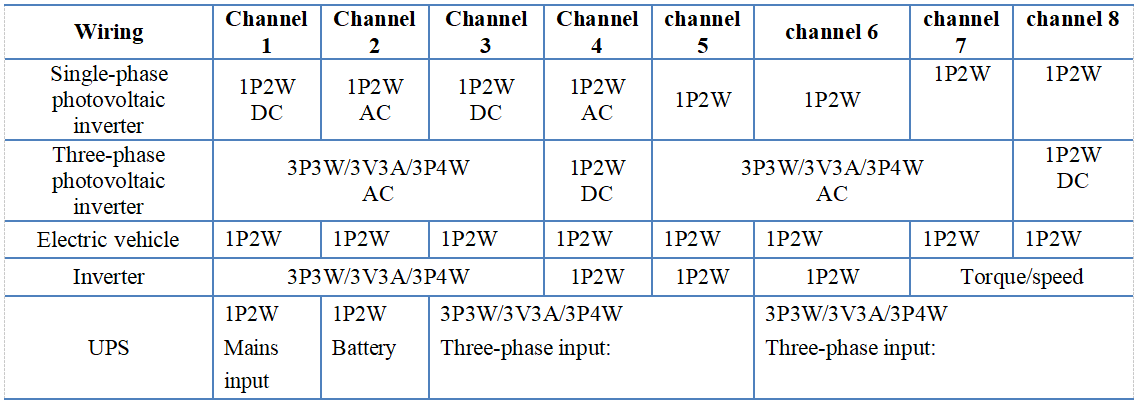

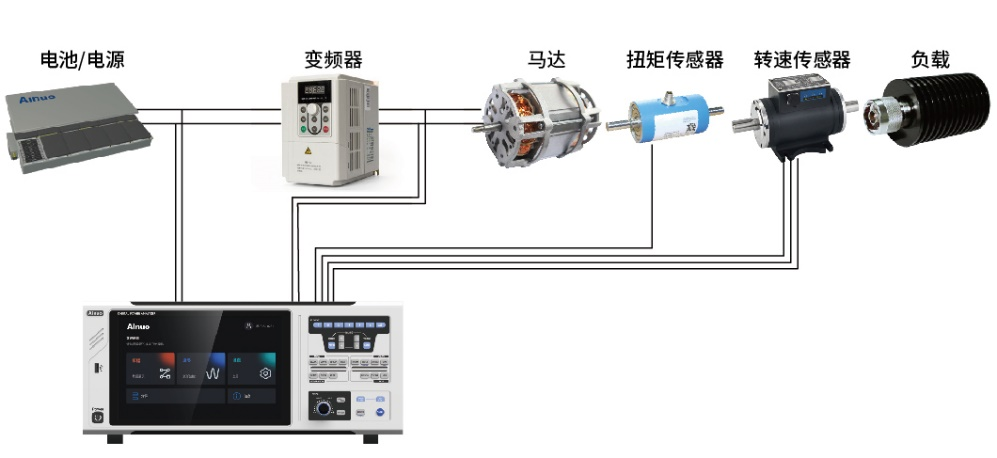

Channel Configuration

Comply with GB/T 18488-2024 Drive Motor System for Electric Vehicles

Up to 4 motors can be measured simultaneously, supporting 500th harmonic and distortion analysis

Pulse signal and analog signal speed/torque sensors (optional)

Torque, speed, mechanical power, efficiency, electric phase angle measurement (optional)

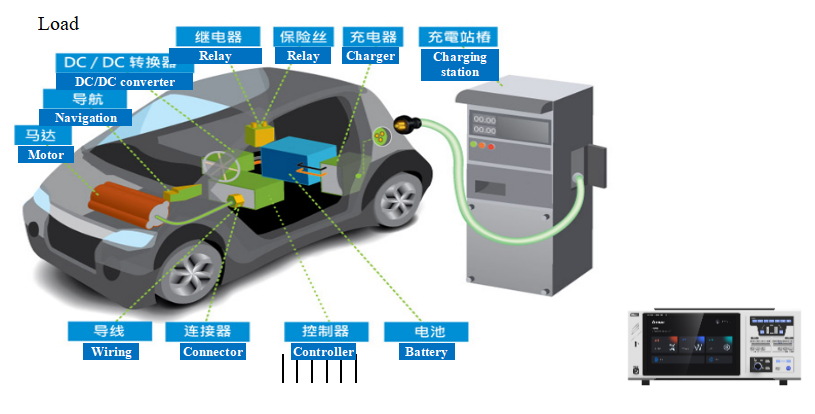

Electric vehicle electrical performance measurement

■ Up to 8 channels can be measured simultaneously, and multiple parameters can be detected: OBC, charging stations efficiency test, battery charging/discharging performance, power supply conversion performance, motor performance, etc.

■ Support high voltage/current measurement, maximum voltage 1000V (DC1500V), maximum current 30A, expandable for larger current sensors

Accuracy: 0.03% x display + 0.05% x range, power resolution 0.1mW

Measure signal ripple ratio, three-phase imbalance ratio, power factor, fundamental reactive power etc.

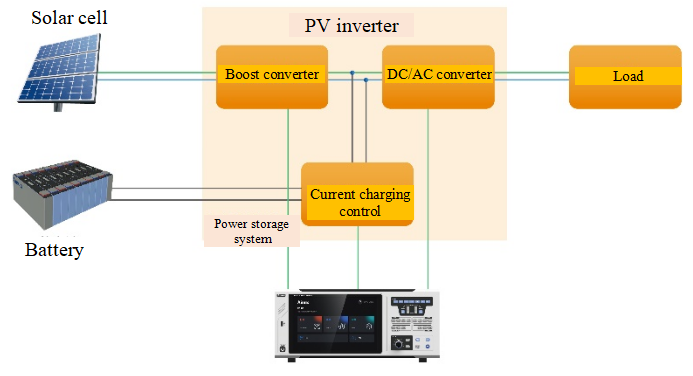

Renewable energy measurement

GB/T 37409-2019 Testing specifications for photovoltaic grid-connected inverter

Comply with GB/T 34133-2023 Testing Code for Power Conversion System of Energy Storage System

Support high voltage/current measurement, maximum voltage 1000V (DC1500V), maximum current 30A, expandable for larger current sensors

Harmonic measurement and flicker measurement based on standard IEC

Up to 500th harmonic and distortion analysis

Simultaneous measurement of bidirectional power for buying and selling electricity

Power supply/UPS power measurement

■ Current: 0~30A/5A.

■ Power bandwidth DC, 0.5Hz~1MHz

Simultaneous measuring input/output (single-phase, three-phase) power, monitoring battery charge/discharge.

Automatic efficiency calculation

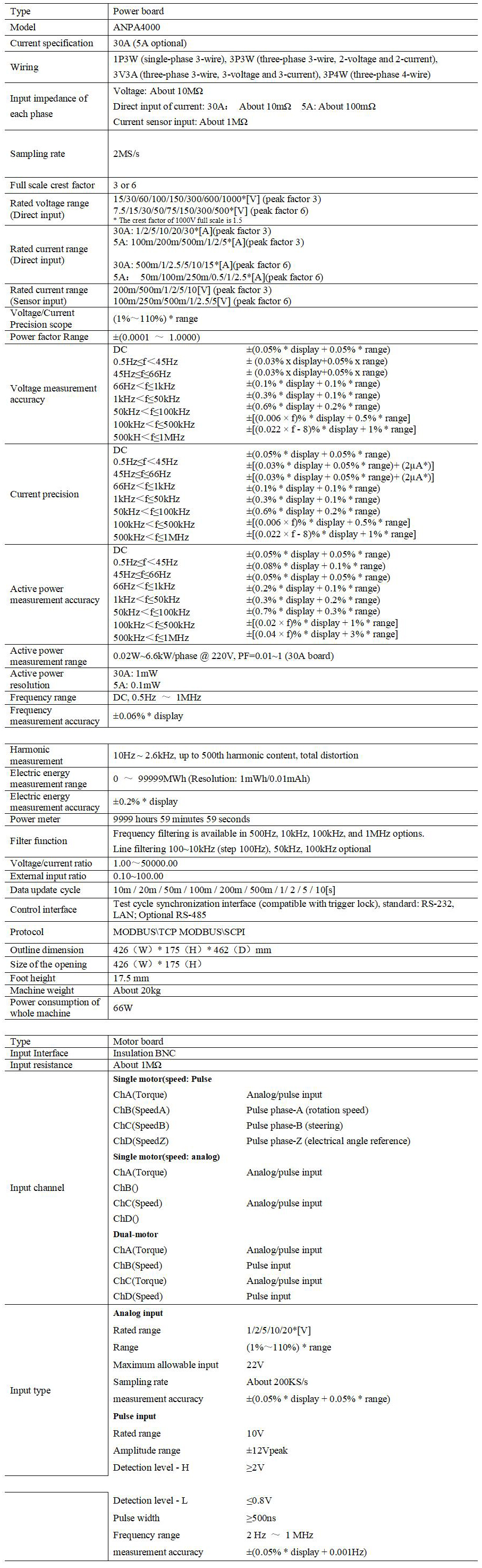

Specification

* The above specifications are subject to change without prior notice.

■ [Condition] Temperature: 23±5℃, humidity: 30%~75%RH, input wave: Sine wave, common-mode voltage: 0V, Line filter: OFF, Frequency filter: OFF, Power factor λ: 1, peak factor: 3. After preheating. After zeroing or changing the range in wiring state.

■ The f in the measurement accuracy formula is the frequency in kHz.

■ When the data update rate is 10ms, 20ms, 50ms, 100ms, all accuracies are increased by 0.03% x display.

■ Impact due to change to Temp. after resetting or changing the scale:

Plus 0.02% x scale/℃ for voltage DC accuracy, 500μA/℃ for current DC accuracy, 50μV/℃ for external sensor DC accuracy, product of voltage impact and current impact for power DC accuracy.
