How to Select a Cost-Effective Electrical Safety Analyzer for Your Project?

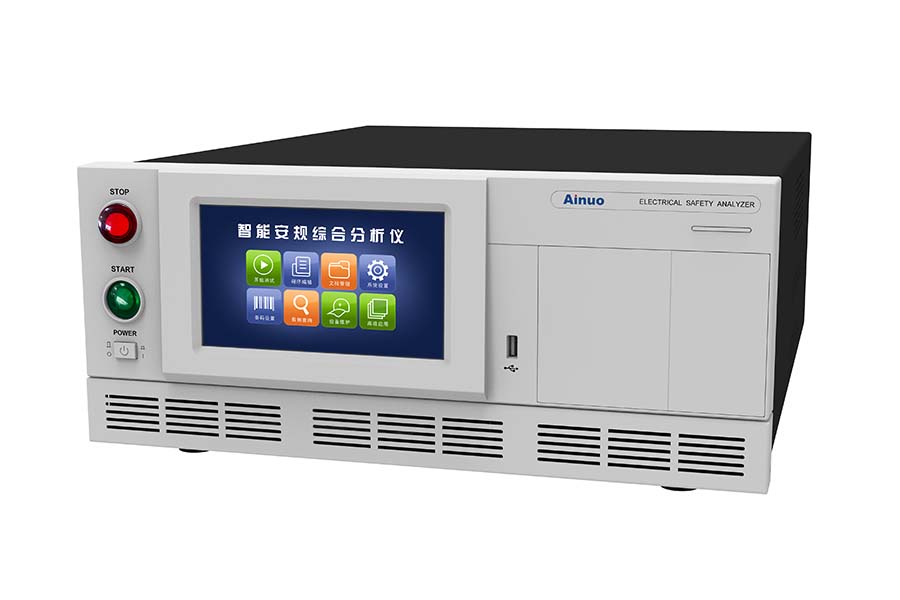

Selecting a cost-effective electrical safety analyzer (ESA) is about balancing your project's specific requirements with your budget. A "cost-effective" choice isn't necessarily the cheapest; it's the one that delivers the precise capabilities you need without paying for features you'll never use.

Here is a comprehensive guide to help you make the right selection.

Step 1: Define Your Project's Core Requirements

This is the most critical step. A clear understanding of your needs will immediately narrow your options and prevent overspending.

1. Applicable Standards & Compliance Testing:

What standards must your device comply with? This dictates the essential tests your analyzer must perform.

• Medical Devices (Most Common): IEC 60601-1 is the global standard. This requires tests like:
• Dielectric Withstand (Hipot): The cornerstone test. What is the maximum voltage you need? (e.g., 4kV AC, 5kV DC?).
• Insulation Resistance (IR): Typically, at 500V DC. What is the minimum acceptable value? (e.g., 50 MΩ, 100 MΩ?).
• Ground Bond (Earth Bond): High-current, low-voltage test (e.g., 25-40A AC). Is 30A sufficient, or do you need 40A?
• Leakage Currents: Touch current (patient & operator), earth leakage, and mains on applied parts. This is often the most complex part of the standard.
• Laboratory Equipment (IEC 61010): Similar tests but with different limits and often less stringent leakage current requirements.
• IT/Office Equipment (IEC 60950/62368): Generally requires lower test voltages and simpler leakage measurements.
• Household Appliances (IEC 60335): Focus on basic hipot and ground continuity.

2. Device Under Test (DUT) Type:

• Patient-Connected Medical Devices: Require the most comprehensive analysis, including applied part leakage tests.
• Line-Powered (Mains-Powered) Equipment: Need full hipot, IR, ground bond, and leakage tests.
• Battery-Powered Equipment (with charger): May only need testing on the power supply/charger unit.
• Class I Equipment: Has a protective earth ground (requires ground bond test).
• Class II Equipment: Double-insulated, no ground pin (does not require a ground bond test).

3. Test Environment & Throughput:

• R&D Lab/Design Verification: Requires flexibility, deep analysis, and data logging. Accuracy and programmability are key.
• Production Line/Quality Control: Requires speed, robustness, and simplicity. Look for pass/fail limits, barcode scanning, and integration with automation (PLC I/O).
• Service & Repair Depot: Requires portability, ease of use, and quick verification.

Step 2: Evaluate Key Analyzer Features & Match to Your Needs

Now, translate your requirements into specific analyzer capabilities.

Step 3: The "Cost-Effectiveness" Decision Matrix

Use this table to guide your search based on your primary use case.

Step 4: Practical Checklist for Selection

1. Create a Test Specification Sheet: List every test (Hipot, IR, Ground Bond, Leakage types), the required voltages, currents, limits, and accuracy from your standard.
2. Get Demos: Contact distributors and ask for a live (or virtual) demo using one of your own devices. This reveals the true usability of the instrument.
3. Ask About Total Cost of Ownership (TCO):
• Initial Purchase Price
• Calibration Cost & Cycle: How much does annual calibration cost? Can it be done locally?
• Software Updates: Are they free? Is there a subscription?
• Warranty & Support: What is the warranty period? Is local technical support available?
4. Consider Future-Proofing (Gently): Will your product line expand to include different device classes in the next 5-7 years? If so, a slightly more capable unit now may be cheaper than buying a new one later.
5. Evaluate Used/Refurbished Analyzers: For well-known brands, a certified refurbished analyzer from a reputable dealer can be an excellent cost-saving option. Ensure it comes with a fresh calibration and warranty.

Summary: The Golden Rule

The most cost-effective electrical safety analyzer is the one with the lowest specification that fully and reliably meets your project's compliance and operational needs.

By meticulously defining your requirements and matching them to the analyzer's features, you can avoid the two most common mistakes: overspending on an over-featured "flagship" model or underspending on an incapable tool that risks non-compliance and product failure.
