How Do Bidirectional DC Power Supplies Differ from Traditional Power Sources?

As modern electrical systems evolve toward greater efficiency, flexibility, and intelligence, the demand for advanced power conversion technologies continues to rise. One of the most transformative innovations in this area is the bidirectional DC power supply. These devices are increasingly used in EV charging systems, battery R&D, renewable energy integration, and energy storage applications, where precise and reversible energy flow is critical.

But how exactly do bidirectional DC power supplies differ from traditional unidirectional power sources? Why are they essential for next-generation power electronics? And what makes their internal operation fundamentally different?

This article takes a deep technical dive into the distinctions between bidirectional and traditional DC power supplies, including their internal architecture, control mechanisms, and real-world performance characteristics.

1. Direction of Power Flow: The Primary Difference

Traditional DC Power Supplies: One-Way Power Flow

    2) Source Mode Only: It can output a controlled DC voltage or current to power external devices.

    3) Energy Dissipation During Testing: When testing devices that generate power (e.g., motors or chargers), energy is typically wasted using a resistive load.

    4) No Ability to Absorb Power: If the connected device pushes energy back, the traditional supply must protect itself or shut down.

    5) Traditional supplies are therefore appropriate for loads that only consume power, such as sensors, circuits under development, and fixed test setups.

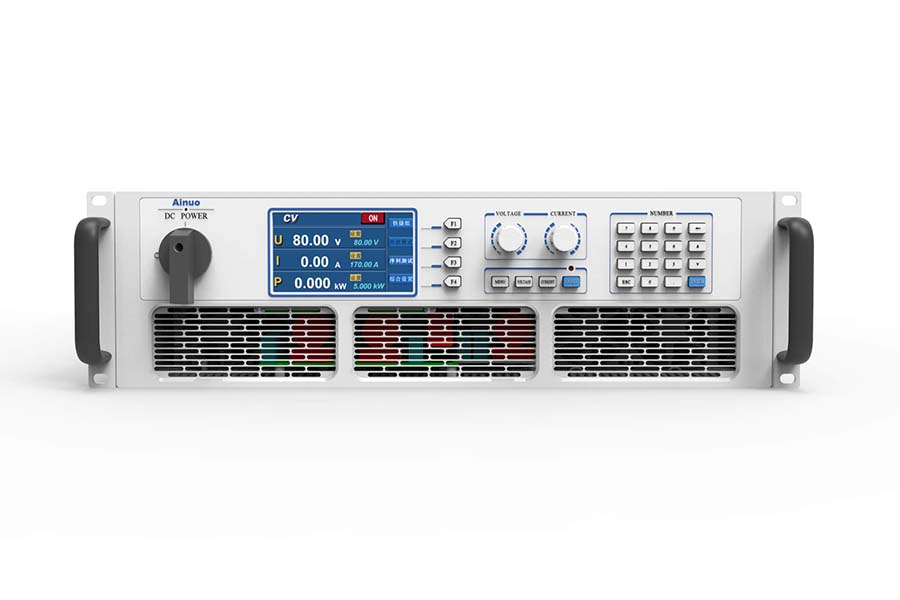

Bidirectional DC Power Supplies: Dual-Direction Power Flow

Bidirectional DC power supplies support two-way energy flow:

    1) Source Mode: Provide DC power to a device, like a traditional supply.

    2) Sink Mode (Regenerative): Absorb DC power from the device under test and convert it back into AC to feed the grid.

    3) Dynamic Reversibility: Power flow direction can change rapidly based on load conditions.

This makes them ideal for testing and operating systems that both consume and generate power, such as:

    1) EV batteries and propulsion systems

    2) Solar inverters

    3) Battery energy storage systems (BESS)

    4) DC-DC and DC-AC converters

    5) Motor drives

The difference in power flow capability is the foundation of all other differences discussed below.

2. Internal Architecture and Converter Topologies

Traditional DC Power Supply Architecture

A typical unidirectional DC power supply consists of:

    1) AC-DC Rectifier

    2) Power Factor Correction (optional)

    3) DC-DC Converter (buck, flyback, etc.)

    4) Feedback Control Loop

    5) Passives for Filtering and Output Stability

All stages are designed to push power from input to output only.

Bidirectional Power Supply Architecture

Bidirectional power supplies use more advanced and symmetrical converter topologies, such as:

    1) Dual Active Bridge (DAB)

    2) Bidirectional Buck-Boost Converter

    3) Half-Bridge or Full-Bridge Bidirectional DC-DC Designs

    4) Four-Quadrant Power Stages

Unlike traditional converters, these topologies allow:

    1) Power flows from primary to secondary, and

    2) Power flows from secondary to primary

All controlled through phase-shift modulation, symmetric switching, and bidirectional current regulation.

Isolation and High-Frequency Transformers

Many bidirectional designs include galvanic isolation using a high-frequency transformer, enabling:

    1) Safety isolation

    2) High power density

    3) EMI reduction

    4) Flexible input/output voltage ranges

This is especially critical in EV testing, renewable systems, and battery labs where safety and multi-stage systems are involved.

3. Control Strategies and Feedback Loops

Traditional Supplies

A unidirectional supply uses a single feedback loop controlling voltage or current:

    1) CV (Constant Voltage) mode

    2) CC (Constant Current) mode

The control loop assumes the load always draws power, rather than pushing it back.

Bidirectional Supplies

Bidirectional units require much more complex control mechanisms, including:

    1) Bidirectional current sensing

    2) Dual-mode PID feedback loops for source and sink operation

    3) Real-time power flow detection

    4) Dynamic switching between sourcing and sinking

    5) Grid-synchronized AC feed-in control (for regenerative units)

Advanced digital control chips or DSPs handle these tasks with microsecond precision.

This is what allows a bidirectional DC power supply to:

    1) Transition smoothly between modes

    2) Recover energy efficiently

    3) Maintain stable operation during regenerative events

    4) Simulate batteries and dynamic loads with high fidelity

4. Energy Efficiency and Regeneration

Traditional DC Power Supplies

When used for discharging batteries or testing devices that generate power:

    1) Energy is burned off as heat using external load banks

    2) Large cooling systems are needed

    3) Efficiency is low

    4) Operating costs increase, especially for high-power labs

Bidirectional DC Power Supplies

Bidirectional supplies offer regenerative capability:

    1) Absorbed energy is fed back to the AC grid

    2) Heat dissipation is dramatically reduced

    3) Energy recycling efficiency often exceeds 90%

    4) Test benches can operate for long hours at a lower cost

This regenerative capability is one of the biggest operational differentiators.

5. Load Simulation and System-Level Testing

Traditional Power Supplies

A unidirectional supply cannot:

    1) Simulate a battery

    2) Emulate the dynamic behavior of an EV powertrain

    3) Model regenerative braking

    4) Test bidirectional converters

They are limited to providing power to loads with relatively simple behavior.

Bidirectional Power Supplies

Bidirectional units excel at acting as:

    1) Battery simulators

    2) Regenerative electronic loads

    3) DC bus emulators

    4) Energy storage system simulators

    5) Solar array simulators (when combined with software models)

This enables high-fidelity system testing, such as:

    1) EV fast charger validation

    2) BMS development

    3) Power conversion testing

    4) Microgrid power-flow control verification

    5) Bidirectional converter stress testing

These capabilities are impossible with traditional power supplies.

6. Protection and Safety Systems

Traditional Supplies

Protection mechanisms typically include:

    1) Overvoltage protection

    2) Overcurrent protection

    3) Overtemperature shutdown

    4) Short-circuit protection

Bidirectional Supplies

In addition to all traditional protections, BDPS units require:

    1) Reverse-current protection

    2) Regenerative over-power protection

    3) Anti-islanding protection for grid-connected systems

    4) Current reversal limiters

    5) Bidirectional soft-start and soft-stop control

These ensure safe transitions between source and sink operations.

7. Applications and Real-World Usage

Traditional DC Power Supplies Are Ideal For:

    1) Electronics prototyping

    2) Low-cost labs

    3) Fixed loads

    4) Sensor powering

    5) Simple consumer electronics testing

Bidirectional DC Power Supplies Are Essential For:

    1) Electric vehicle battery testing

    2) EV fast charger testing and validation

    3) Renewable energy simulation

    4) Energy storage system integration

    5) DC microgrid research

    6) Motor and inverter regenerative testing

    7) Converter and inverter R&D

    8) High-power cycling applications

These are rapidly growing fields requiring precise control and energy recovery.

Conclusion

Bidirectional DC power supplies differ from traditional power sources in nearly every critical aspect—including architecture, control strategy, energy flow direction, efficiency, and application capability. While traditional DC power supplies are suitable for simple, unidirectional loads, modern systems such as EVs, renewables, and energy storage require equipment capable of handling dynamic, two-way energy flow.

As industries continue to move toward electrification, smart grids, and renewable integration, the importance of bidirectional power conversion will only grow. Engineers, researchers, and developers who work with advanced power systems will increasingly rely on bidirectional DC power supplies for accurate testing, efficient energy use, and intelligent system-level control.
