Overview

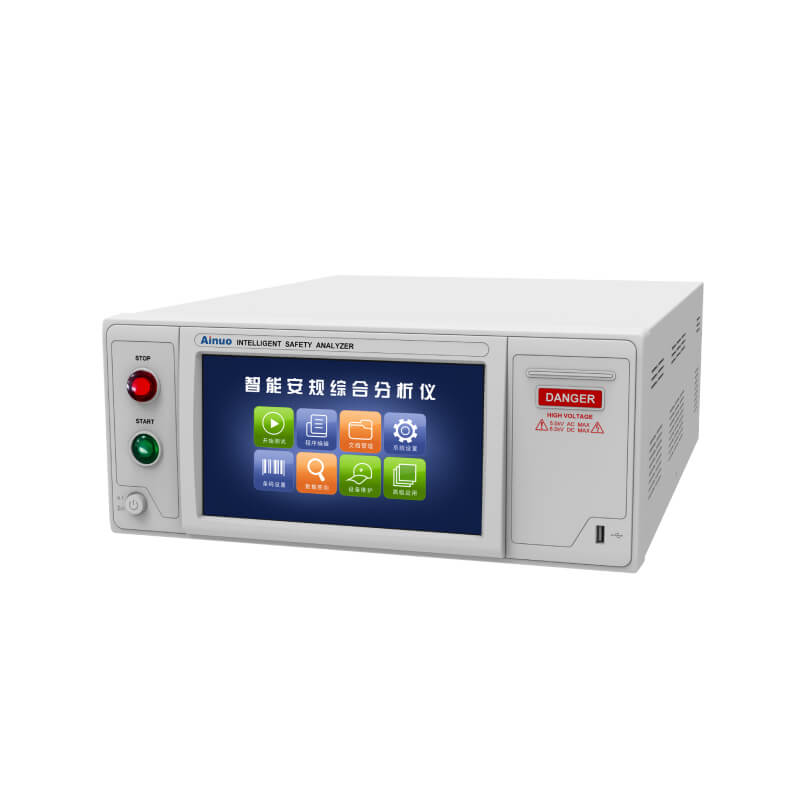

The Ainuo AN1651H-M(F)/AN1640H-M(F)/AN1620H-M(F) is an intelligent electrical safety analyzer designed primarily for medical electrical equipment testing and safety compliance verification. Its six-in-one testing functions include AC withstand voltage, insulation resistance, ground bond, leakage current, power, and startup testing. Support for multiple medical-device measurement networks, multi-channel switching, automated test sequences, touchscreen operation, and MES data integration helps manufacturers and laboratories streamline safety verification, improve test repeatability, and manage compliance records.

Features

• Six-in-one: ACW/IR/GB/LC/PW/ST
• Legal: Meet the safety test requirements of IEC60601 Medical electrical equipment
• Convenience: automatic programming, multi-network and multi-channel switching, automatic test of one-time wiring
• Informatization: PC/SRS software, local data management, MES database connection

Applications

• Medical electrical equipment (IEC60601-1:2012)
• Safety requirements for electrical equipment for measurement, control, and laboratory use(IEC61010-1)

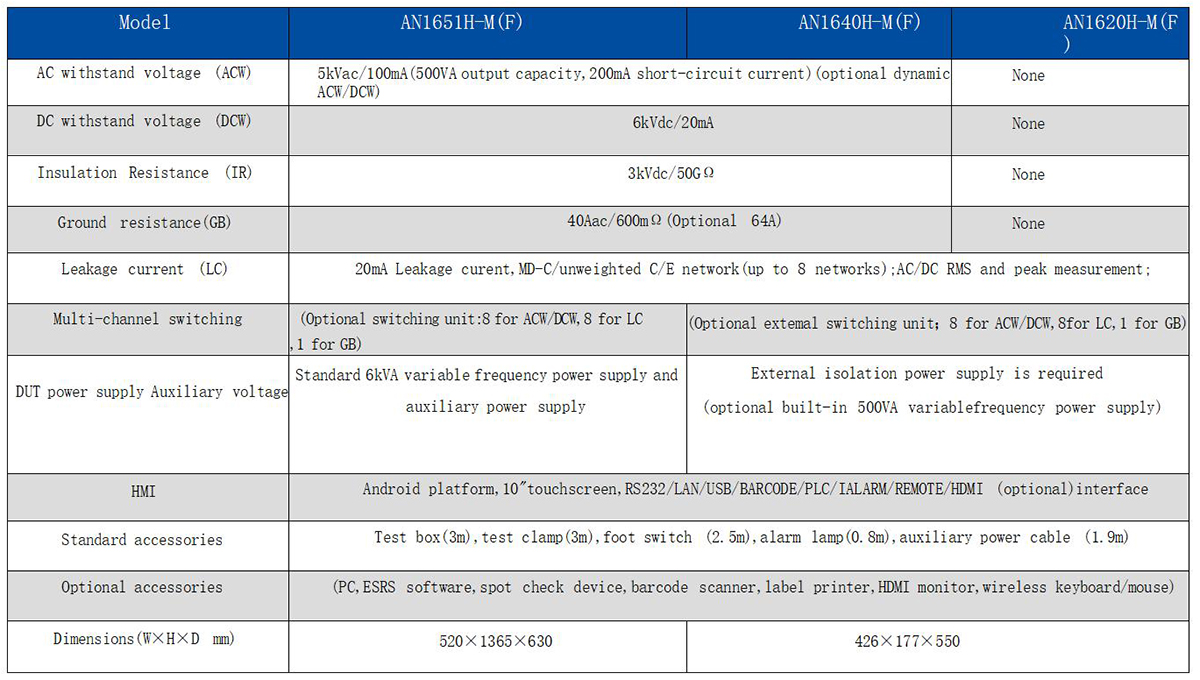

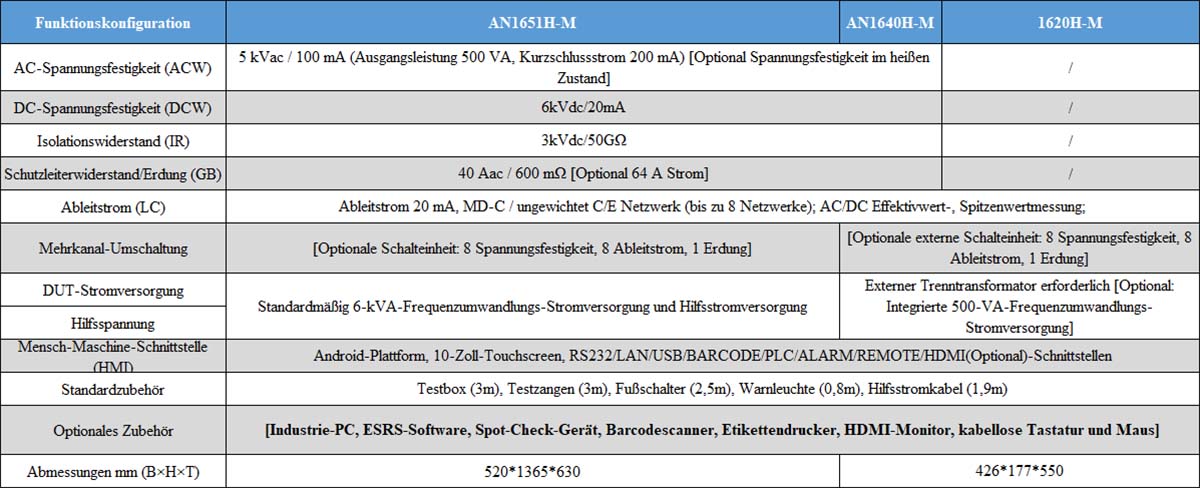

Specifications

• Specially designed for the standard test of safety of medical electrical equipment, simple, one-click completion of all tests after one-time wiring.
• Multiple MDs: Standard medical electrical equipment(GB9706.1-2020/IEC60601-1:2012) MD network, up to 8 leakage MDs options, meeting various industry test standard requirements;
• Multi-channel switching: Standard 8-channel ACW/DCW/IR switching. Set HV/Off for the network power supply and patient connection. Set On/Off for PE, case, patient connection, signal l/O, display screen, keyboard, etc. Standard 1-channel GB test.
• Leakage contact current: meets the requirements for the test of ground leakage current, contact current, patient leakage current, and patient auxiliary current.
• Two shortcuts: The setting for the LC test is complex. This analyzer provides manual/auto settings modes, with unique and quick operation to simplify the complexity and reduce the difficulty of operation for users.

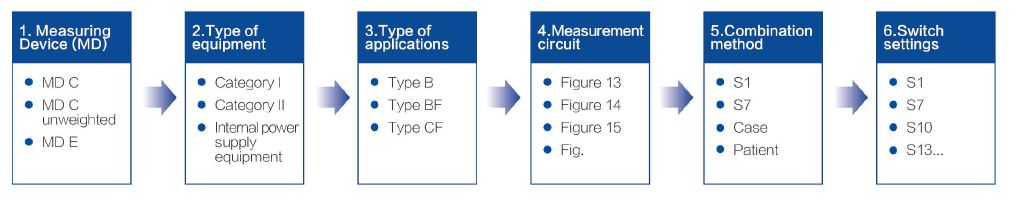

• 6-step easy operation: 10"touchscreen, manual/auto LC test, illustrated with text.

• A combination of the safety analyzer and the multi-channel switching unit, strong scalability, and one-click completion of all tests after one-time wiring.
