Overview

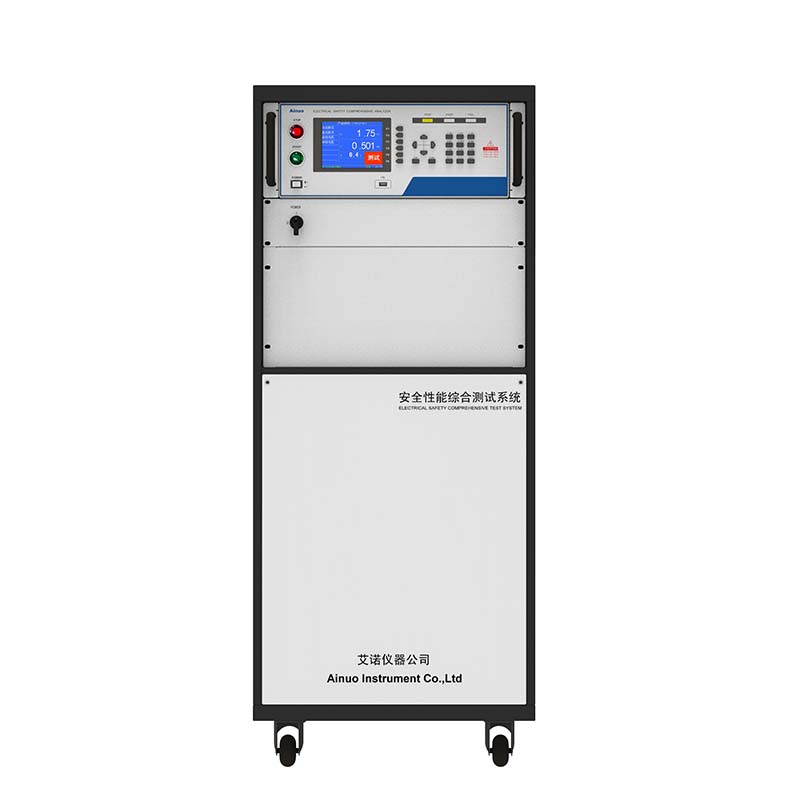

Ainuo AN9640H(F)/AN9651H(F)/AN9651HC(F) is a multifunctional electrical safety tester designed for high-efficiency safety and performance testing in manufacturing and laboratory environments. Its seven-in-one testing functions cover AC withstand voltage, DC withstand voltage, insulation resistance, ground bond, leakage current, power, and startup testing. With high measurement accuracy, parallel testing capabilities, and interfaces for automated control and data management, it helps manufacturers streamline quality inspections and integrate electrical safety testing into production lines.

Features

• Seven-in-one: ACW/DCW/IR/GB/LC/PW/ST

• High precision: 1% accuracy for electrical safety test, 0.2% accuracy for power test

• High speed: GB and ACW/DCW/IR in parallel, fast switching, fast test

• Automation: RS232/LAN/USB/BARCODE/PLC/ALARM/REMOTE interface

• Informatization: Optional industrial PC and ESRS software for data storage and MES integration

Applications

• Safety of household and similar electrical appliances(IEC60335-1)

• Audio and video, information technology, and communication technology equipment(IEC62368-1)

• Safety requirements for electrical equipment for measurement, control, and laboratory use(IEC61010-1)

• Luminaires(IEC60598-1)

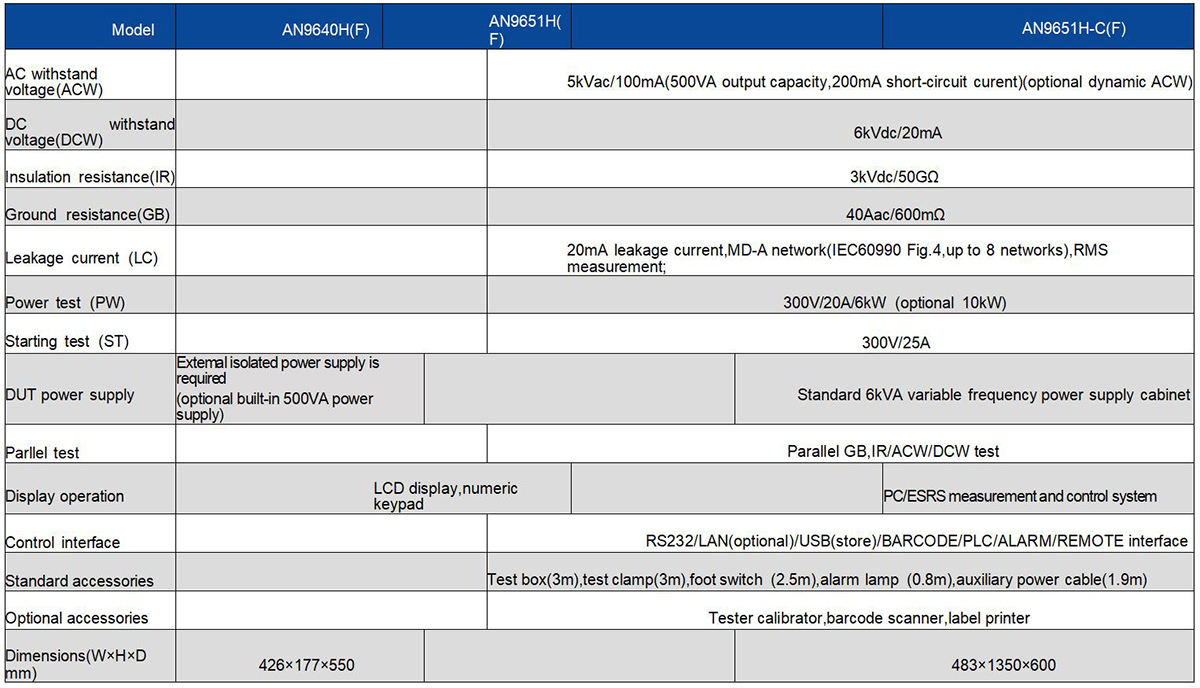

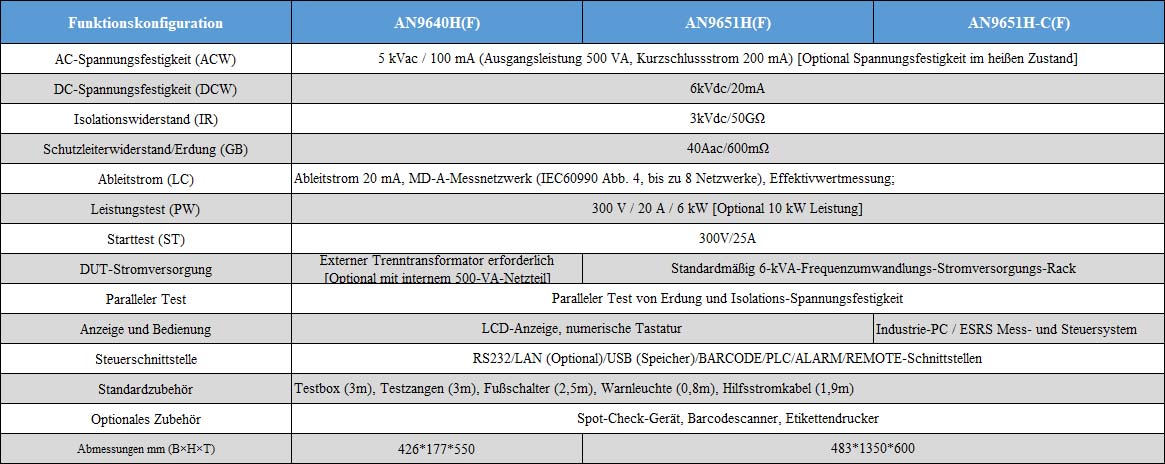

Specifications

Complete all tests with just one click and one wiring

Multiple start modes: button on front panel/remote control/barcode scanner/grounding clamp;

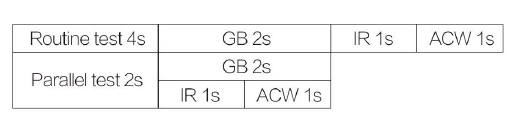

Parallel GB, IR/ACW/DCW Test

With parallel GB, IR/ACW/DCW test, AN9640significantly reduces the testing time, doubling the production capacity of the production line.

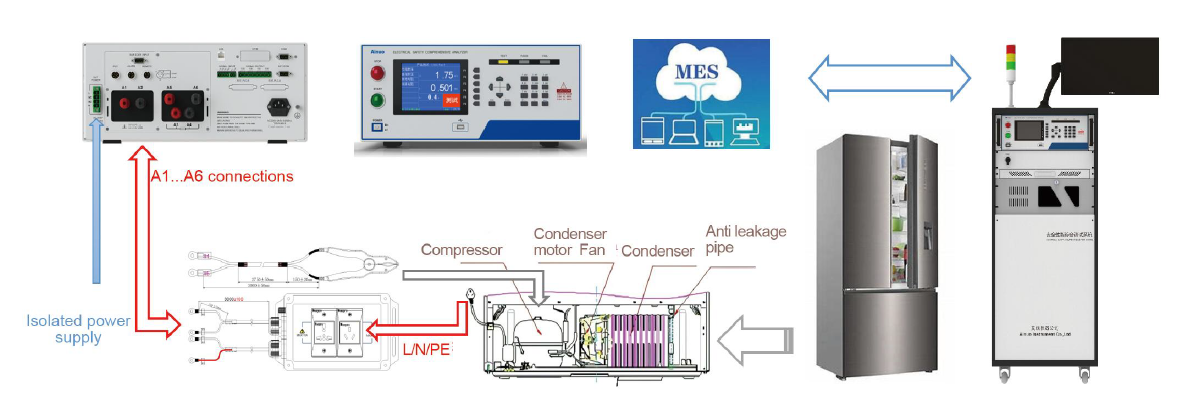

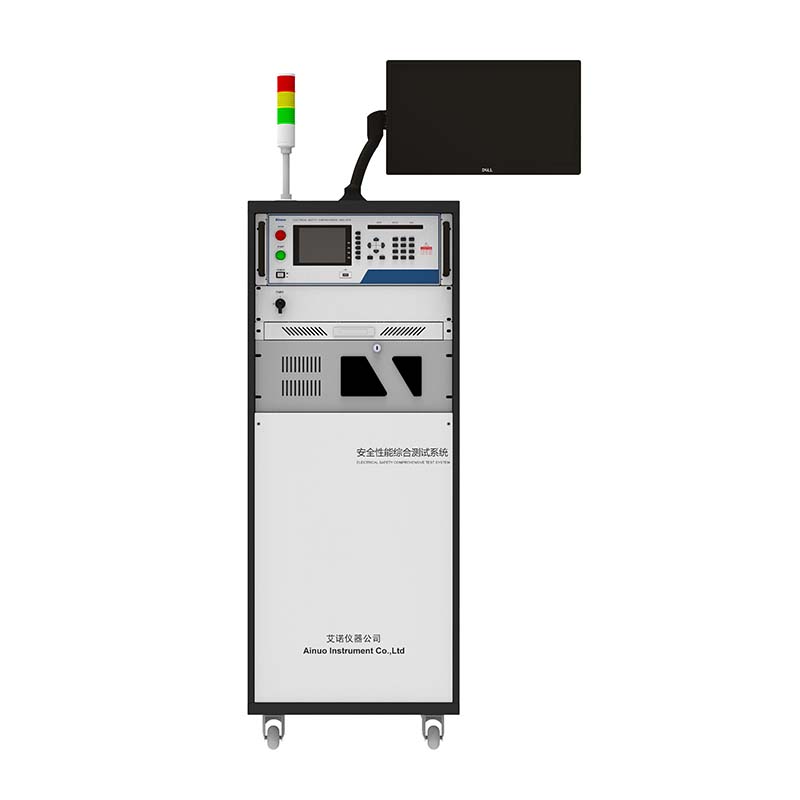

Build an information test platform with an industrial PC and ESRS measurement and control software.

1. Barcode scanning/barcode recognition/calling programs/starting test;

2. Local store/filter/export;

3. Optional MES connection, active data upload, query upload, and breakpoint continuation; downloading test programs from the server; multiple database connections, including SQL Server, Oracle, MySQL, and other database intermediate table connections, Modbus TCP connection, Web API connection, as well as local TXT text and Access database connection.
