Overview

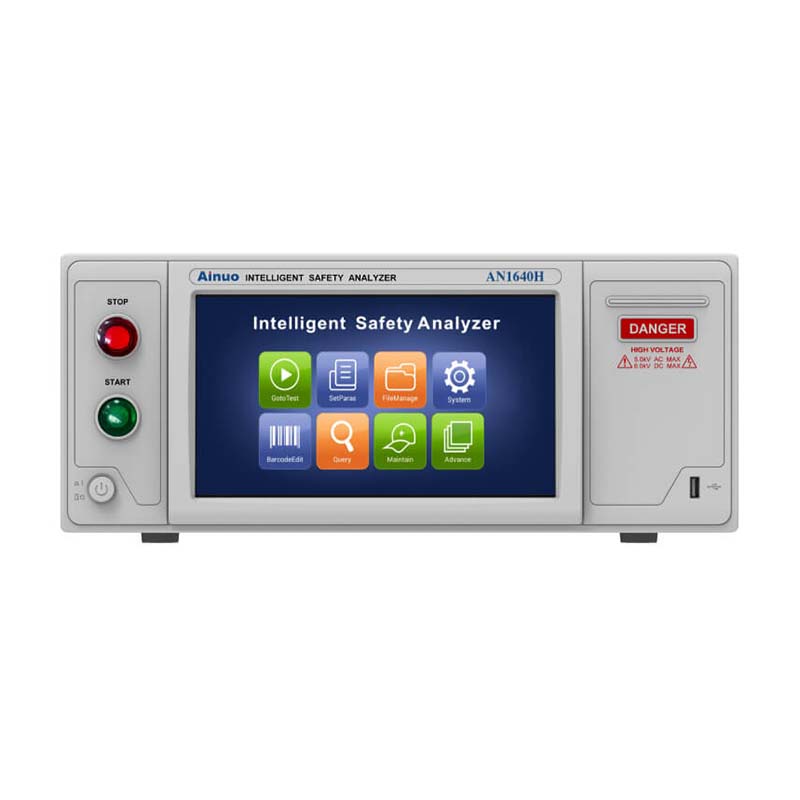

Ainuo Instrument Co., Ltd has been dedicated to the research and development of electrical safety analyzers for over 30 years, and has participated in drafting 16 national standards and industry calibration regulations for safety analyzers. The AN1640H (F) Series Intelligent Safety Analyzer features complete functions, high precision, high speed, automation informatization, and intelligence, meeting the comprehensive testing needs of fast cycle, multi-variety, and informatization safety performance of single-phase and three-phase household appliances, charging piles, and similar electrical product production lines.

Features

• Eight-in-one: ACW/DCW/IR/GB/LC/PW/ST/Loop.
• High precision: 1% accuracy for the safety tester, 0.2% accuracy for the power.
• High speed: GB and ACW/DCW/IR in parallel, LC and PW in parallel.

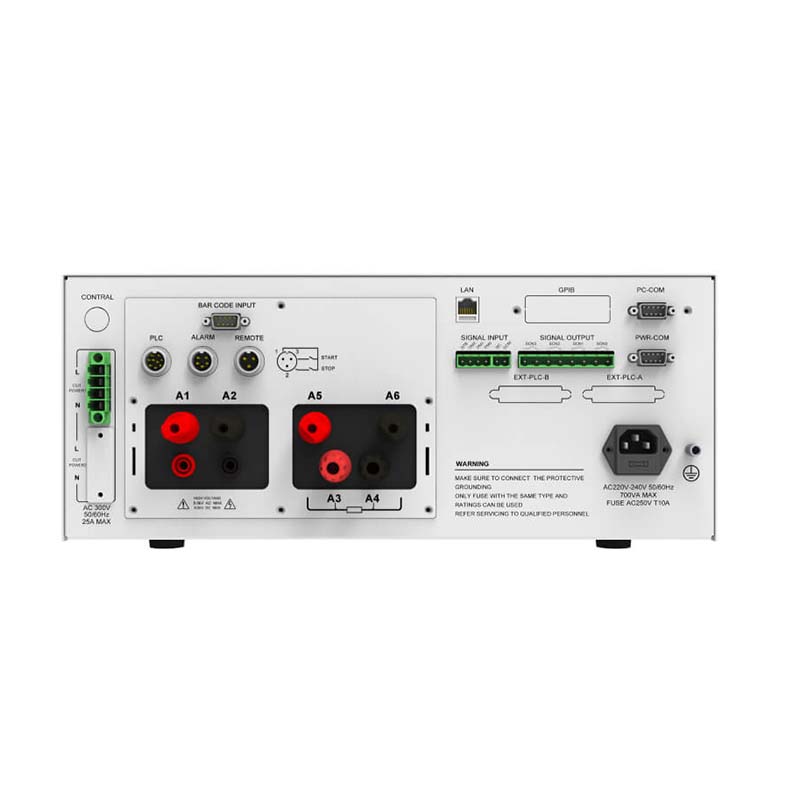

• Automation: RS232/LAN/USB/BARCODE/PLC/ALARM/REMOTE/HDMI interface.
• Intelligent: Android platform, 10"touchscreen, scene recognition, intelligent matching, and automatic test.

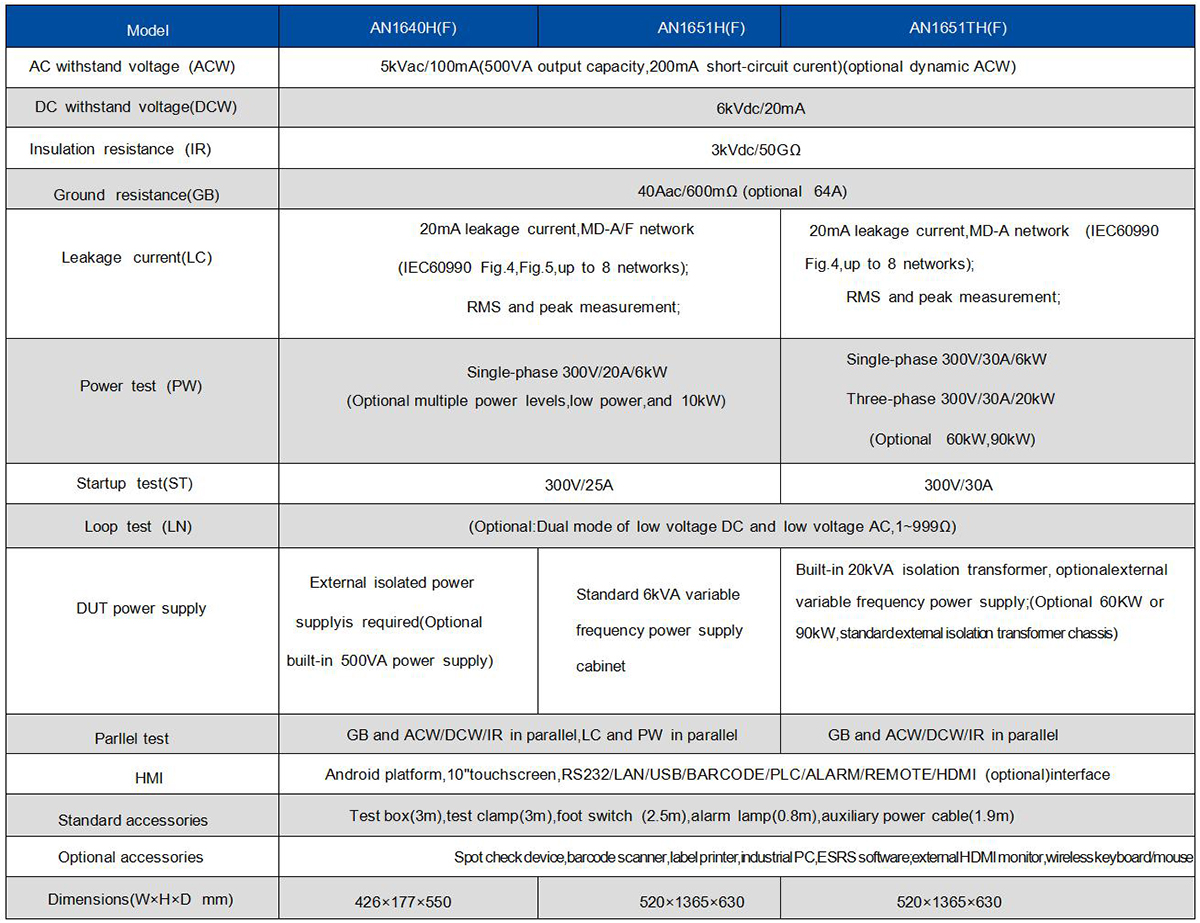

Specifications

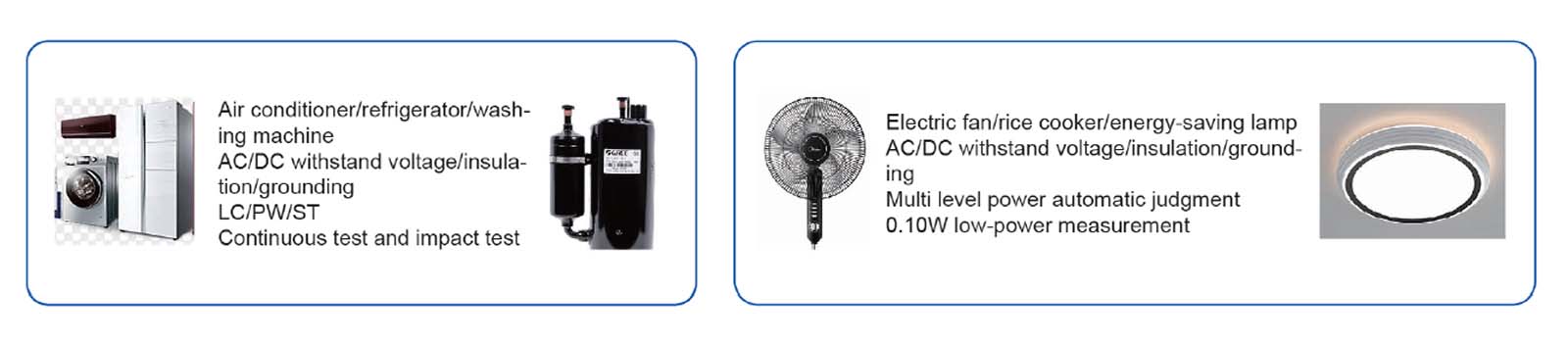

Applications

• Safety of household and similar electrical appliances(GB4706.1/IEC60335-1)
• Audio and video, information technology, and communication technology equipment(GB4943.1/IEC62368-1)
• Safety requirements for electrical equipment for measurement, control, and laboratory use(GB4793.1/IEC61010-1)
• Luminaires(GB/T7000.1/IEC60598-1)
• Electric vehicle conductive charging system(GB/T18487.1)

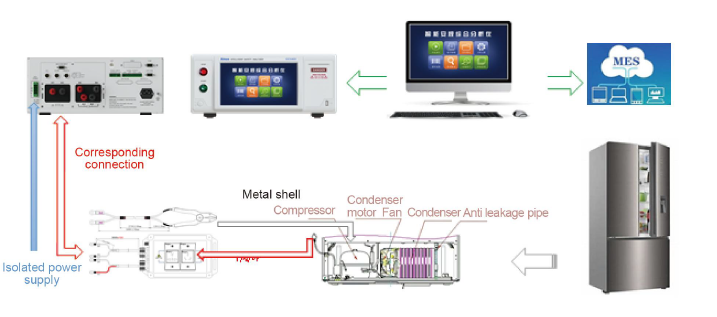

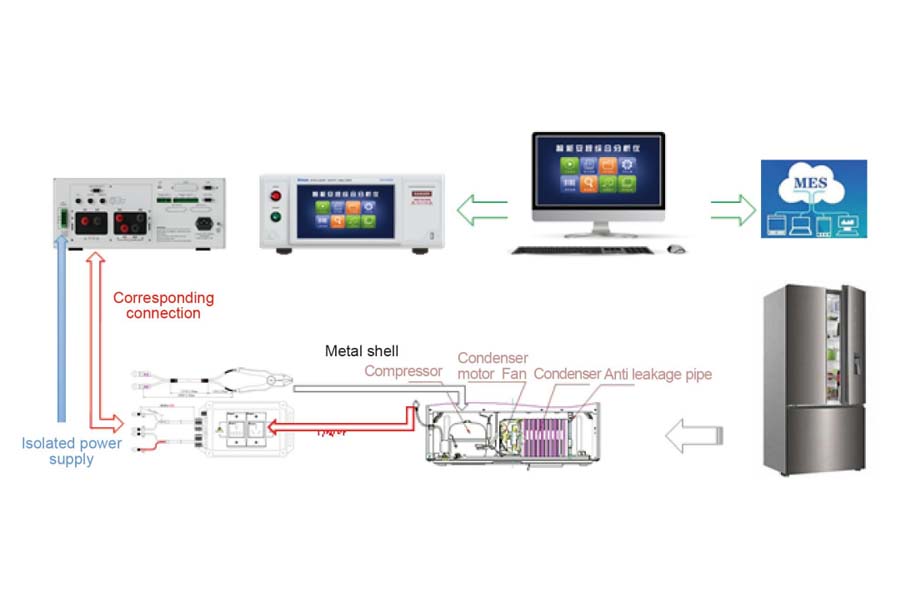

Complete testing of all items with just one click and one wiring

Multiple MDs: up to 8 MD options, covering various industry test standard requirements.

Multiple start modes: button on front panel/remote control/barcode scanner/grounding clamp.

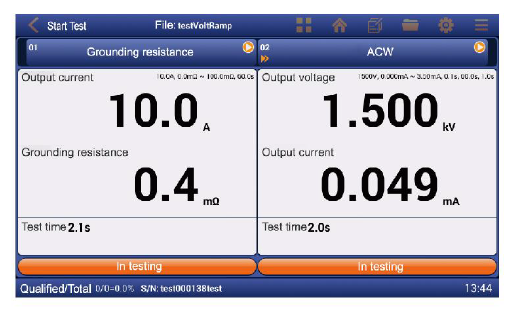

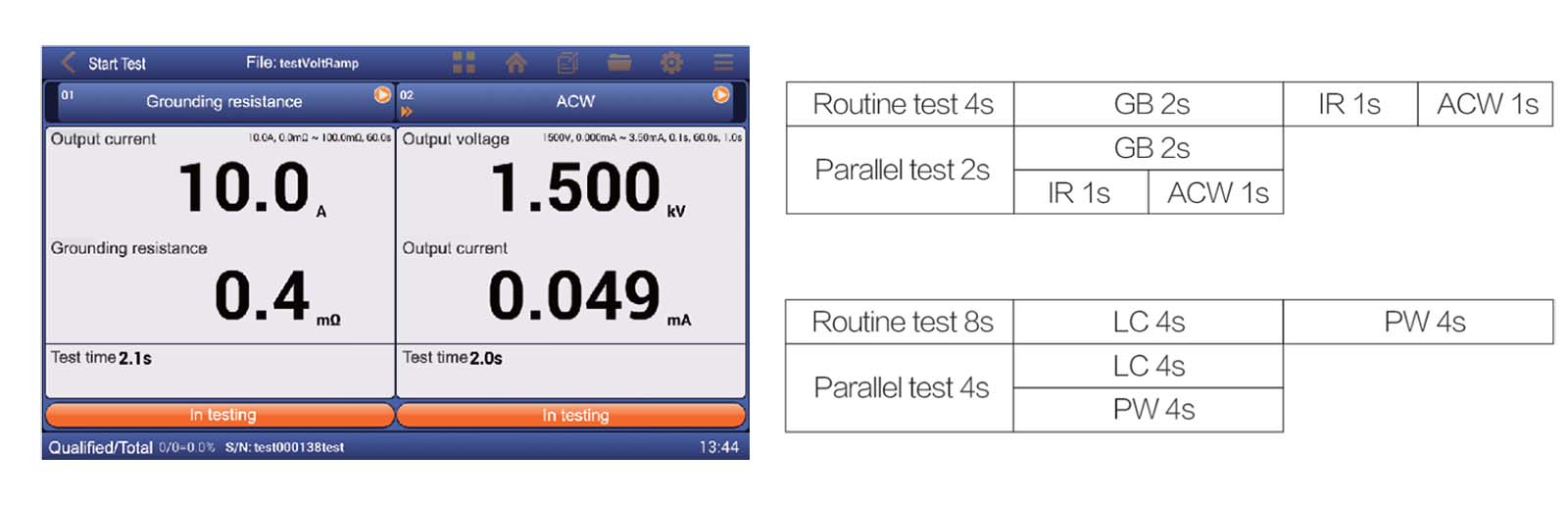

GB and IR/ACW/DCW/in parallel, LC and PW in parallel

AN1640H(F)series Intelligent Safety Analyzer, with parallel GB, IR, ACW/DCW test, as well as parallel test of dynamic LC and PW parameters, significantly reducing the testing time, doubling the production capacity of the production line.

The AN1640H(F) Series Intelligent Safety Analyzer can build an information test platform, and no PC is required.

1. Support barcode scanning/barcode recognition/calling programs/startup test;
2. Local store, data filter, report generation, data export, and other functions;
3. Real-time data upload/download through LAN interface and Manufacturing Information System(MES);
4. Support HDMI LCD and wireless keyboard/mouse, clear display, and convenient.
