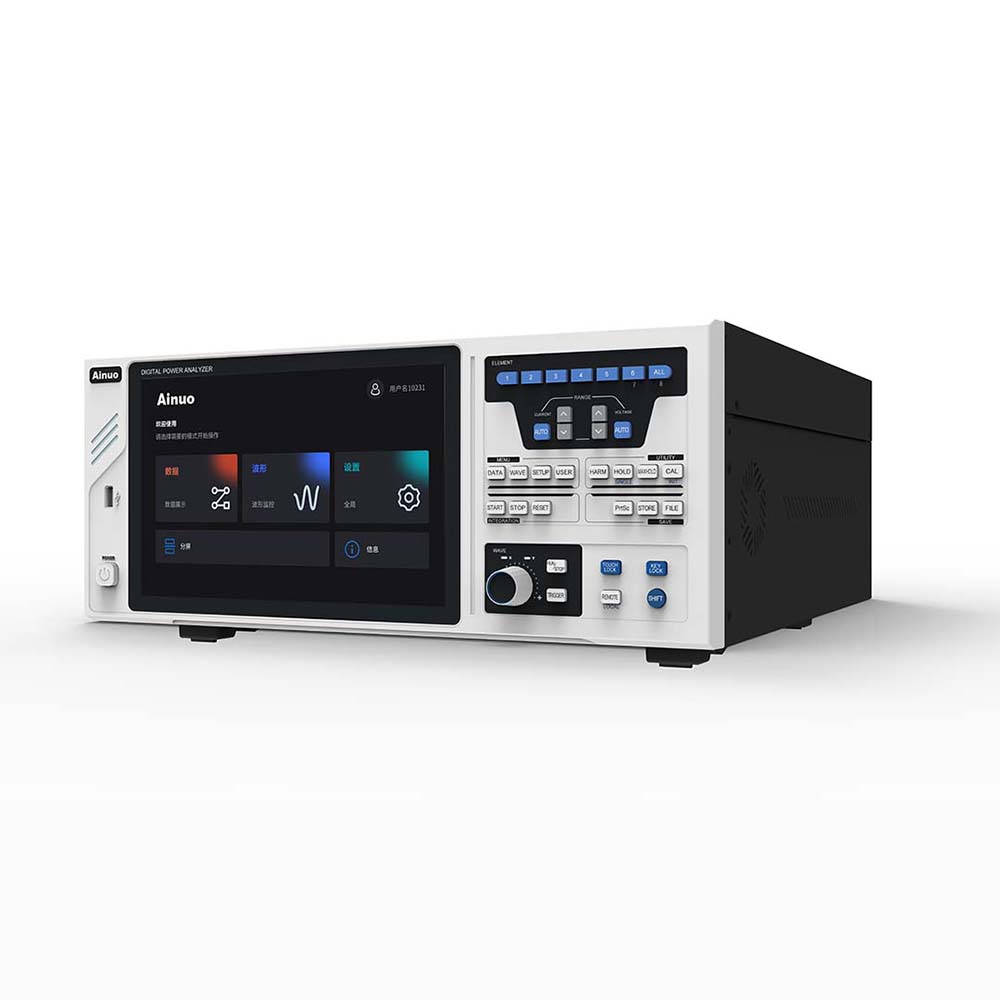

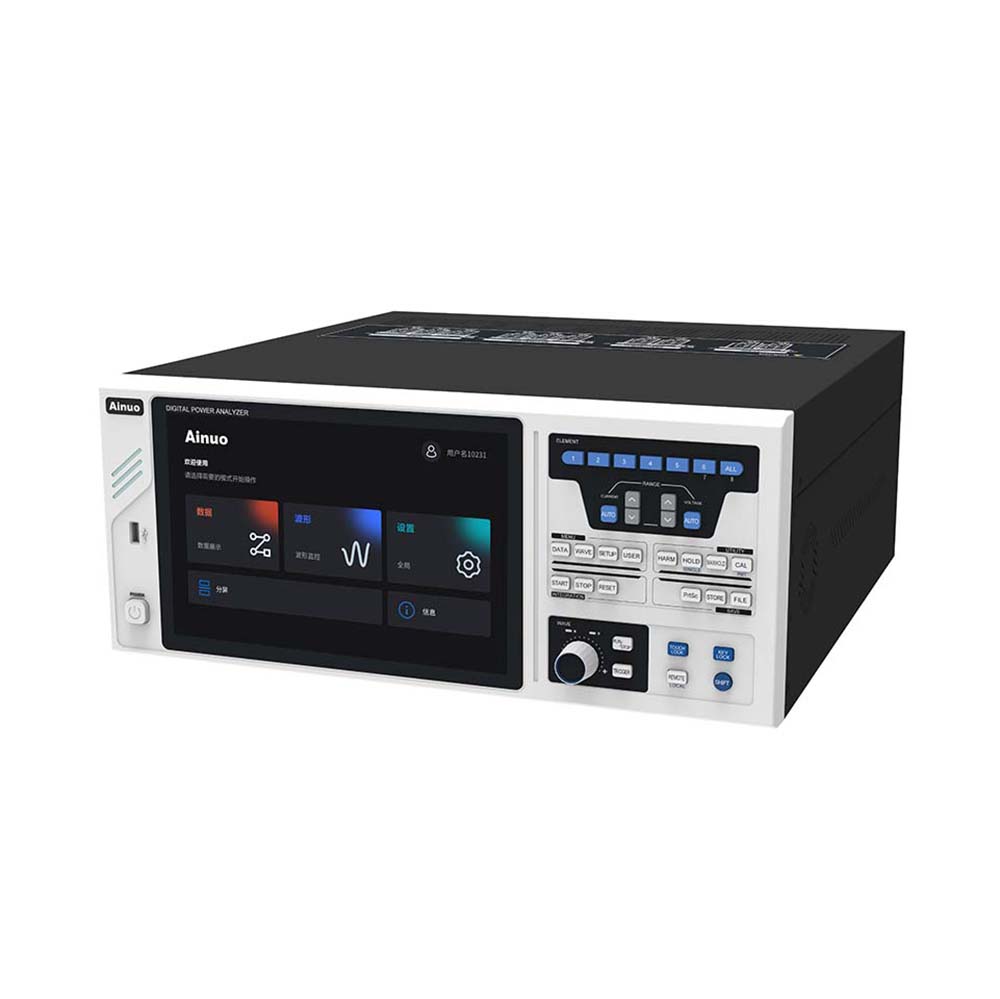

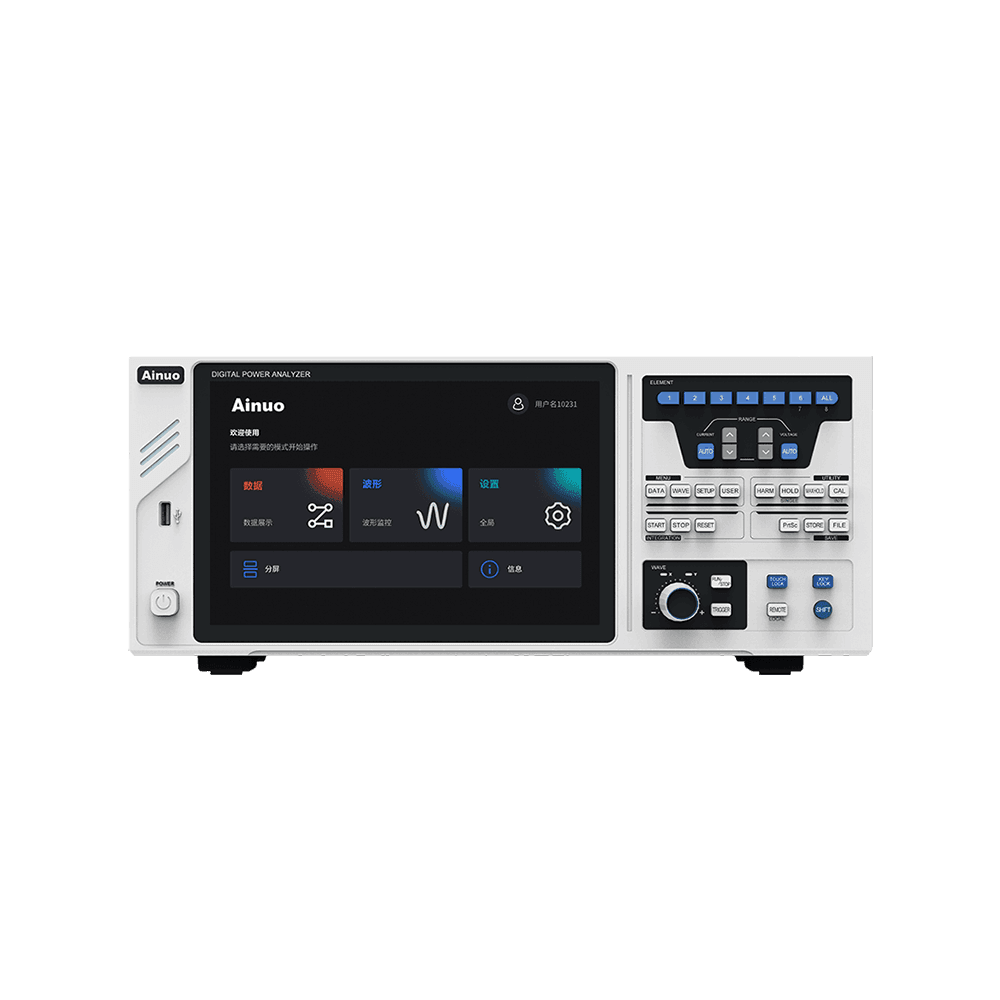

Features

• Eight-channel synchronous power analysis;

• Basic accuracy: 0.03%×Reading+0.05%×Range;

• Sampling Rate: 2MS/s;

• Maximum voltage: 1000V (DC1500V);

• Rich specifications: 30A (standard) /5A (optional), standard BNC interface, and optional sensors;

• Motor test: optional motor test channel;

• LCD: full touch screen experience, customizable display interface items, and multiple waveform displays;

• Data storage: customizable storage items, CSV format export, and on-device screenshot saving;

• Perfect size: standard 4U height, compliant with system integration requirements.

Applications

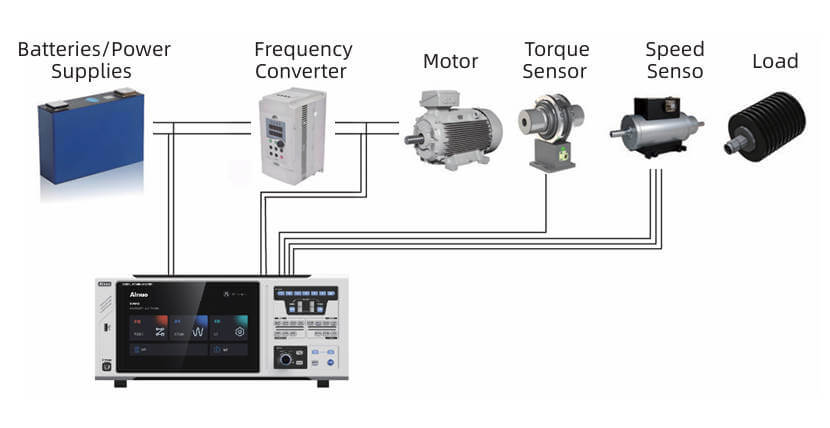

Motor Bench and Variable Frequency Motor Measurement

• Complying with GB/T 18488-2024 Drive Motor Systems for Electric Vehicles;

• Capable of simultaneously measuring up to four motors, supporting 500 harmonic measurements and distortion analysis;

• Supporting pulse-type and analog-type speed/torque sensors (optional);

• Torque, speed, mechanical power, efficiency, and electrical phase angle measurement functions (optional).

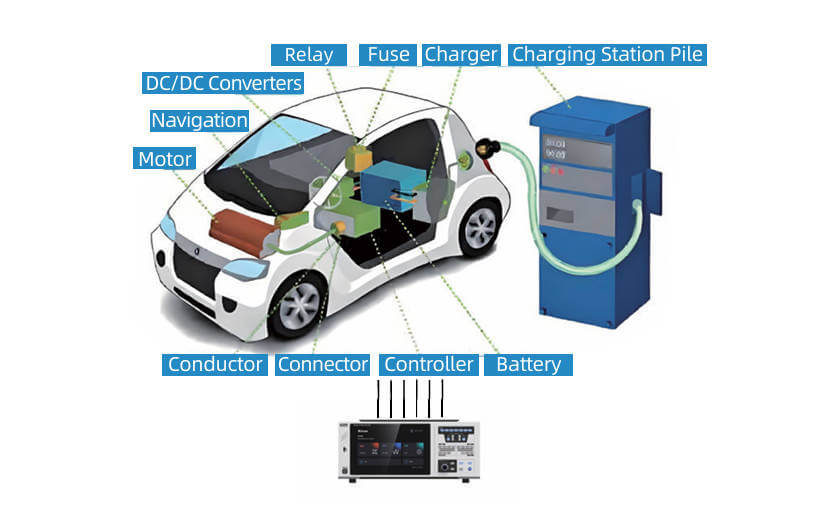

Electric vehicle electrical performance measurement

• Up to 8 channels for simultaneous measurement, capable of simultaneously detecting multiple parameters;

• Supports OBC, charging pile efficiency tests, battery charge and discharge performance, power conversion performance, motor performance, etc;

• Supports high voltage and current measurement, with a maximum voltage of 1000V (DC 1500V) and a maximum current of 30A. Larger current sensors can be extended for applications;

• Basic accuracy: 0.03%×Reading+0.05%×Range; minimum power resolution 0.1 mW;

• Capable of measuring signal ripple rate, three-phase unbalance rate, power factor, fundamental reactive power, and other parameters.

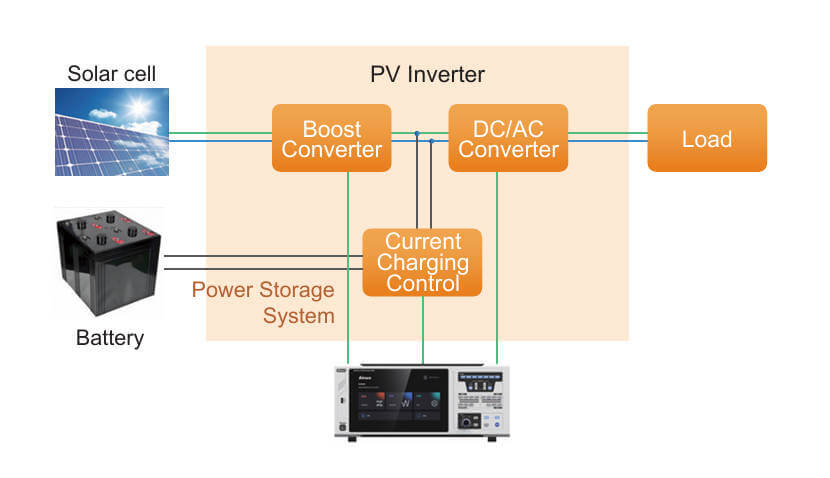

Photovoltaic inverter power measurement

• Complies with the testing specification for Photovoltaic Grid-connected Inverter Standard GB/T 37409-2019;

• Compliant with《GB/T 34133-2023 Technical Code for Testing of Energy Storage Converters》;

• Supports high voltage and current measurement, with a maximum voltage of 1000V (DC 1500V) and a maximum current of 30A;

• Larger current sensors can be extended for applications;

• Harmonic measurement and flicker measurement based on IEC standards;

• Analysis of up to 50th harmonics and distortion;

• Bidirectional power measurement for buying and selling electricity.

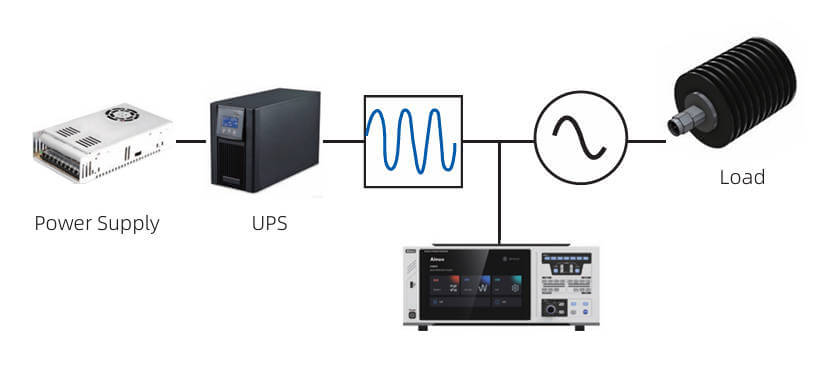

Various power supply and UPS power measurements

• Current range of 0-30A/5A;

• Power bandwidth: DC, 0.5Hz-1MHz;

• Simultaneously measures input and output (single-phase and three-phase) power, and monitors battery charge and discharge;

• Automatic efficiency calculation.

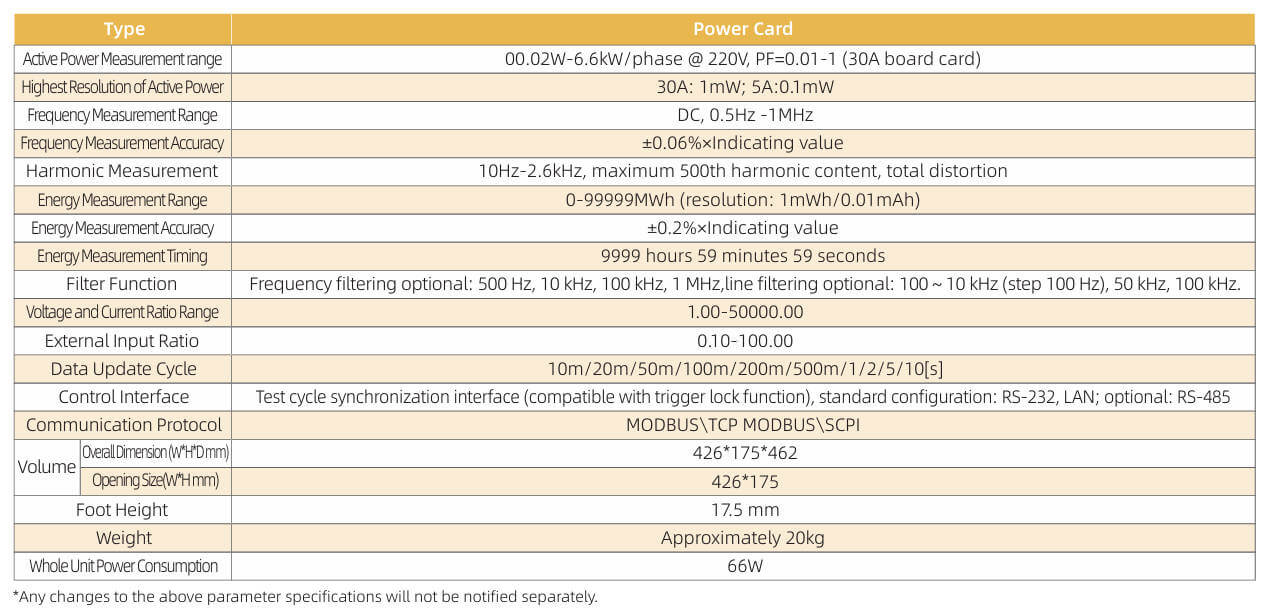

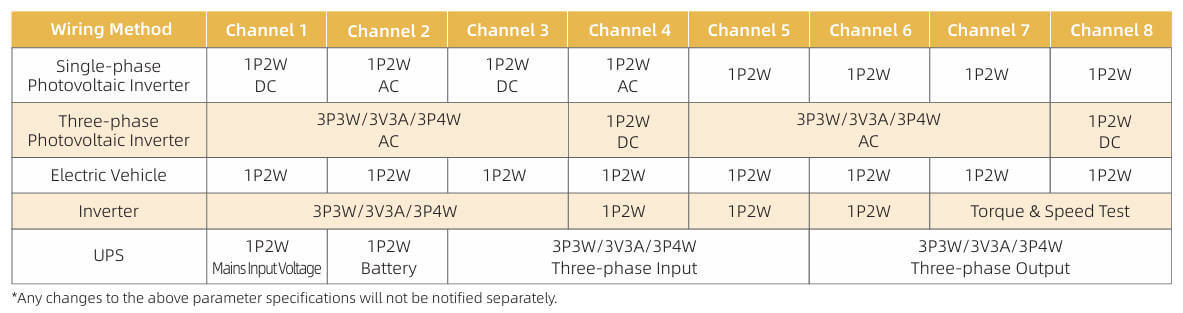

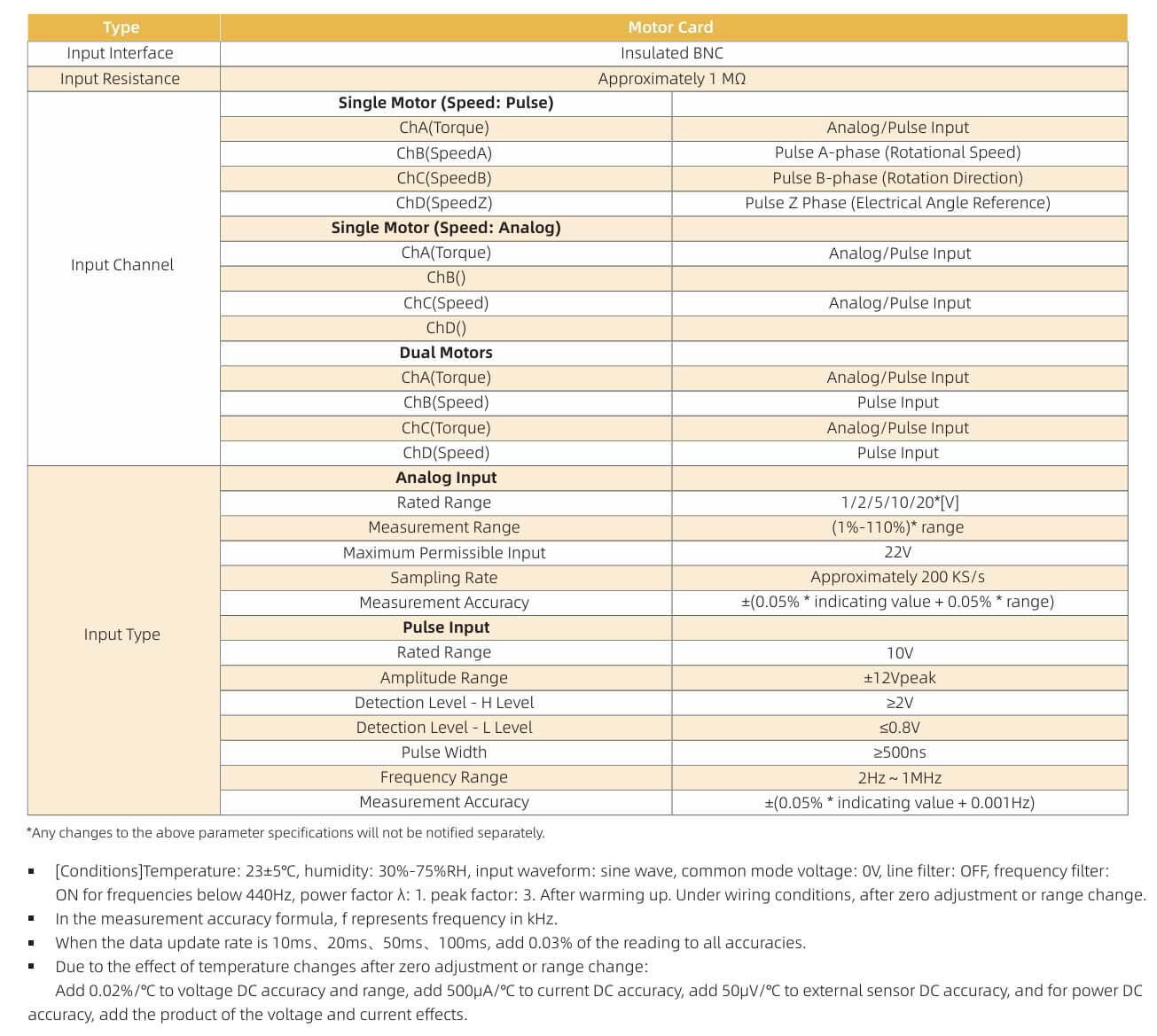

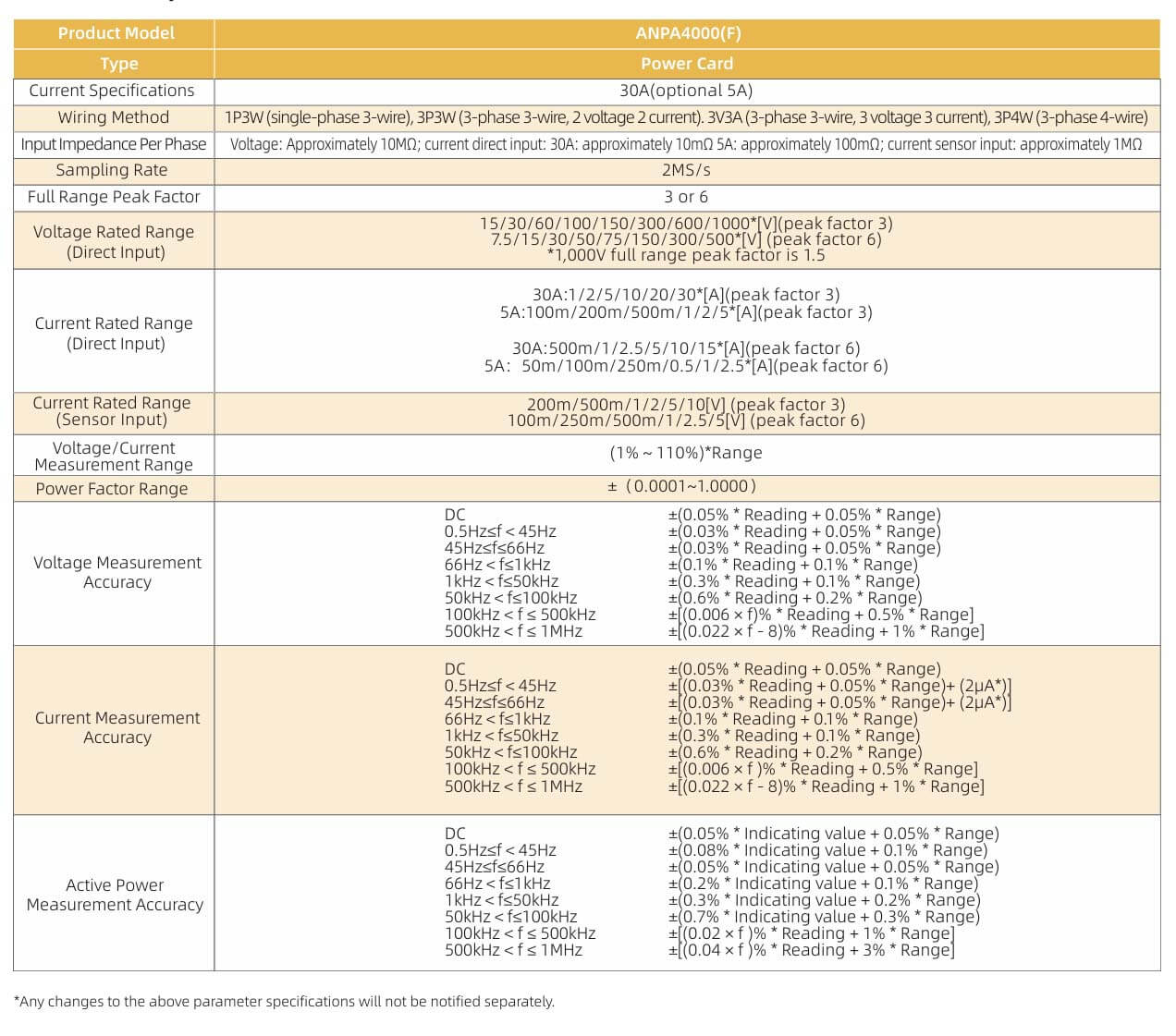

Specifications
