Overview

The AN51(F) low-power series DC power supply adopts high-frequency PWM control and phase-shifted full-bridge conversion, fast dynamic response, strong over-current capability, low output ripple, featuring compact, light, quiet, high efficiency, simple operation, and cost-effective. It can be used for manufacturing, testing, and maintenance of military electronic equipment such as motors, power tools, automotive electronics, chips and electronic components, switching coils and DC switches, aircraft and airborne equipment, radar, navigation, etc., as well as industrial and mining enterprises, colleges and universities, laboratories, research institutes, etc.

Features

• Colorful LCD, digital keys. Convenient and easy to operate.

• Standard chassis for all models. 350 mm deep is suitable for system integration and portable applications.

• High-frequency PWM and full-bridge conversion technology, with high efficiency.

• Strong current/power overload capacity, up to 110%.

• Exceptional output stability.

• Voltage drop compensation terminal for large current output.

• Complete protection to ensure the normal operation of the power supply unit and load security.

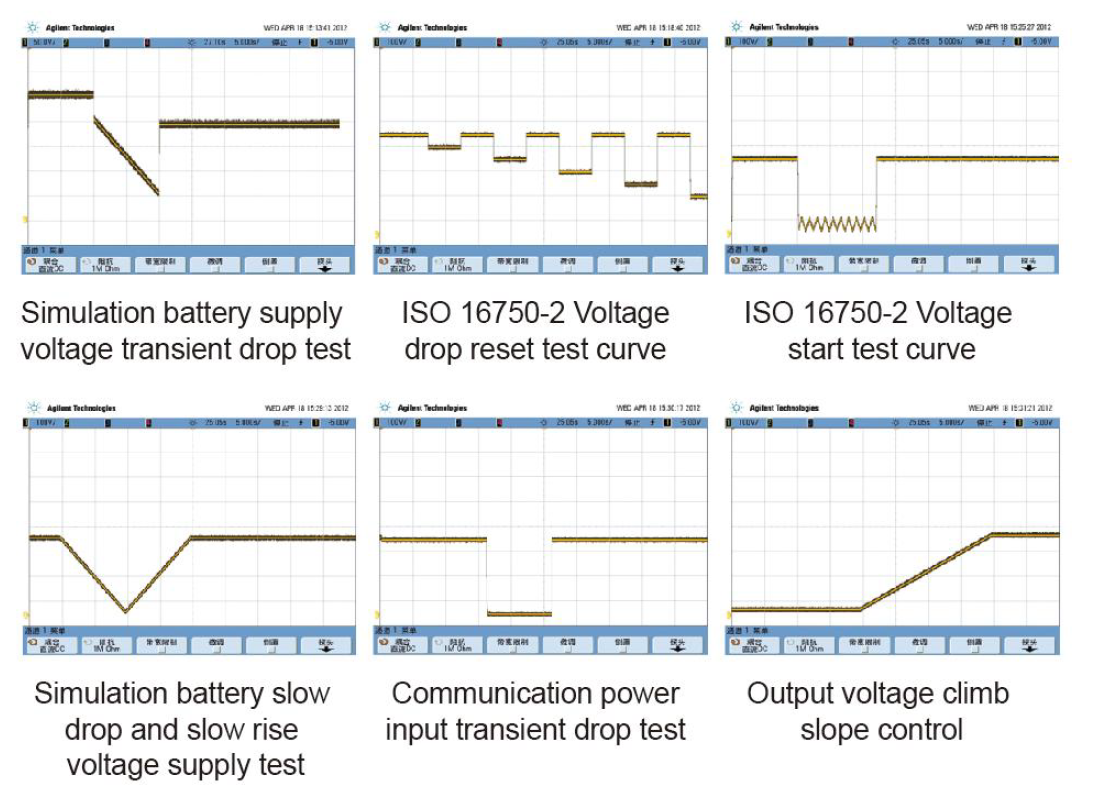

• Powerful programming features to customize the output waveform.

Order and Extensions

• AN5135-50(F): 35V/50A/1.5KW

• AN5135-100(F): 35V/100A/3kW

• AN5160-25(F): 60V/25AV1.5KW

• AN5160-50(F): 60V/50A/3kW

• AN51120-12(F): 120V/12.5AV1.5KW

• AN51120-25(F): 120V/25A/3KW

• AN51300-5(F): 300V/5A/1.5KW

• AN51300-10(F): 300V/10A/3kW

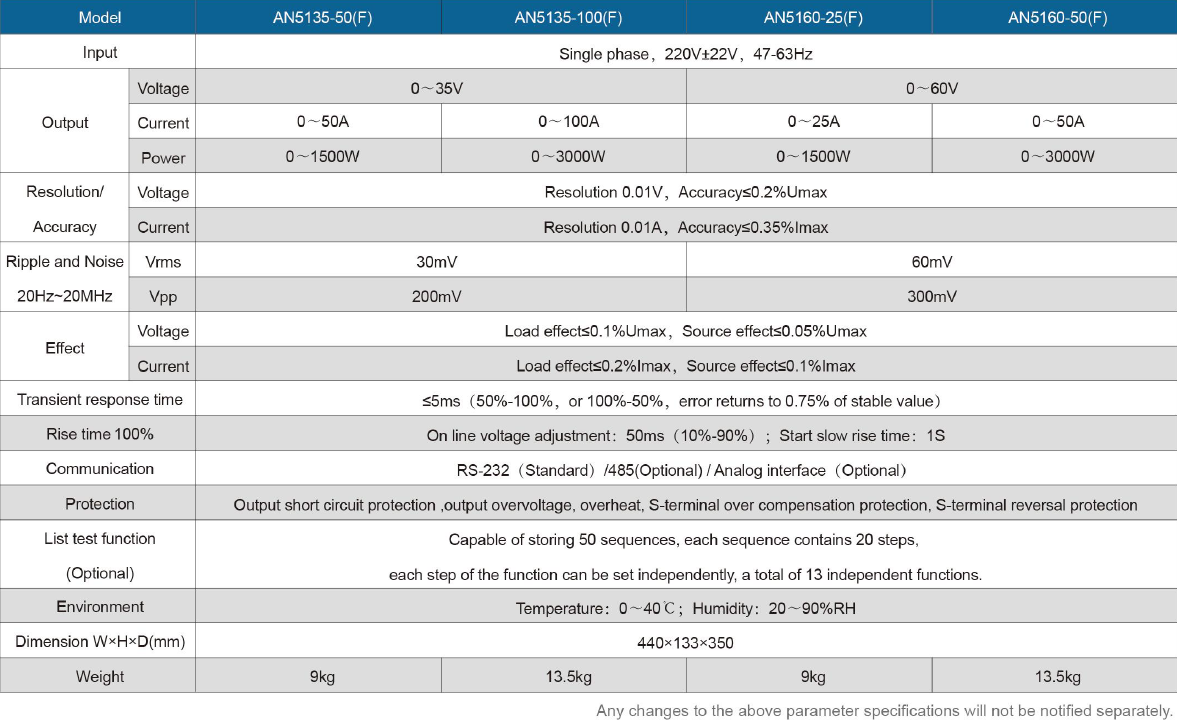

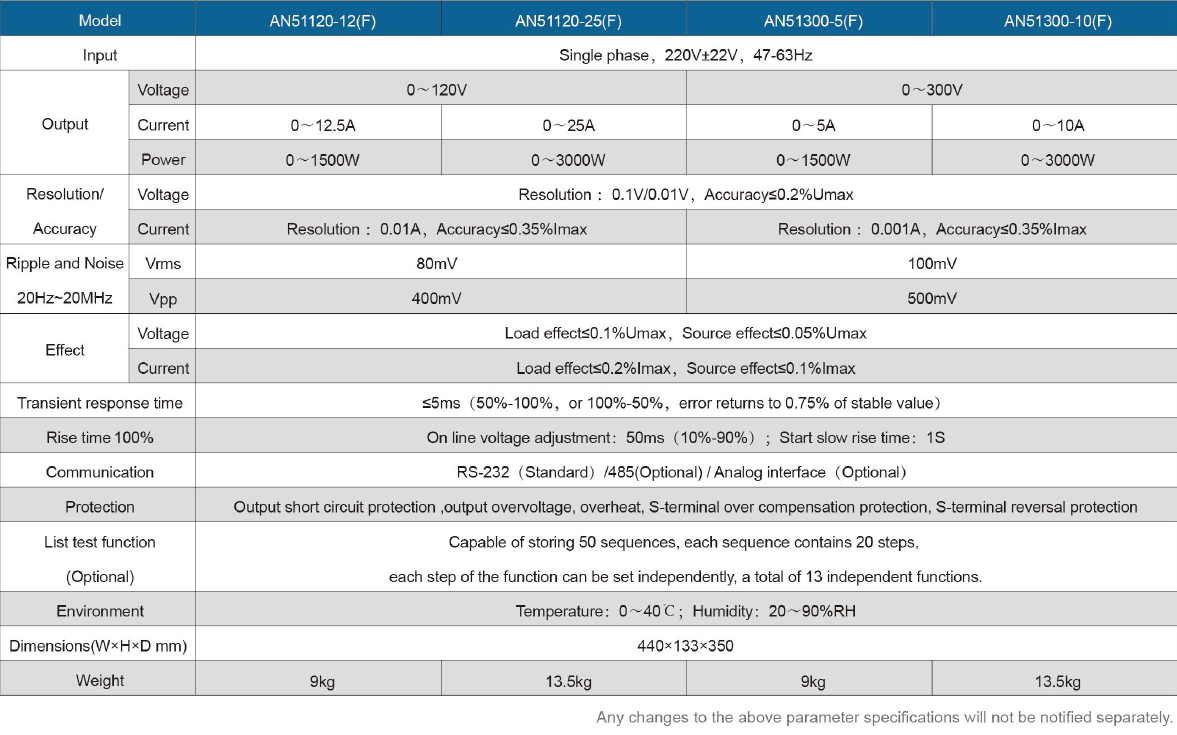

Specifications
