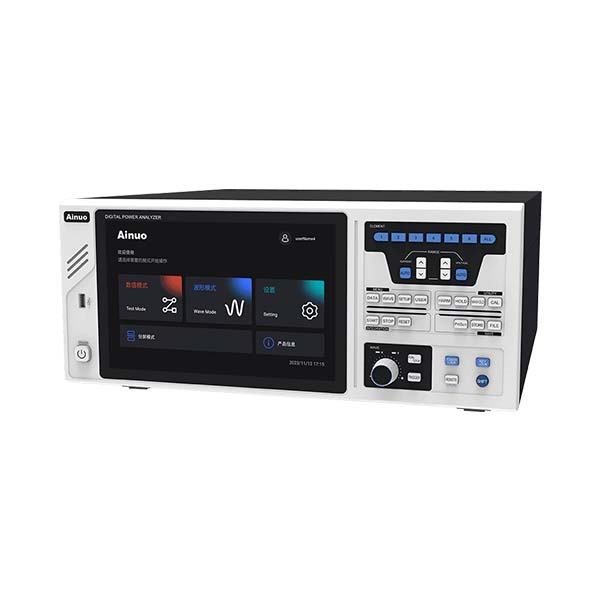

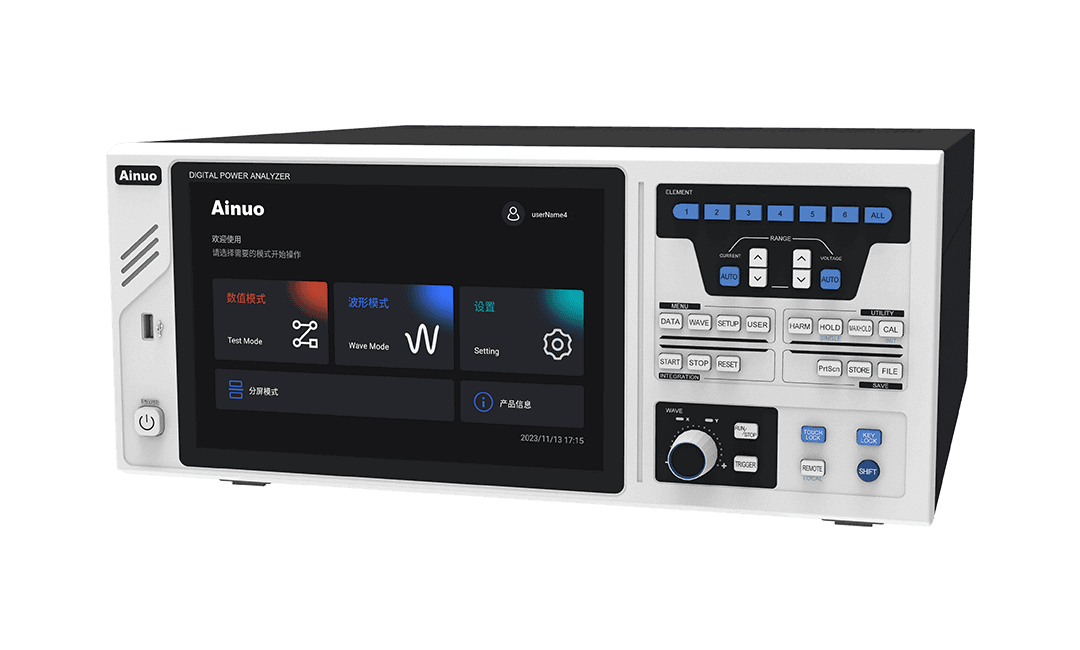

Overview

Features

• Multi-channel: Six-channel synchronous power analysis
• Basic Accuracy: 0.03%*Reading+0.05%×Range.
• Measurement Bandwidth: DC, 0.5Hz-1MHz.
• Maximum Voltage: 1000V (DC1500V).
• Rich Specifications: 30A (standard), 50A/5A (optional), standard BNC interface, and optional sensors.

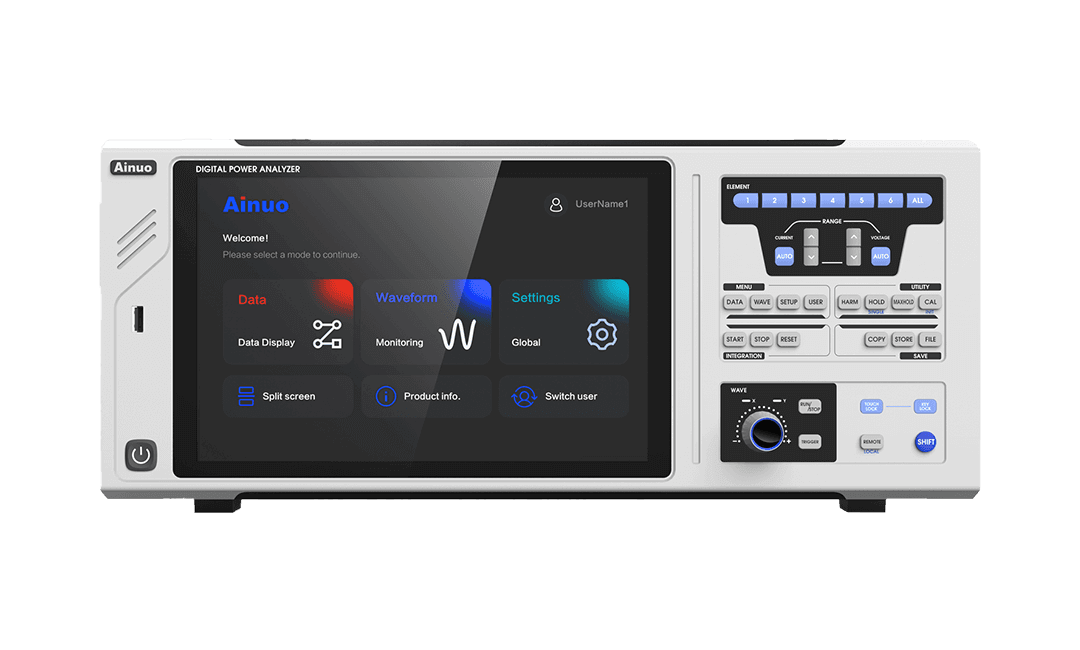

• LCD: full touch screen experience, customizable display interface items, and multiple waveform displays.
• Data Storage: customizable storage items, CSV format export, and on-device screenshot saving.
• Perfect Size: standard 4U height, compliant with the system integration requirements.

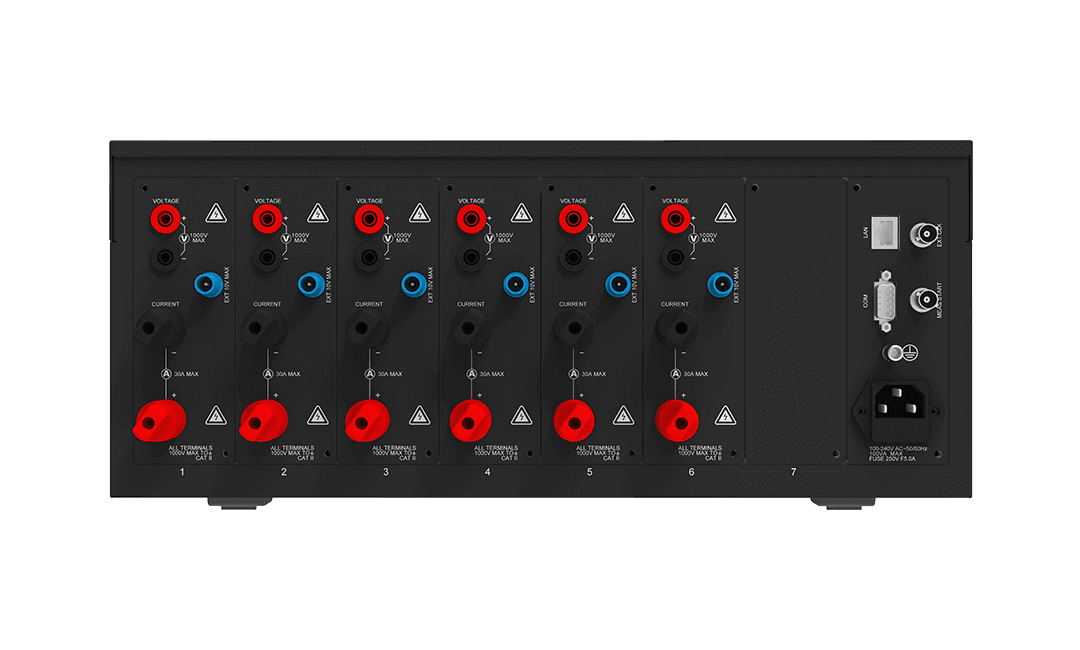

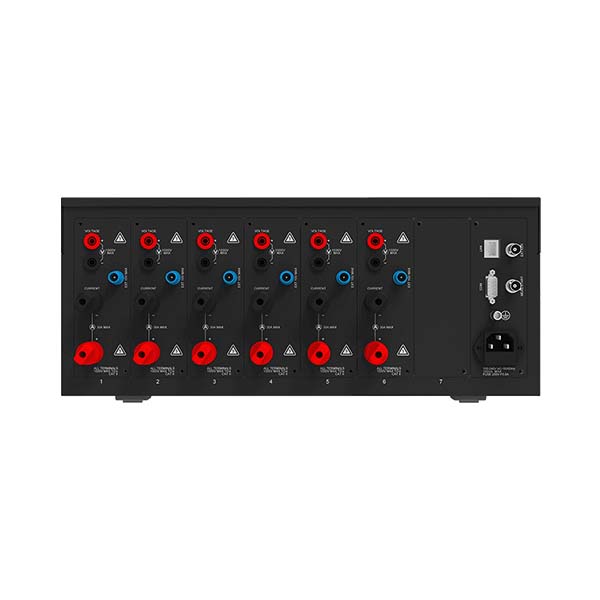

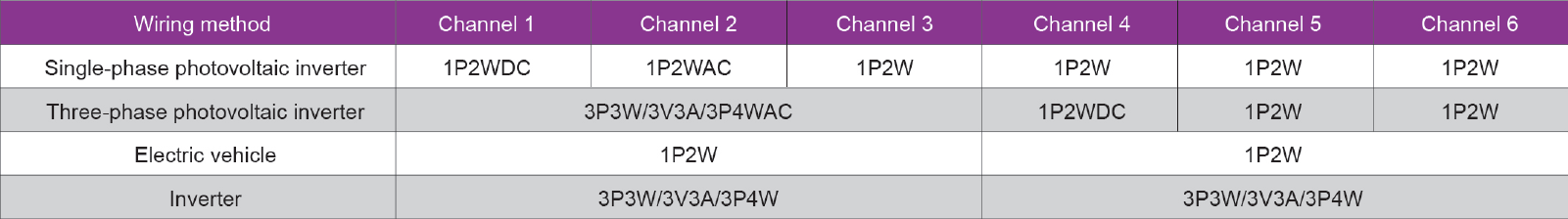

Channel Configuration

Applications

• Power, efficiency, and harmonic analysis before and after aging in the production process of photovoltaic inverters.
• Measurement of the electrical performance of electric vehicles, OBC, and charging piles.
• Power consumption and mechanical efficiency tests of motor benches and variable frequency motors.
• Analysis of power, harmonics, and surge currents in switching power supplies.
• Harmonic analysis of power electronics and transformers.

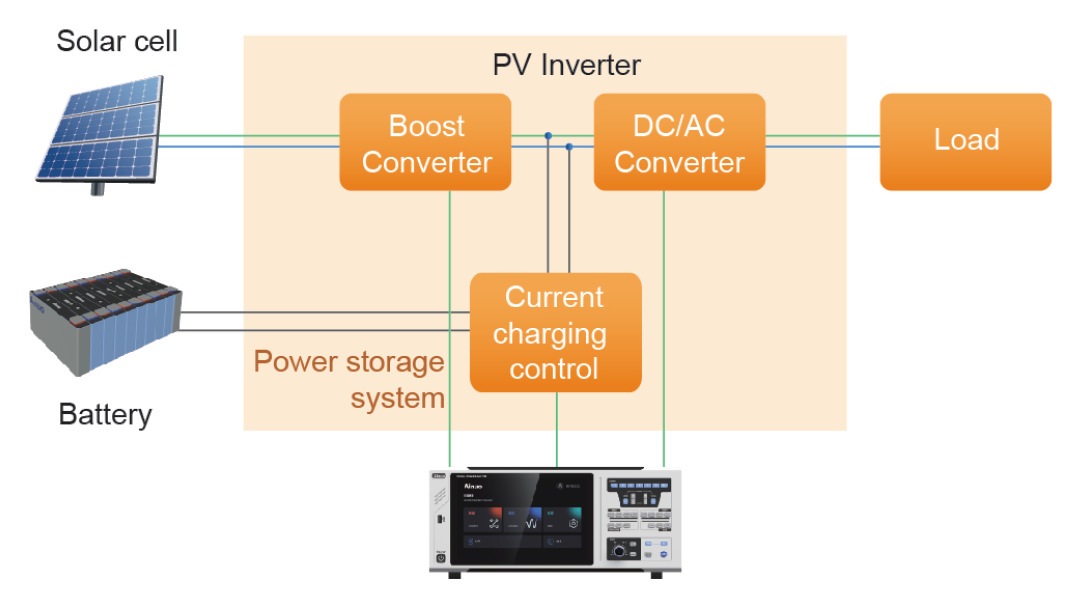

Photovoltaic Inverter Power Measurement

• Comply with the Photovoltaic Grid-connected Inverter Standard GB/T 37409-2019 testing specification.
• Voltage range 0-1000V (DC 1500V).
• Current range 0-50A, or current sensor.
• Simultaneous measurement of input, output (single-phase electric vehicle 1P2W and three-phase) power, and power factor.
• Automatic efficiency calculation.
• Analysis of up to 500 times harmonics and distortion.
• Bidirectional power measurement for buying and selling electricity.

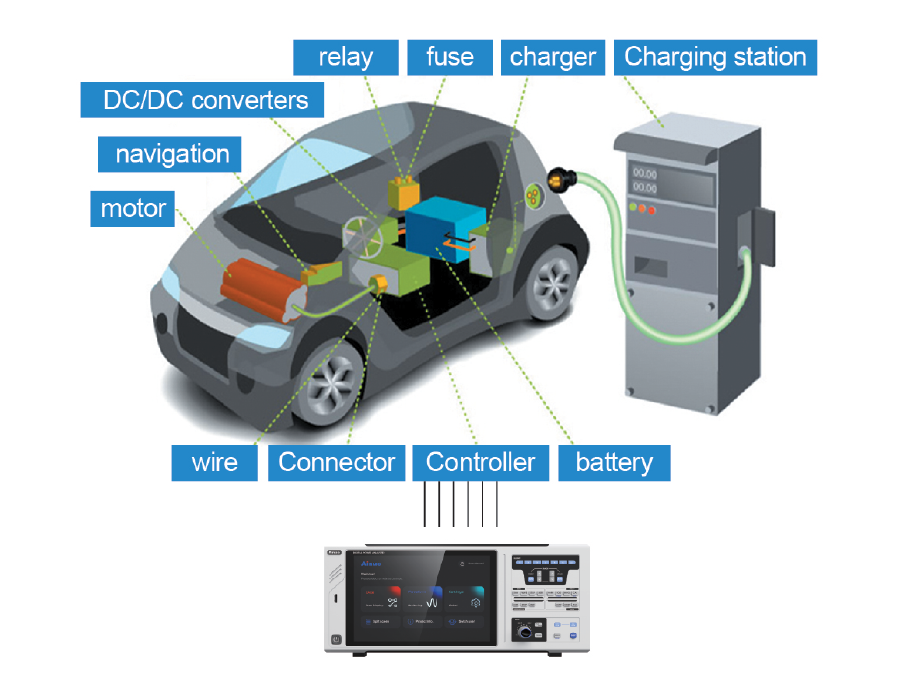

Electric Vehicle Electrical Performance Measurement

• Multi-channel, capable of simultaneously detecting multiple parameters. Supports bench tests, OBC, charging piles efficiency tests, battery charge and discharge performance, power conversion performance, motor performance, etc.
• AC/DC, maximum current 50A, expandable with larger current sensors.
• High accuracy, basic accuracy 0.1%, minimum power resolution 0.1mW.
• Can measure the instantaneous effective value, average value, peak value of AC/DC signals, energy consumption, etc.

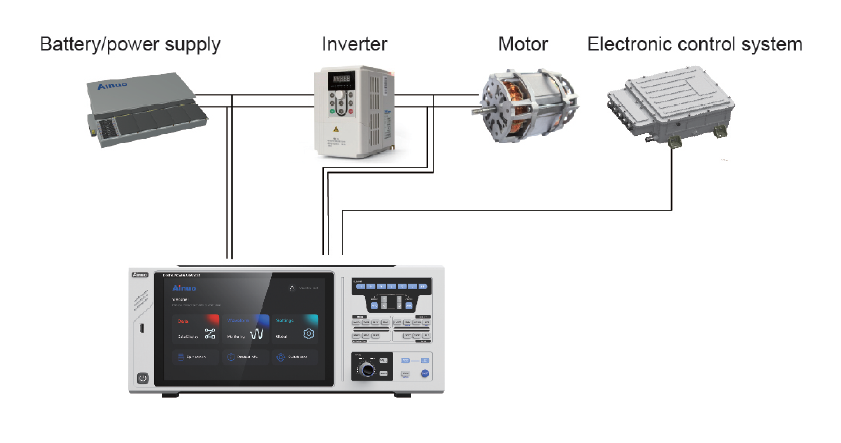

Motor Bench and Variable Frequency Motor Measurement

• Complies with GB12668 standard.
• Power bandwidth DC. 0.5Hz-1MHz.
• It has sensors with a current range of 0-50A/30A/5A.
• Simultaneously measures input and output power.
• Analysis of 500 times harmonics and distortion.

Various Power Supplies and UPS Power Measurement

• Has current sensors with a current range of 0-50A/30A/5А.
• Power bandwidth DC, 0.5Hz-1MHz.
• Simultaneously measures input and output (single-phase and three-phase) power, and monitors battery charge and discharge.

• Automatic efficiency calculation.

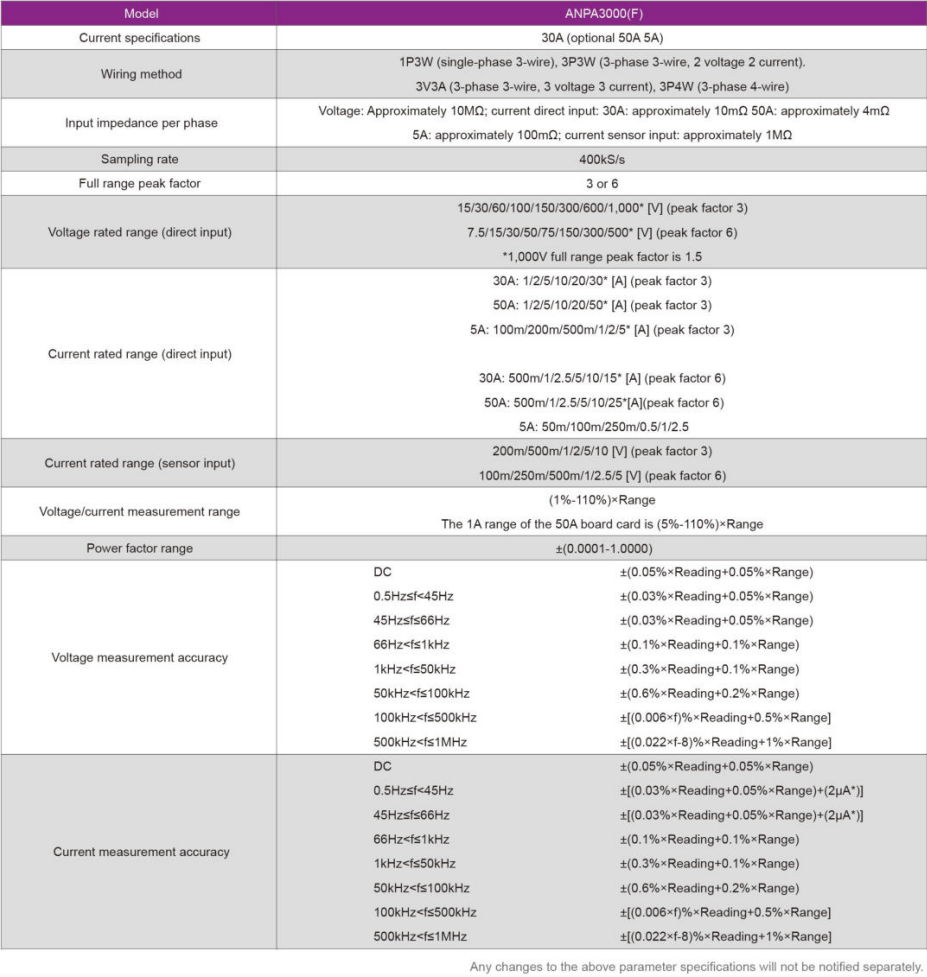

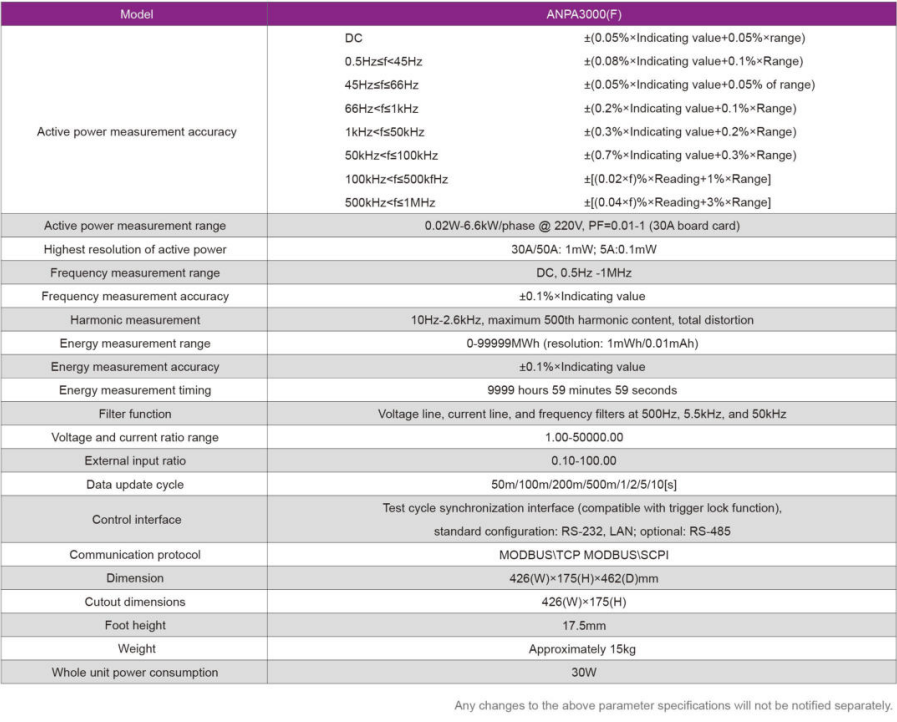

Specifications

[Conditions]

• Temperature: 23+5°C
• humidity: 30%-75%RH
• Input waveform: sine wave
• Common mode voltage: 0V
• Line filter: OFF
• Frequency filter: ON for frequencies below 440Hz
• Power factor λ: 1. Peak factor: 3. After warming up. Under wiring conditions, after zero adjustment or range change.
• In the accuracy formula, f represents frequency in kHz.
• When the data update rate is 50ms or 100ms, add 0.03% of the reading to all accuracy.
• Due to the effect of temperature changes after zero adjustment or range change:
• Add 0.02%/°C to voltage DC accuracy and range, add 500μA/°C to current DC accuracy, add 50μV/°C to external sensor DC accuracy, and for power DC accuracyу.
• Add the product of the voltage and current effects.
