Overview

The ANFC(F) series AC power supply adopts FPGA digital control, instantaneous waveform control, and high-frequency pulse width modulation (SPWM) technologies. It has the advantages of fast response speed, high output accuracy, and superior waveform quality. It can withstand 3 times the rated current impact, has high capacity, and strong load adaptability, adopts a modular design concept, small volume and weight, convenient operation, and high cost performance. Mainly used in applications such as home appliances, motors, and production lines, it is one solution that meets the basic needs of traditional industries and a power supply alternative for equipment upgrades.

Features

• Adopt FPGA digital technology, realize accuracy control, and high-quality sine wave output.

• Operating in overcurrent shock (up to 3 times of rated current) within 2s, start the impact load of 1/3 of the power supply directly.

• Adjustable voltage and frequency during output status.

• Three-phase loading separately, start single phase output by U/V/W fast settings (Only suitable for three-phase output power supply);

• Measurement: voltage, current, frequency, active power.

• Online monitoring: monitor IGBT temperature, transformer temperature, fan speed, input voltage, and other parameters during output status.

• Operating data recorders: keep a record of the power supply status and alarm code automatically during alarming.

• Voltage range: 1.0-150.0V or 150.1-300.0V automatic adjustment, or locked at 1.0-300.0V.

• Shortcuts groups, power-off memory, shortcuts key, and knobs operation.

• Fan speed will be automatically adjustable with the temperature of the power supply to reduce the noise.

• Lock key, user-friendly design, automatically locking without operation for 5 minutes to prevent operation mistakes.

• Standard RS232, optional RS485, GPIB, Ethernet, analog control, and other remote communication/control.

Applications

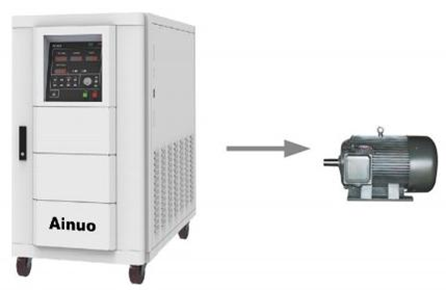

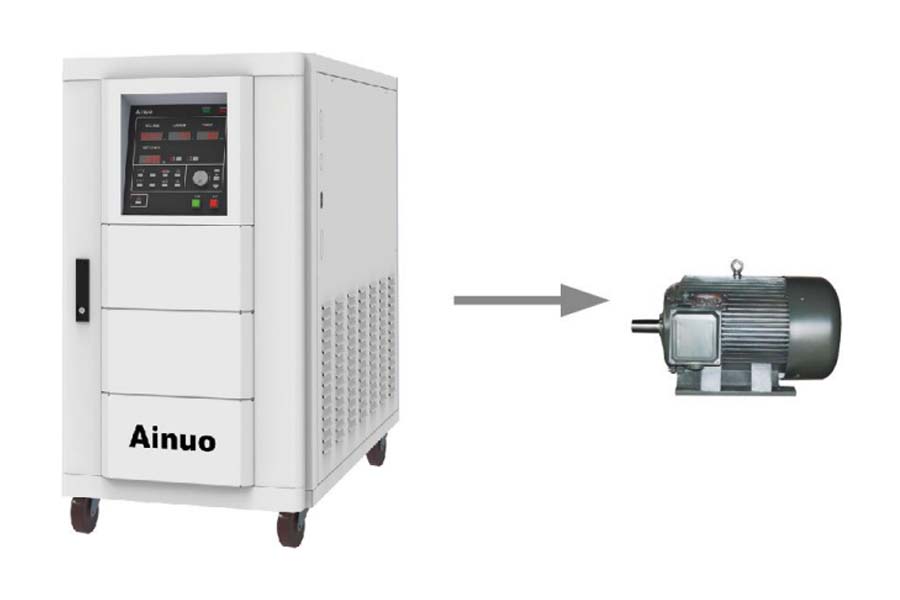

Over shock capacity

Can withstand 3 times the rated current shock for 2 seconds, impact load of 1/3 capacity of the power supply directly without soft start (below 1000KVA).

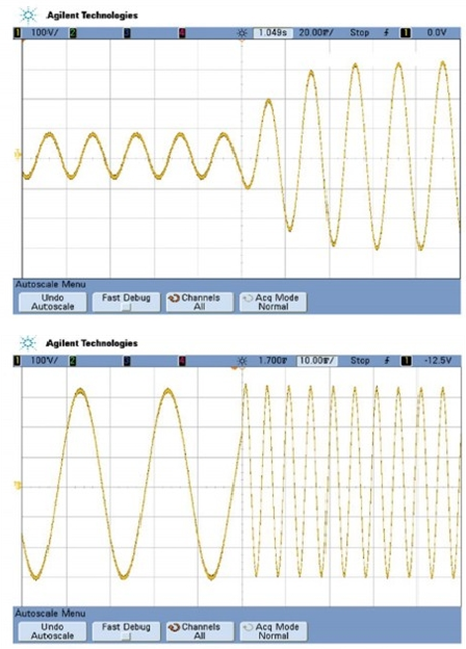

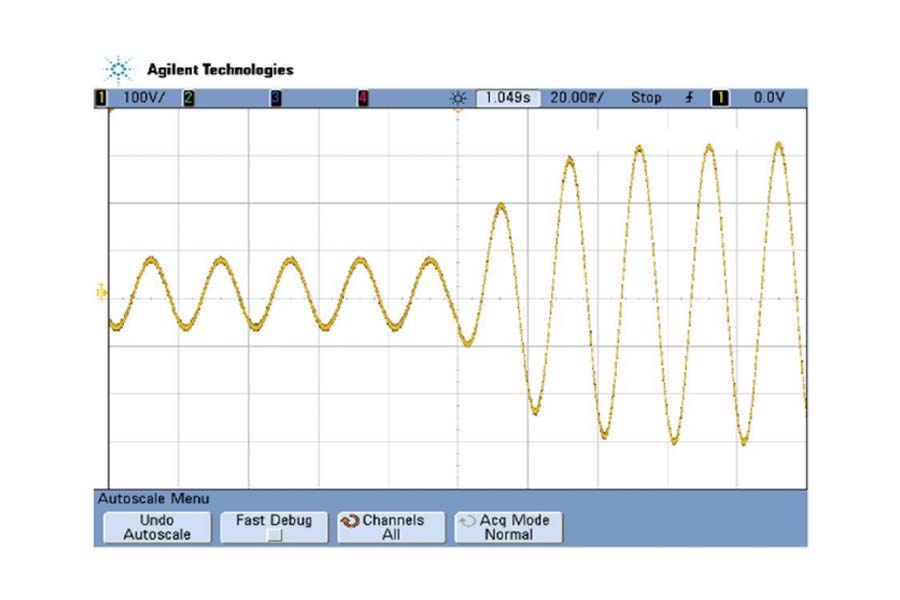

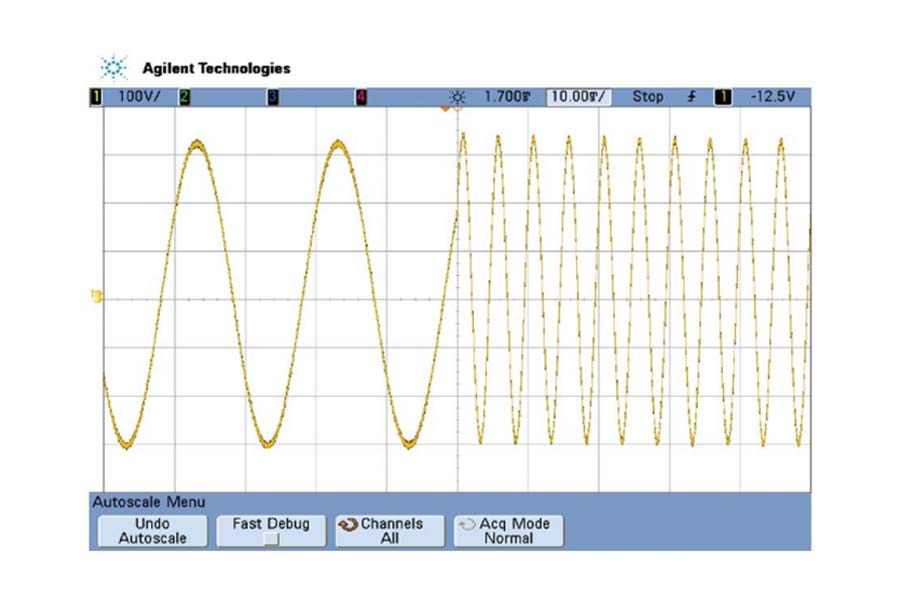

Adjustable voltage and frequency during output

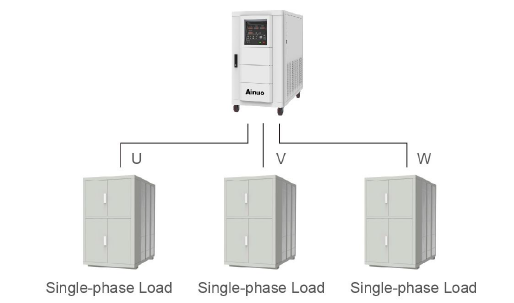

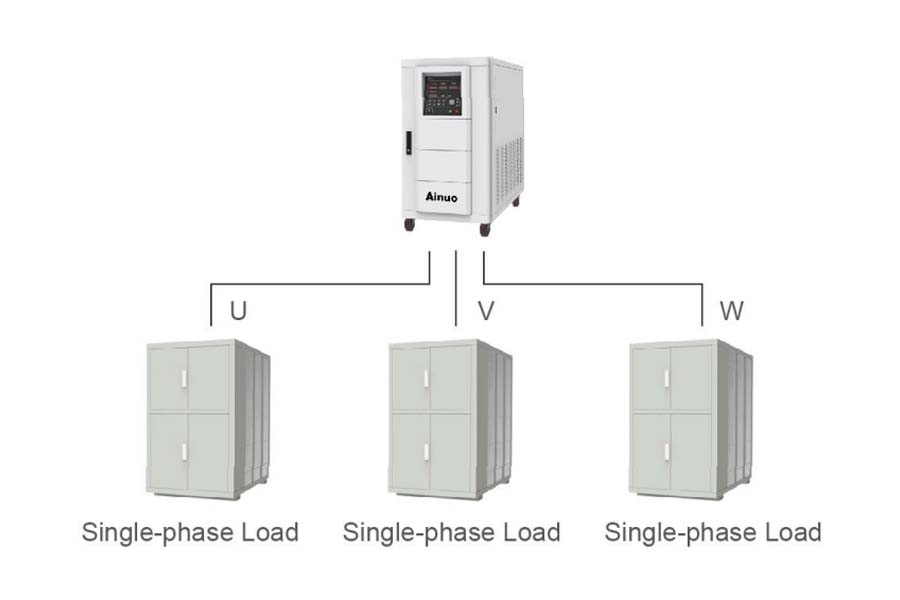

Three-phase loading separately (Only suitable for three-phase output power supply)

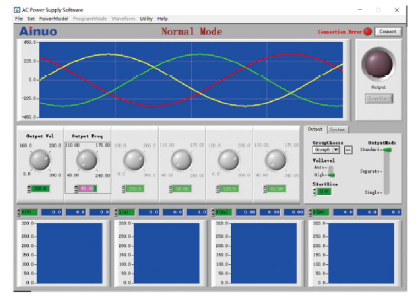

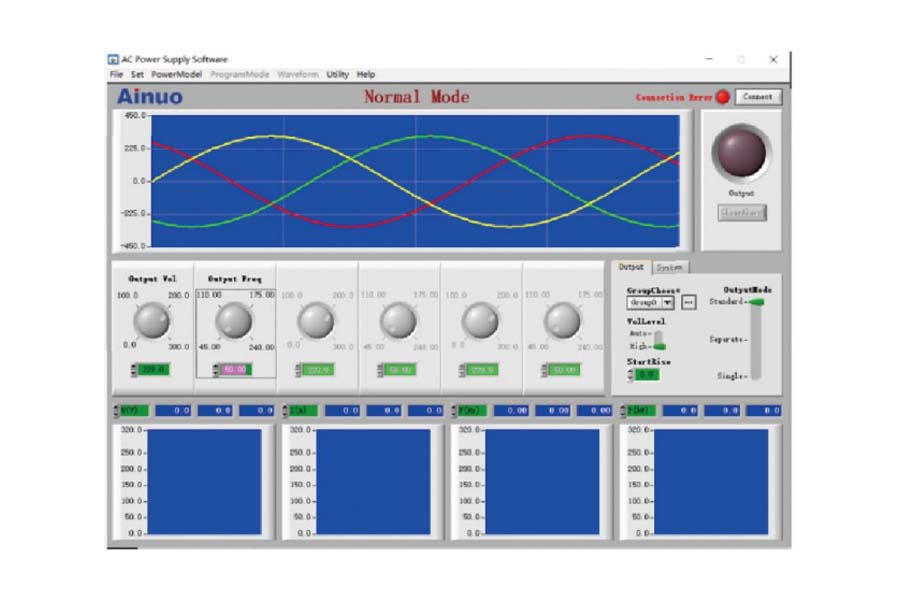

PC control software

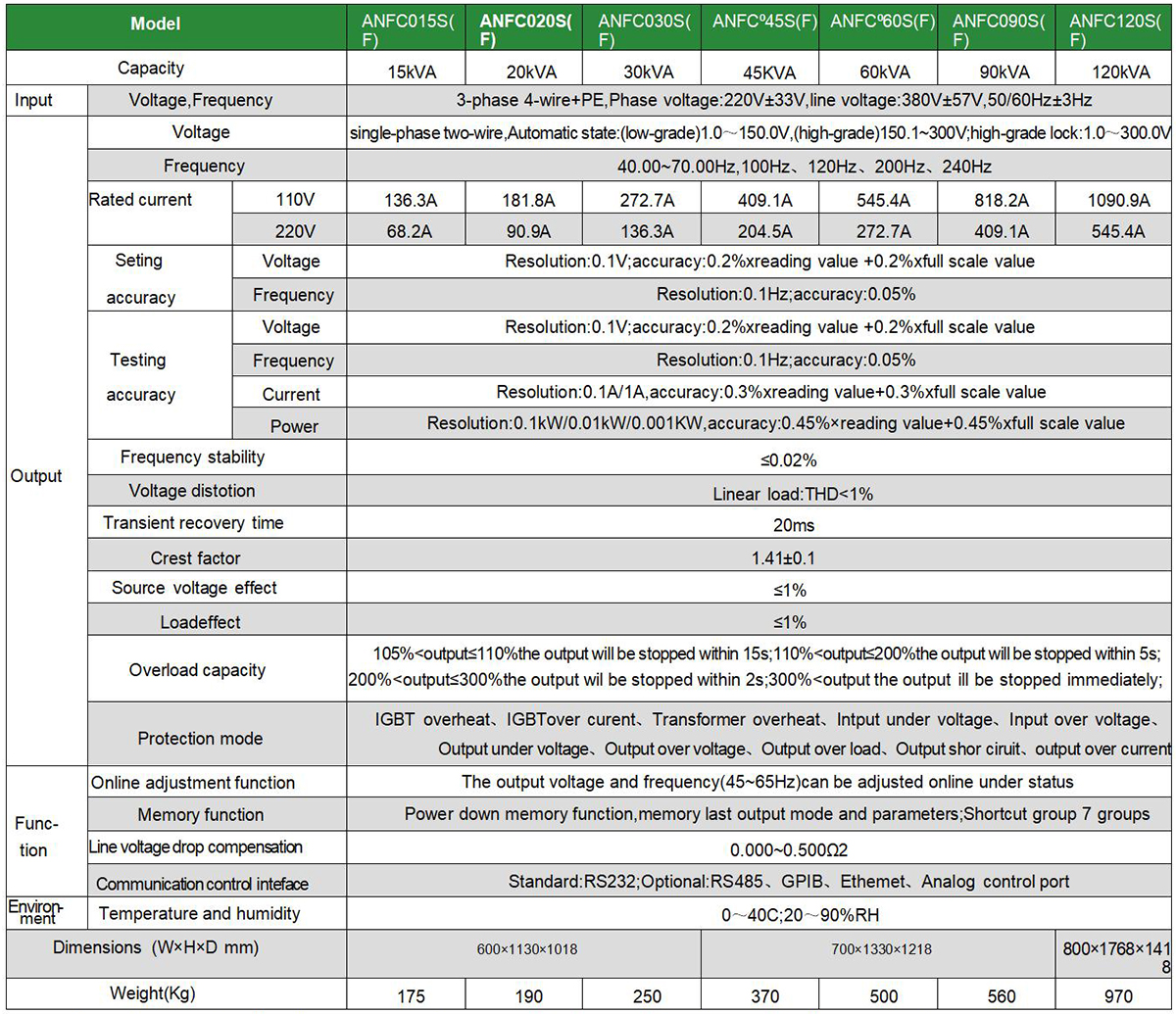

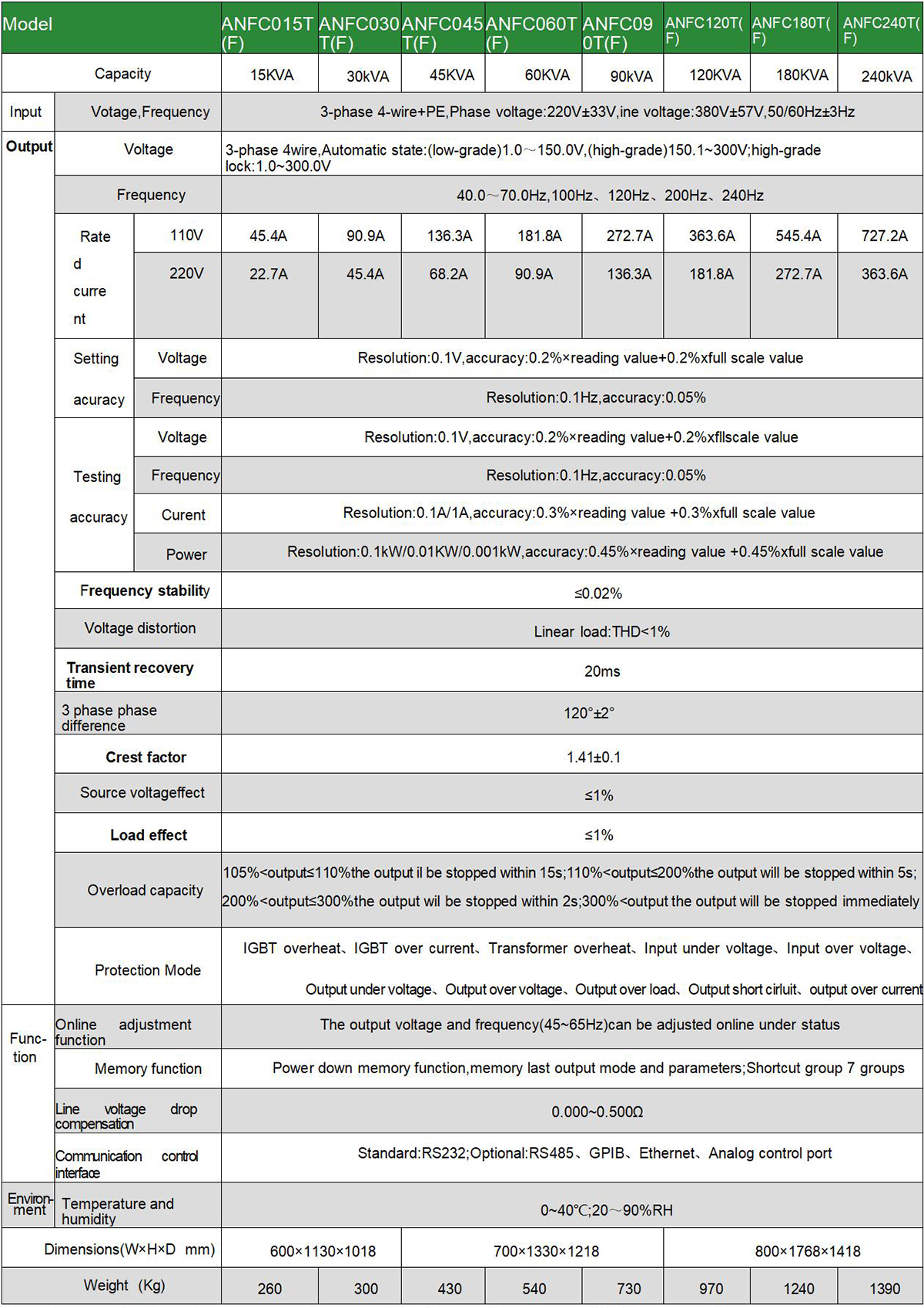

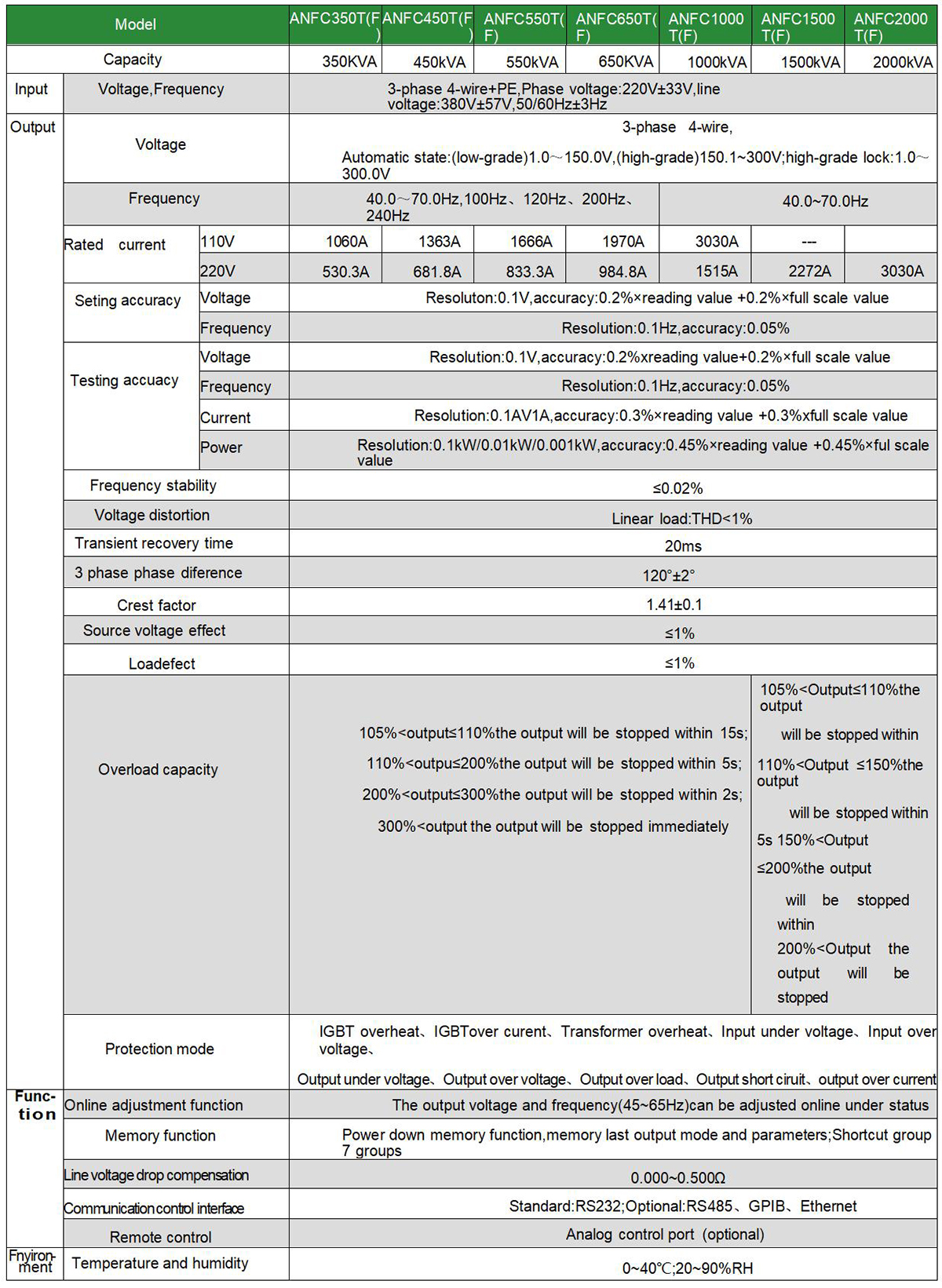

Specifications

Any changes to the above parameter specifications wil not be notified separately.
