Product Introduction

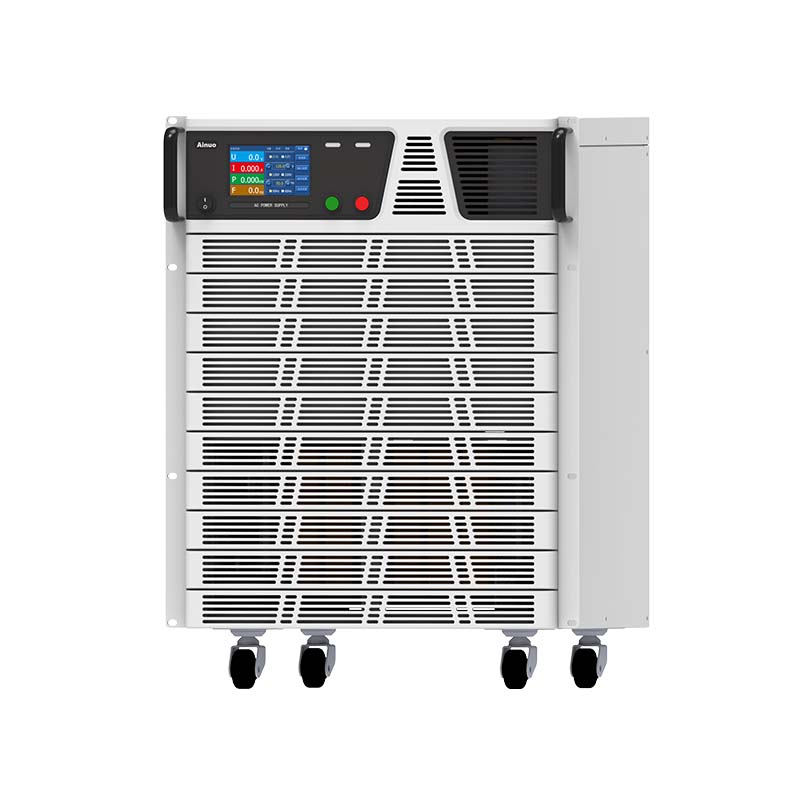

ANFH(F) series AC power supply adopts digital technologies including digital control, instantaneous waveform control, and high-frequency pulse width modulation (SPWM). The power supply has the ability to withstand impact of 3 times the rated  current, featuring strong load adaptability, mainly for applications such as home appliances, motors, and production lines, power solutions meeting the essential needs of traditional industries as well as equipment replacement and updates. The power supply is designed suitable for 19" standardchassis, small size and rich interfaces, and can be directly installed in a standard cabinet for various applications such astesting, systemintegration, production line, as well as 4.3" color LCD touch screen + plastic shell panel, aesthetic and high-end appearance, and easy-to-use and intuitive operation.

Features

19" standard chassis,compact, can be installed in standard cabinet;

Withstand 3 times the rated current lasting for 2s, directly start impact load equivalent to 1/3 of the power;

Adjustment of voltage/frequency in output state;

Startup ramp-up and online ramp-up, and the ramp-up time can be set;

Measurements: voltage, current, frequency, active power Voltage;

level: 1.0~150.0V, 150.1~300.0V automatically adjustable or locked within 1.0~300.0V;

Line voltage drop compensation;

Multi shortcut groups, power-down memory and shortcut keys;

4.3" color touch screen, convenient and intuitive;

Key lock and humanized design to avoid misoperation;

Operating data recorders: automatically record the power state when alarming and alarm code etc;

Standard RS232 port, optional RS485/GPIB/Ethernet port or analog control;

Applications

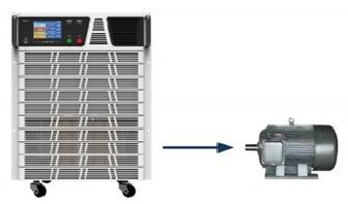

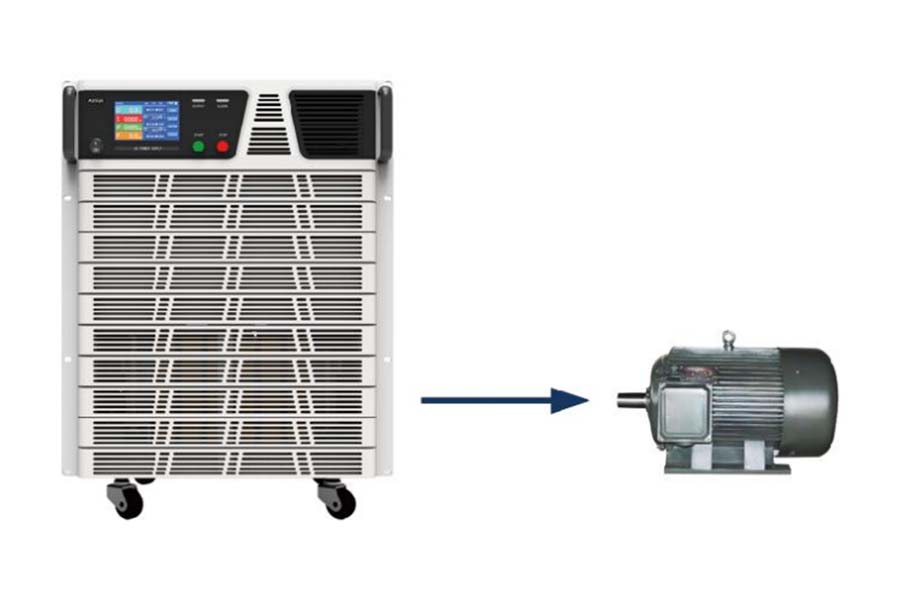

Over shock capacity:impact loads with 1/3 power can be directly started without soft start

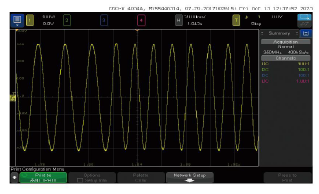

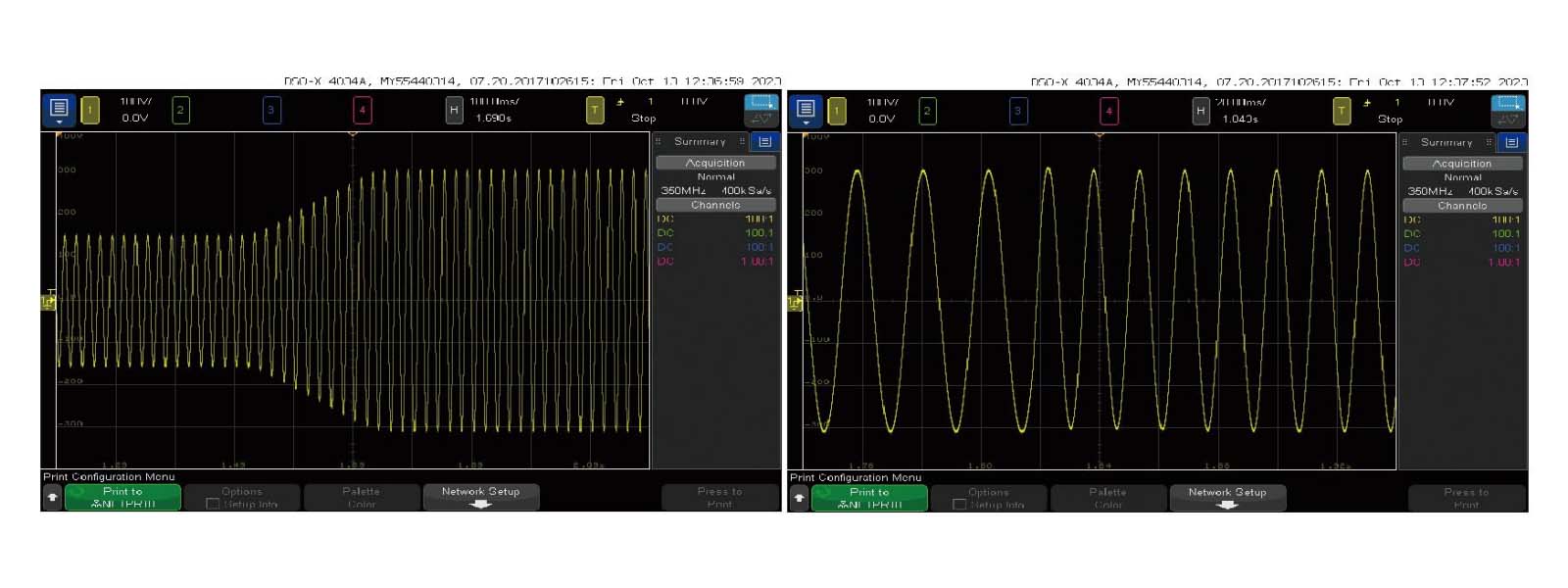

Adjustment of voltage/frequency in output state

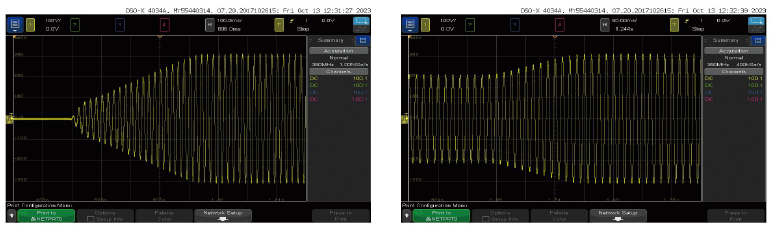

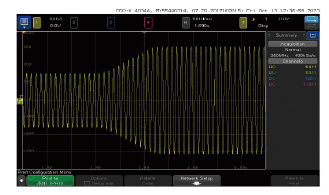

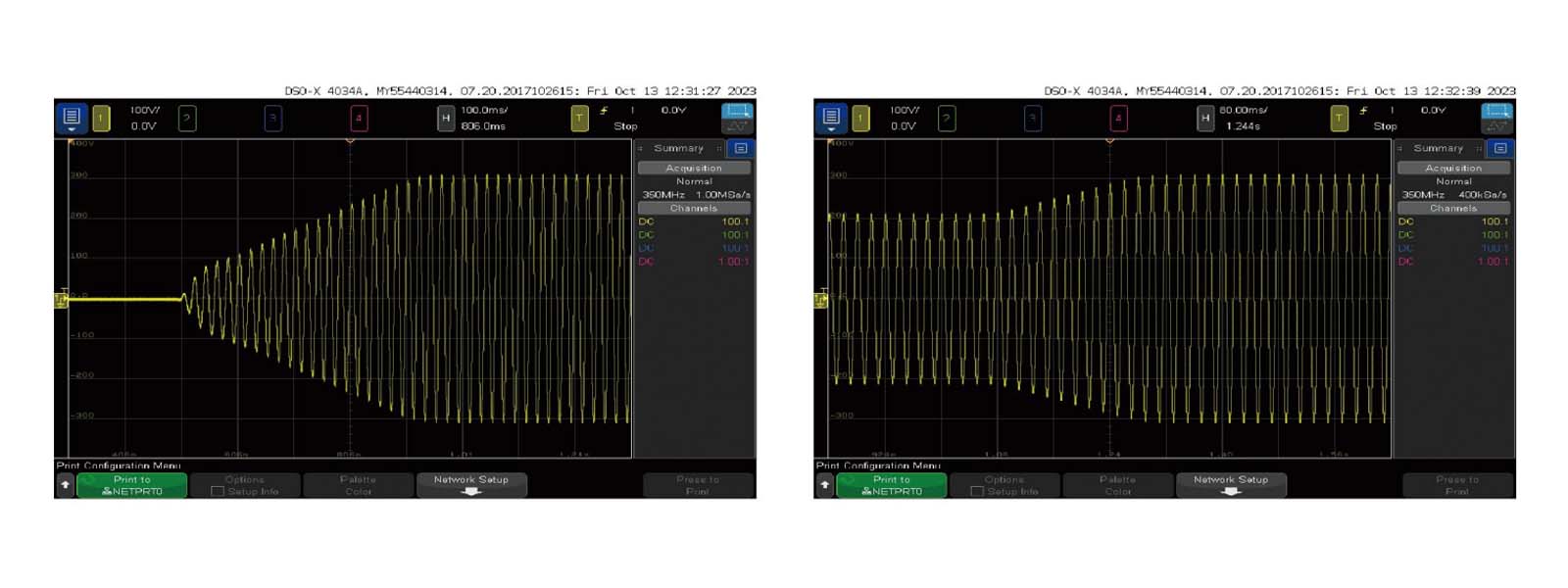

Start ramp up and online ramp up

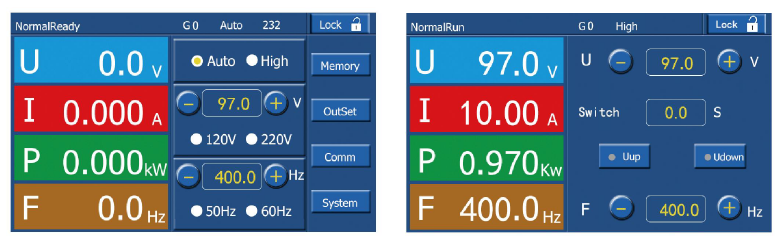

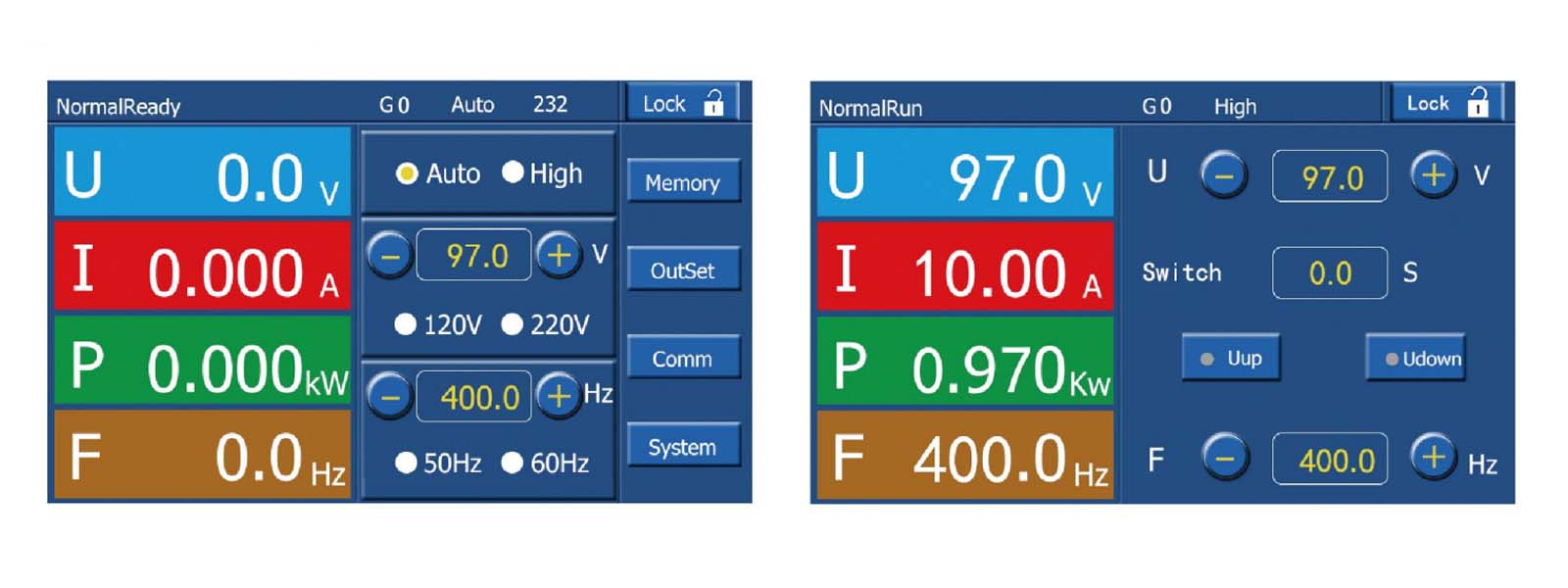

14.3”color touch screen,convenient and intuitive

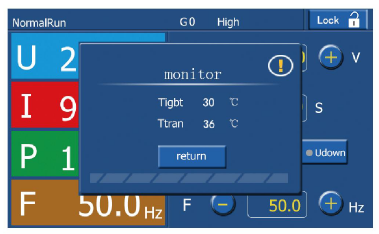

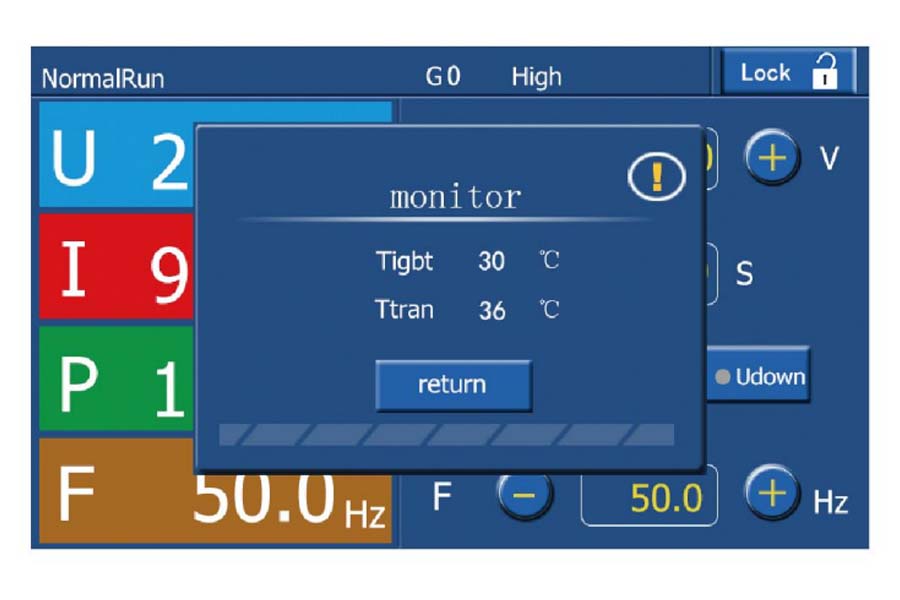

Online monitoring function

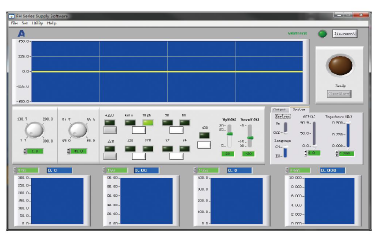

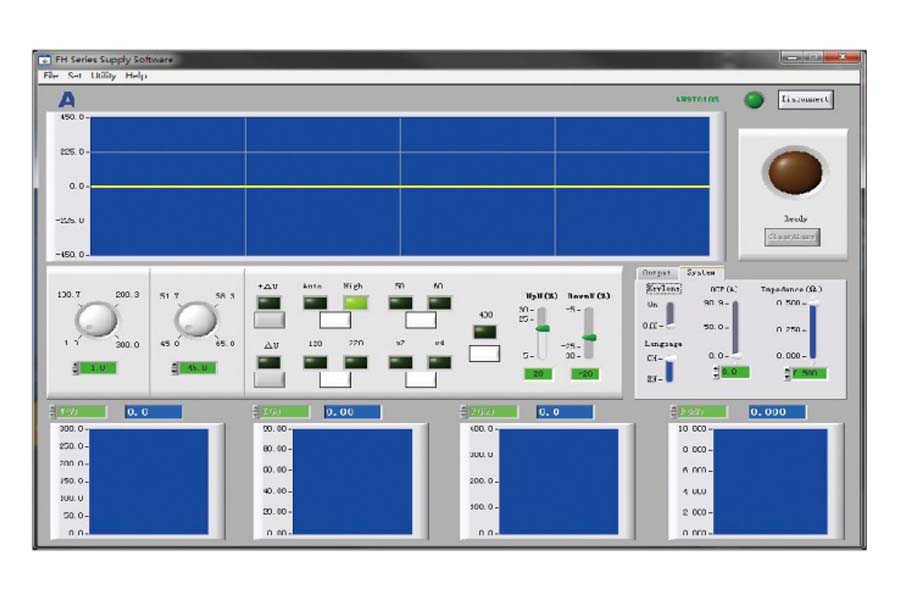

PC control software

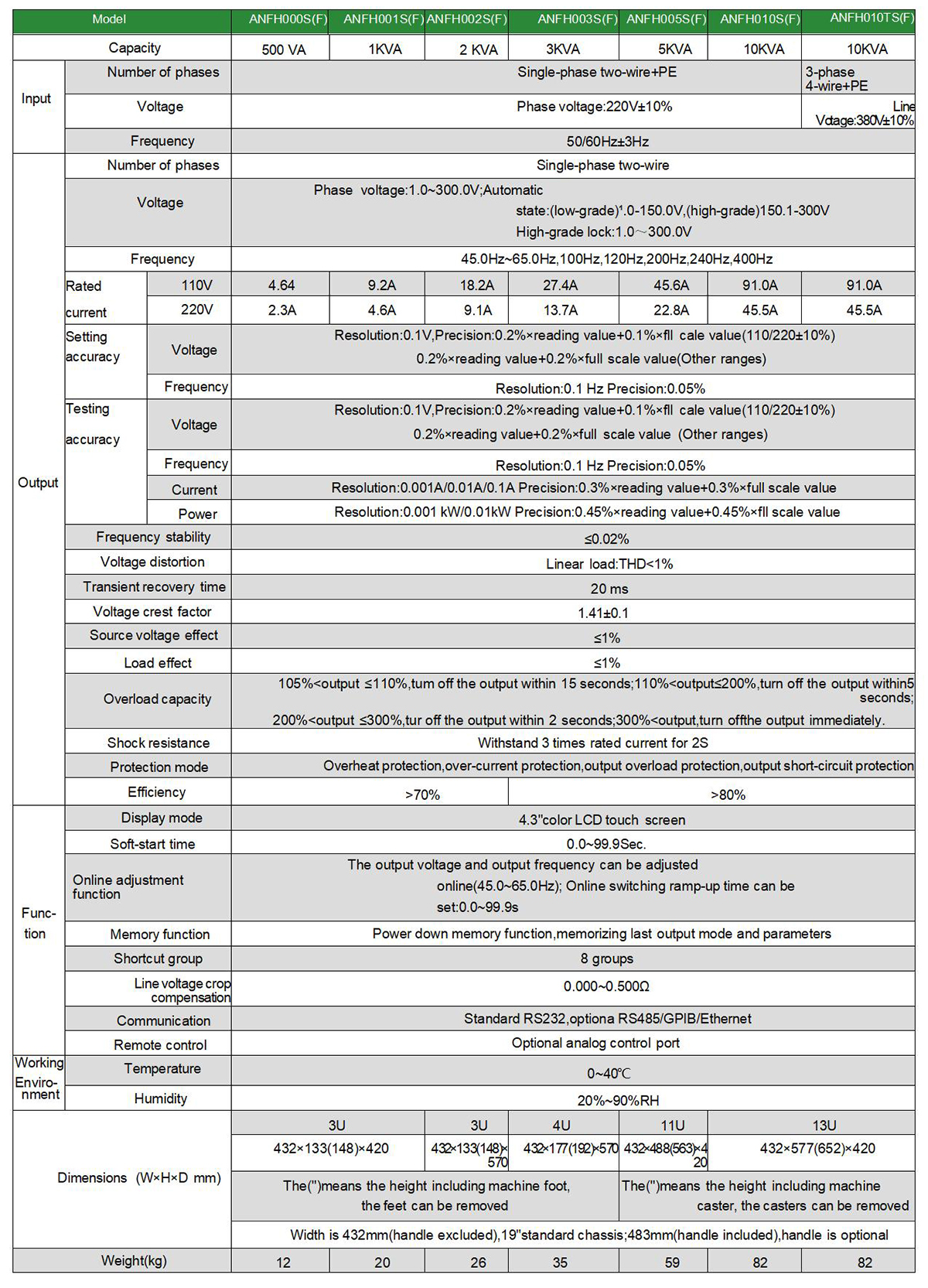

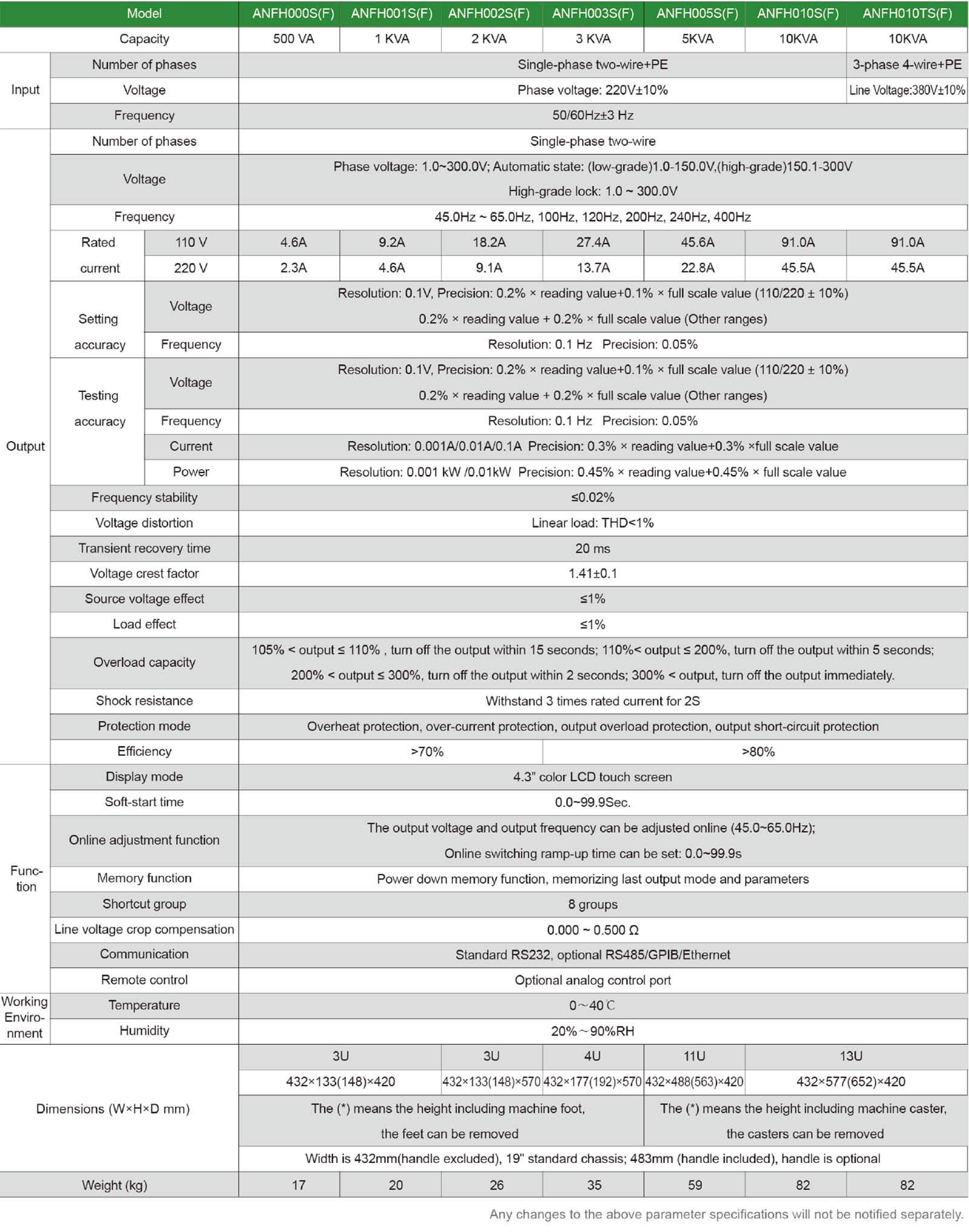

Specifications
