The Applications of a Bidirectional Grid Simulator in Home Appliance Industry

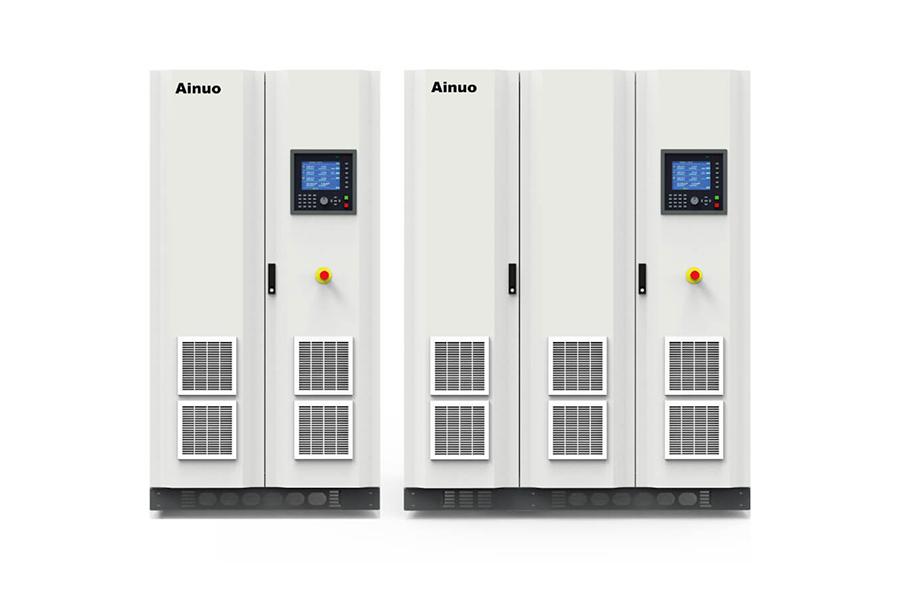

A bidirectional grid simulator is an advanced piece of test equipment that is becoming increasingly crucial in the home appliance industry. Its core function is to mimic the electrical grid, but with a critical added feature: it can not only supply power (like a standard grid simulator) but also receive power back from a device under test.

This bidirectional capability is the key to testing modern appliances that interact with the grid in more complex ways.

Here are the primary applications of a bidirectional grid simulator in the home appliance industry, broken down by function:

1. Testing Bidirectional Charging of Electric Vehicle (EV) Supply Equipment (EVSE) - "Vehicle-to-Home" (V2H)

This is one of the most significant applications. Modern EVs are essentially large batteries on wheels.

·         Application: An EV charger (EVSE) that supports V2H technology can allow an EV to power a home during a blackout or even send energy back to the grid.

·         Simulator's Role:

o    Mode 1 (Charging): The simulator acts as the grid, supplying power to the EVSE to charge the vehicle's battery.

o    Mode 2 (Discharging): The simulator acts as the home's electrical panel (or the grid), receiving power from the EV's battery via the EVSE.

·         What is Tested: The simulator verifies that the EVSE can seamlessly switch between charging and discharging modes, maintain power quality (stable voltage and frequency), and safely disconnect during grid faults.

2. Development and Validation of Smart Appliances with Grid Support Functions

Appliances like heat pumps, smart water heaters, air conditioners, and smart dryers are being designed to modulate their power consumption to help stabilize the grid.

·         Application: These appliances can respond to signals from the grid operator (e.g., to reduce load during peak demand) or use local renewable energy more efficiently.

·         Simulator's Role: The simulator creates real-world grid conditions to test the appliance's response.

o    Frequency-Watt Control: The simulator can vary the grid frequency (e.g., from 59.5 Hz to 60.5 Hz). The appliance must reduce its power draw as frequency drops, indicating grid stress.

o    Voltage-Watt Control: The simulator varies the voltage. The appliance should reduce power if the voltage is too high (e.g., from solar overproduction in a neighborhood).

o    Demand Response Signals: The simulator can mimic communications like IEEE 2030.5 (Smart Energy Profile) to signal the appliance to turn on/off or shift its cycle.

3. Testing the Resilience of Appliances to Poor Grid Conditions (Power Quality)

The real-world grid is not perfect. It has sags, swells, harmonics, and flickers.

·         Application: Ensuring an appliance operates correctly and safely during common grid disturbances without damaging itself or other connected devices.

·         Simulator's Role: The simulator can precisely generate a wide range of "dirty" power conditions:

o    Voltage Sags & Swells: Testing if a refrigerator compressor stalls or a washing machine's control board resets.

o    Harmonic Distortion: Verifying that an appliance itself does not create excessive harmonics that pollute the grid, and that it is immune to harmonics from other devices.

o    Microgrid & Islanding Tests: Simulating a scenario where the house is powered by a solar + storage system isolated from the main grid.

4. Development of Advanced Home Energy Management Systems (HEMS)

A HEMS is the "brain" that coordinates solar panels, battery storage, EV charging, and smart appliances.

·         Application: The HEMS makes decisions to minimize energy costs or maximize self-consumption of solar power.

·         Simulator's Role: It acts as a dynamic, programmable power source and sink.

o    It can simulate solar production (variable power input), grid electricity prices that change throughout the day (time-of-use rates), and the home's changing load.

o    The simulator measures how effectively the HEMS controls the appliances and battery to achieve its goals, testing complex scenarios like "peak shaving" where the system avoids drawing power from the grid during expensive periods.

5. Certification and Compliance Testing

To be sold in many markets, appliances must meet specific standards for safety and grid compatibility.

·         Application: Verifying compliance with standards like UL 1741 (North America) or IEC 62109, which govern how distributed energy resources (including smart appliances) interconnect with the grid.

·         Simulator's Role: It automates and executes standardized test protocols, such as Anti-Islanding protection tests. This test ensures that if the grid goes down, the appliance (e.g., a solar-powered inverter in a heat pump) shuts off within a required time to prevent endangering utility workers.

Summary of Benefits for the Home Appliance Industry:

·         Faster Time-to-Market: Allows for rigorous, automated testing of complex grid-interactive functions in the lab, reducing the need for costly and slow field tests.

·         Improved Reliability and Quality: Uncovers design flaws related to power electronics and grid interaction early in the R&D phase, leading to more robust products.

·         Safety Assurance: Critical for validating safety features like anti-islanding and fault ride-through.

·         Enabling Innovation: Provides the necessary tool to develop next-generation appliances that are essential for a decarbonized, resilient, and smart grid.

In short, the bidirectional grid simulator is no longer a niche tool. It is fundamental for developing the smart, grid-responsive, and energy-resilient appliances that will define the future of the home appliance industry.
