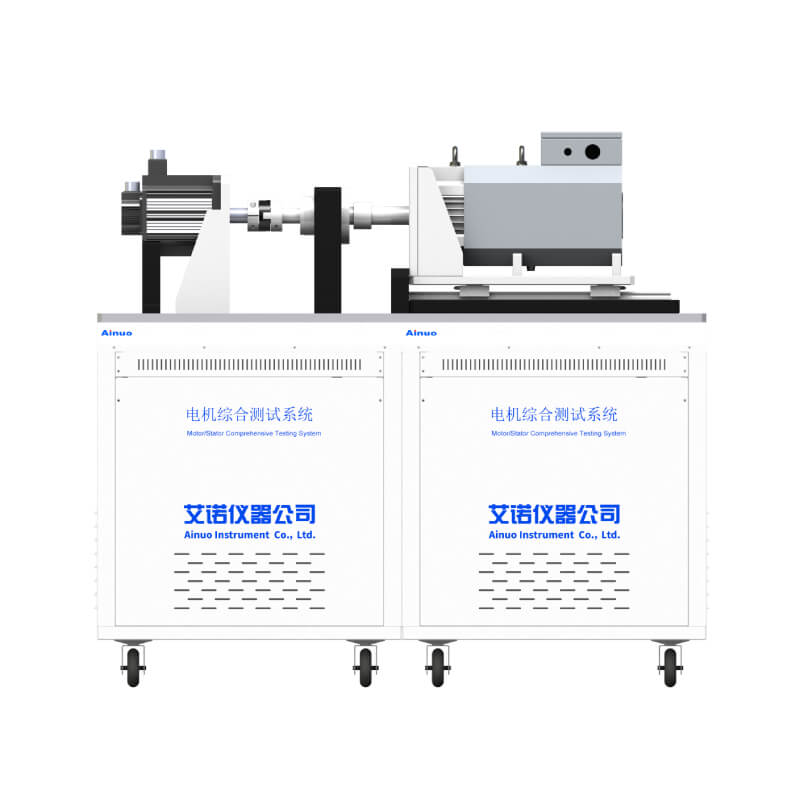

Key Points for Selecting a High-Precision DC Motor Test System

In the field of modern industrial production and scientific research, DC motors are widely used due to their excellent speed regulation performance, high torque output, and other characteristics. They are applied in various scenarios such as CNC machine tools, new energy vehicle drives, aerospace equipment, etc. As a core tool for evaluating the performance of DC motors, the accuracy of selecting a high-precision DC motor testing system directly affects the quality control of motor products, R&D efficiency, and enterprise production benefits. The following will elaborate on the key points of selecting a high-precision DC motor testing system from multiple dimensions.

I. Clarify the Test Requirements and Application Scenarios

Before selecting a motor, the primary task is to clearly define one's own testing needs and application scenarios. There are significant differences in the test focus for DC motors used in different industries and applications. For example, in the field of new energy vehicles, drive motors need to operate stably at high speeds and under heavy loads for extended periods, thus requiring highly demanding functions from the test system such as high-speed performance testing, overload capacity simulation, and durability testing. In the medical device field, DC motors used to drive precision components focus more on low noise and high precision operation performance, which requires the test system to have precise vibration and noise detection modules, as well as the ability to simulate the actual working load of medical devices. Additionally, if a company has a large production scale and high efficiency requirements for motor testing, then a system that supports multi-channel parallel testing and automated test procedures will be more suitable. If it is a research institution, the test system needs to have high flexibility and scalability to adapt to constantly changing research needs.

II. Core Performance Indicators Consideration

Measurement accuracy

Measurement accuracy is one of the core indicators of high-precision DC motor testing systems. It directly determines the reliability and effectiveness of test results. In terms of key parameter measurements, such as speed measurement, it is advisable to choose a system that uses high-precision encoders or non-contact tachometer sensors to ensure that the speed measurement error is controlled within an extremely small range. For scenarios with high precision requirements, the error should not exceed ±0.1%; torque measurement requires attention to the sensor's accuracy grade and linearity, generally, the torque measurement accuracy of high-precision testing systems should reach ±0.5% FS (full scale) or above; voltage and current measurements are equally important, high-precision testing systems should have high-resolution ADCs modules capable of accurately capturing minor changes in electrical parameters during motor operation, meeting the high-precision requirements for motor efficiency analysis.

Test Scope

The test scope of the testing system must cover the parameter range of DC motors produced or developed by the enterprise. This includes the motor's rated power, rated voltage, maximum speed, and maximum torque, etc. For example, if the enterprise plans to produce high-power DC motors in the future, then the power carrying capacity and current output capability of the selected testing system must match it to avoid situations where the testing system cannot meet the extreme condition tests of the motor. At the same time, when considering the speed range, not only should the test for the motor's rated speed be met, but also a certain overspeed test capability should be available to simulate the performance of the motor under abnormal conditions.

Response speed

During dynamic testing, the operating conditions of a DC motor change rapidly, which requires the test system to have a fast response speed and be able to collect and process motor operation data in real-time accurately. For example, in the acceleration and deceleration tests of the motor, the test system needs to capture changes in parameters such as motor speed and torque within an extremely short time and promptly feed back to the control system to achieve precise control over the testing process. A test system with slow response speed may lead to distortion of test data and fail to truly reflect the dynamic performance of the motor.

III. Functional Completeness and Extensibility

Functional Integrity

An excellent high-precision DC motor testing system should have comprehensive test functions. In addition to the conventional no-load, load, and locked-rotor tests, it should also include efficiency testing, temperature rise testing, insulation performance testing, electromagnetic compatibility testing, and other functional modules. For example, efficiency testing can help enterprises evaluate the energy utilization efficiency of motors and provide data support for energy-saving design; temperature rise testing can detect the heating situation of motors during long-term operation, avoiding damage caused by overheating. Moreover, a system with automatic test report generation function can greatly improve the efficiency of testing work and reduce the workload of manual data recording and organization.

Scalability

Considering the future development and technological upgrades of enterprises, the scalability of the testing system is crucial. The system should have standardized interfaces and a modular design to facilitate the addition of new test function modules or integration with other devices as needed in the future. For example, with the advancement of intelligent technology, enterprises may need to connect their testing systems to IoT platforms to achieve remote monitoring and data sharing; or when developing new types of motors, special test items such as high-frequency characteristic testing may be required. All of these require the test system to be flexible and scalable, reducing the costs and risks associated with equipment upgrades for enterprises.

IV. Software System and Ease of Operation

The software part of the testing system is key to implementing test functions, data processing, and analysis. An excellent test software should have a simple and intuitive user interface that allows even new employees to quickly get started. At the same time, the software should possess powerful data processing and analysis capabilities, capable of real-time analysis of large amounts of collected data, plotting curves, generating charts, and supporting export in various data formats for subsequent in-depth research and report writing. In addition, the stability of the software cannot be overlooked; it should avoid issues such as crashes or data loss during the testing process, which could affect the progress and accuracy of the results.

V. Suppliers and After-Sales Service

Choosing a reliable supplier is an important step in the selection process. It is advisable to prioritize suppliers with rich experience in motor testing, good reputation, and high market share. These suppliers typically possess more advanced technology, a more comprehensive quality control system, and can provide test systems that are stable in performance and reliable in quality. At the same time, excellent after-sales service is also indispensable. Suppliers should be able to offer timely technical support, including installation and commissioning, operation training, fault repair, etc.; regularly maintain and calibrate the system to ensure that the test system always maintains a high-precision working state; and continuously optimize and upgrade products based on customer feedback.

The selection of a high-precision DC motor testing system is a complex and critical task that requires a comprehensive consideration of multiple aspects such as testing requirements, performance indicators, functional scalability, software systems, and supplier services. Only by fully and meticulously considering these key points can one choose the most suitable test system for their own enterprise's needs, providing strong support for the research and development, production, and quality control of DC motors.
