How To Test 800V High-Voltage Fast Charging Platform with Test Power Supply?

Industry background

Against the backdrop of new energy vehicle range and charging experience becoming the core pain points, in order to solve the current bottleneck (heat generation, loss, weight cost) faced by high-power fast charging on the 400V platform, while pursuing higher system efficiency and performance potential, relying on the progress of battery technology, the maturity of SiC power devices, and the promotion of policy regulations and market demand for ultra fast charging, supported by the rapid development of the entire industry chain, the 800V high-voltage platform has emerged and quickly become the mainstream technology direction for the development of mid to high end electric vehicles. Under this trend, how to test high-voltage platforms faces new challenges!

Test Pain Points

Higher voltage level: Testing equipment (such as power supplies and loads) must support higher voltages (>1000V or even higher), and insulation level requirements must be increased.

More stringent dynamic response: During the fast charging process, the current and voltage changes dramatically, and the test power supply needs to have extremely fast transient response capability and high accuracy.

The complexity of system integration testing has increased: the collaborative work and safety protection logic testing of battery packs, motors, electronic controls, OBC, and DC/DC on high-voltage platforms are more complex, requiring multi-channel, programmable test power supplies to simulate various working conditions.

Solution

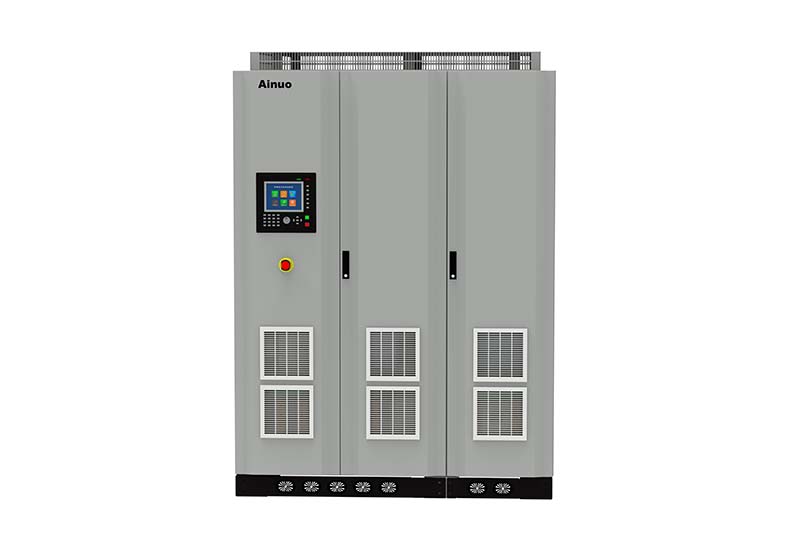

To meet market demand, Aino has launched the high-power bidirectional DC power supply ANEVT series. This series of products integrates power supply and load, with adjustable parameters and battery simulation function, which can simulate seven battery characteristics.

1. Product Features

Wide range: with high voltage (0-1200V), high current (0-2000A), wide range output, meeting different testing needs;

Dynamic response: Load response time ≤ 3ms, forward and reverse energy switching response time ≤ 4ms;

Programming function: 900 step programming function, minimum programming time of 1ms;

High precision output: voltage 0.05% F.S, current 0.1% F.S;

Grid feedback: Adaptive grid feedback function, continuous energy feedback at full power.

2. Resolve pain points

Solved the shortcomings of traditional testing power supply voltage, response capability, accuracy, etc. The programmable function can simulate various battery operating conditions for testing.

Conclusion

The ANEVT series of bidirectional programmable DC power supplies from Aino Company adopts high-frequency modular design, with high power density. The power supply has functions such as battery simulation, electronic load, photovoltaic simulation, etc. It can not only achieve the function of a source, provide energy, but also have load function, reverse absorb energy and clean it back to the grid, with standard dual quadrant function. The ANEVT series products efficiently solve industry testing bottlenecks with breakthrough technology solutions. With excellent quality, they have won high recognition from domestic and foreign manufacturers and become a high-quality choice in the industry.
