Overview

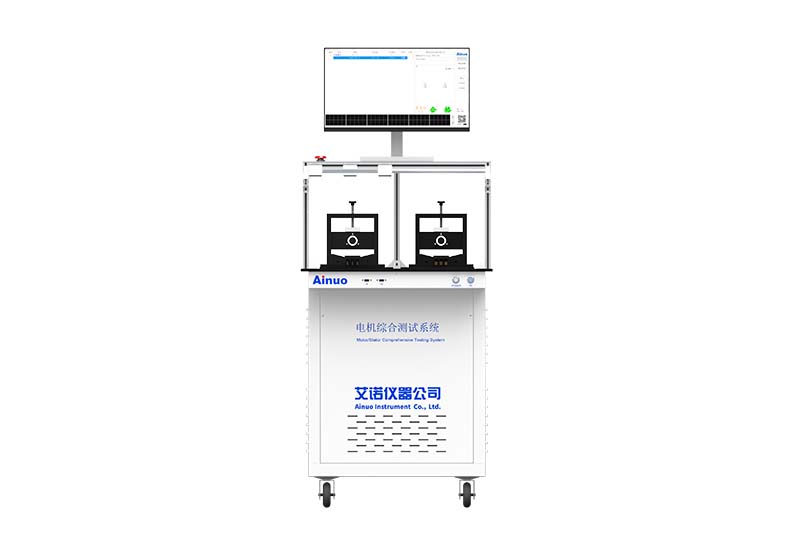

This tester features resistance, inductance, insulation, withstand voltage, interturn tests and other functions, with all functions tested in one wiring connection. It is a new comprehensive tester with high integration, high precision, practicality, and safety. It is suitable for stator/complete machine test requirements of new energy vehicle motors, household appliance motors, servo motors, stepper motors, fan motors, pump motors, large industrial motors, BLDC motors, etc.

Features

High integration: It can integrate 7 test functions and complete all tests with one wiring connection.

Multi-channel: The system can support up to 32 channels, meeting the needs of testing multiple windings, multiple attachments and other multiple taps of the motor.

Wide range: The extendable resistance measurement range is 0.1mΩ~20,000KΩ; the upper limit of the insulation testing range reaches 50GΩ .

High performance: In view of the low inductance characteristics of the new energy main drive motor, special constant voltage, impact and oscillation technologies are developed, and the interturn detection ability is many times higher than that of traditional technology.

High  precision: The accuracy of the module can reach up to 1% level, which is the measurement level of the same type of international single-function meter in the United States.

High reliability: It has undergone strict working condition tests and millions of tests in complex environments.

Multiple interfaces: The system supports USB, RS232, LAN and other interfaces, and supports PLC communication, TCP/IP network protocol, etc., which is convenient for data interaction and instrument control, and meets the requirements of automatic production line docking.

Test Items

AC withstand voltage, DC withstand voltage, insulation resistance, DC resistance, resistance balance, interturn, inductance, inductance balance, reverse embedding, steering, etc.

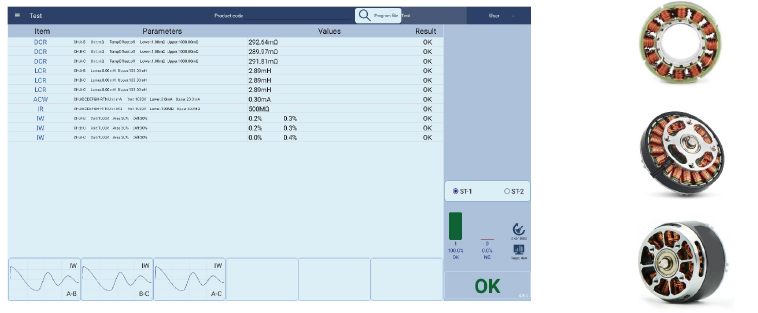

Software Interface

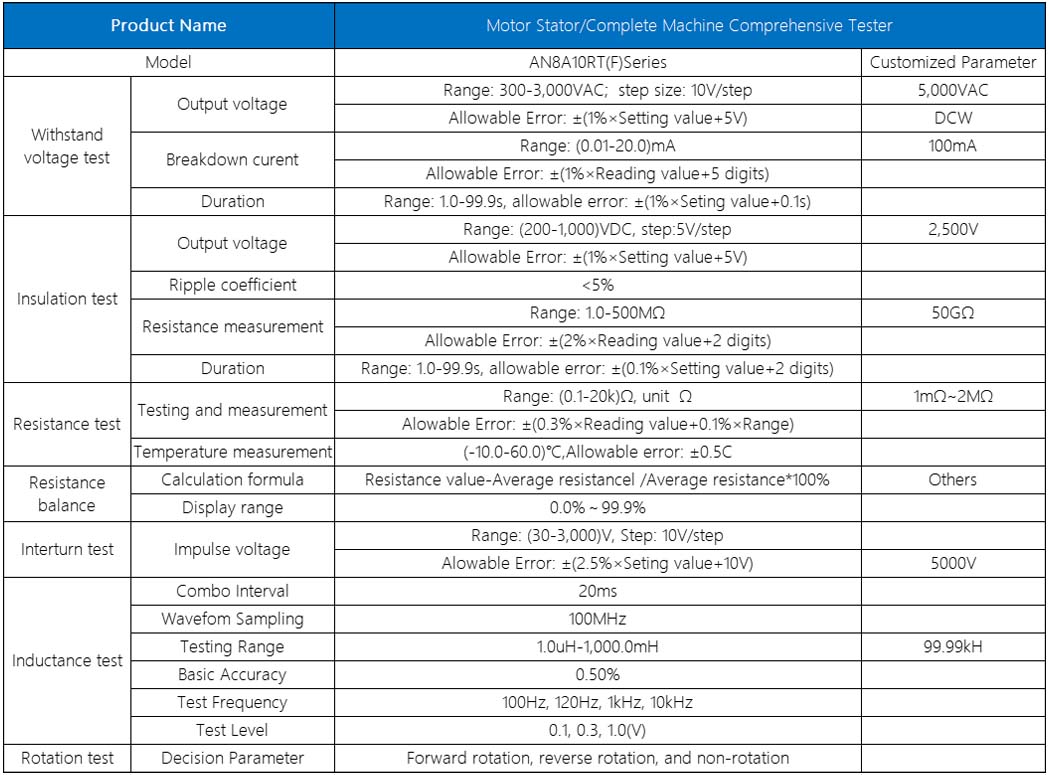

Specifications
