Overview

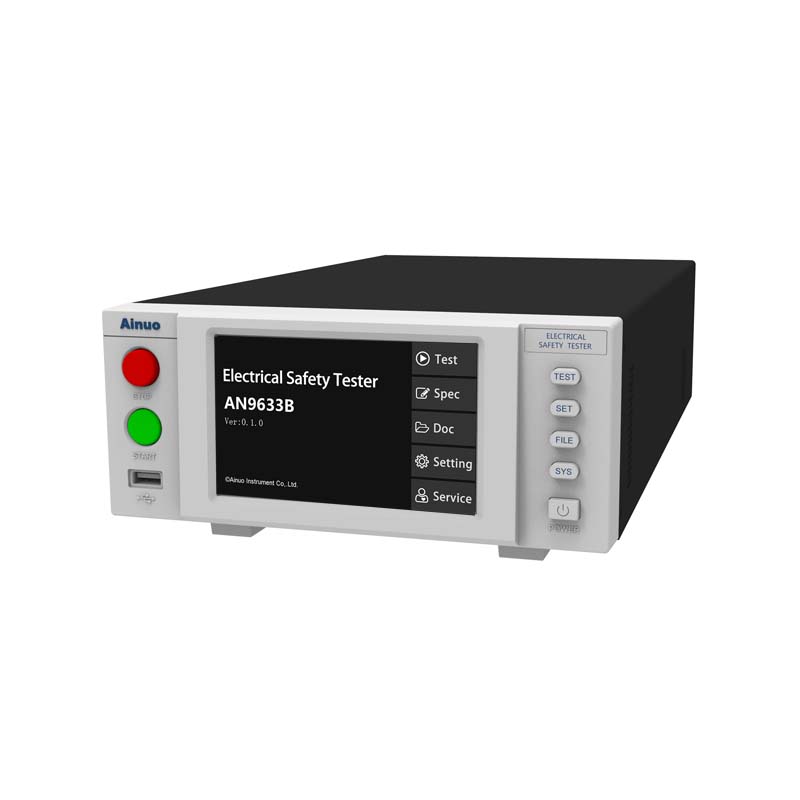

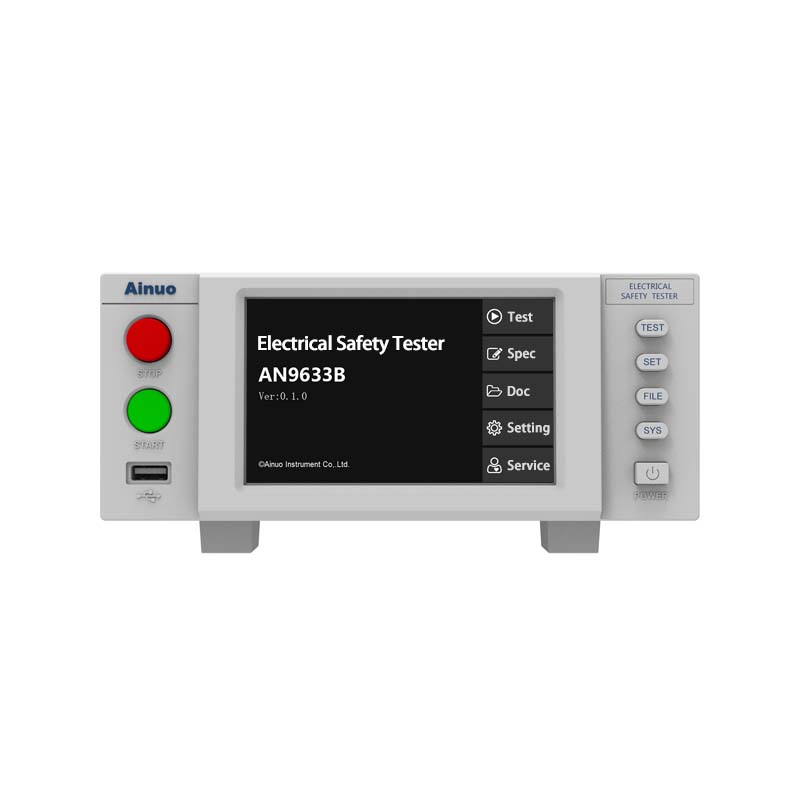

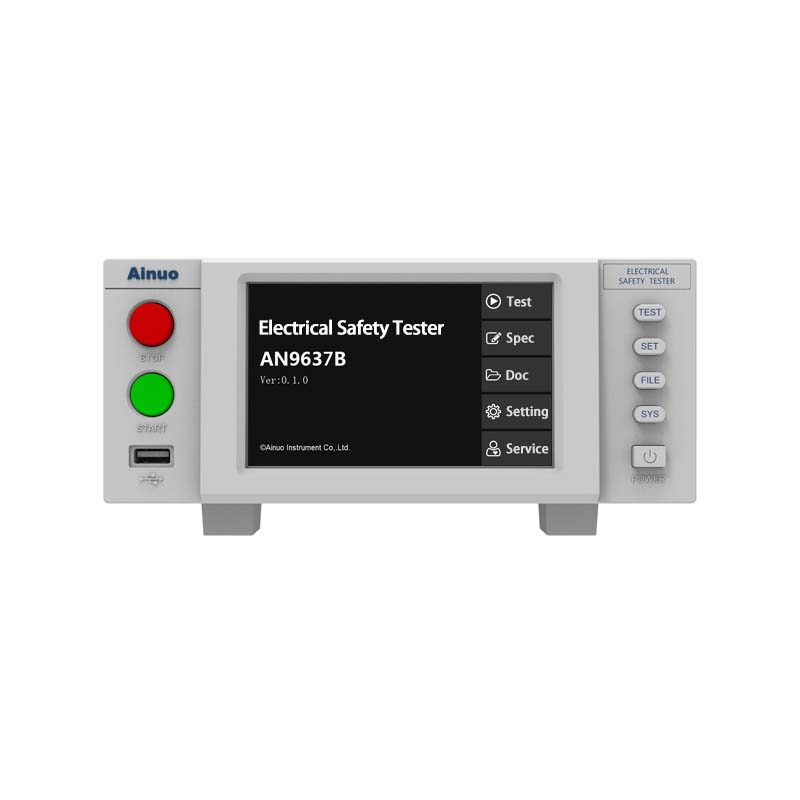

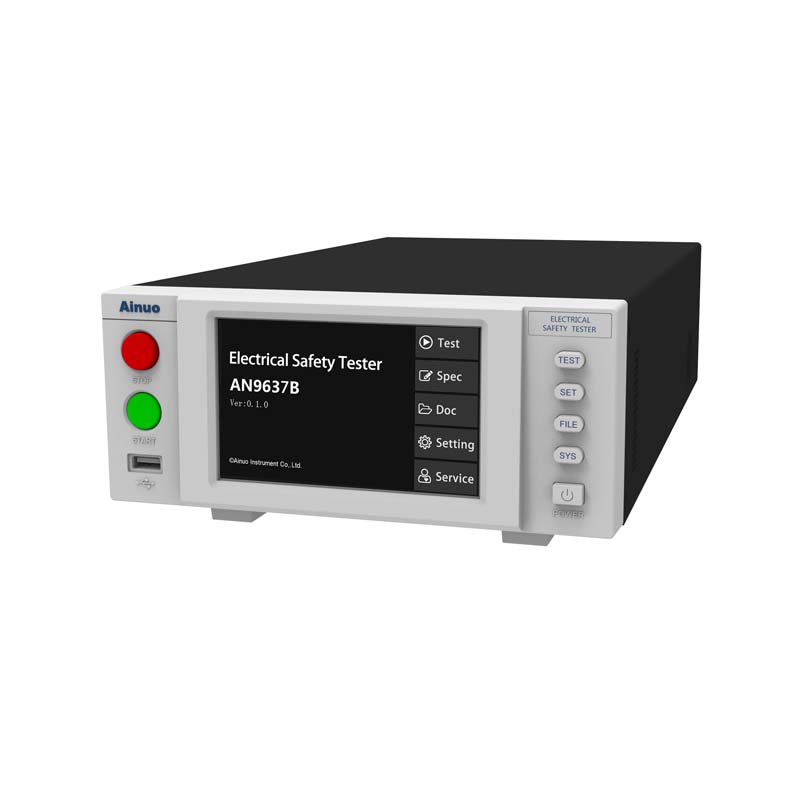

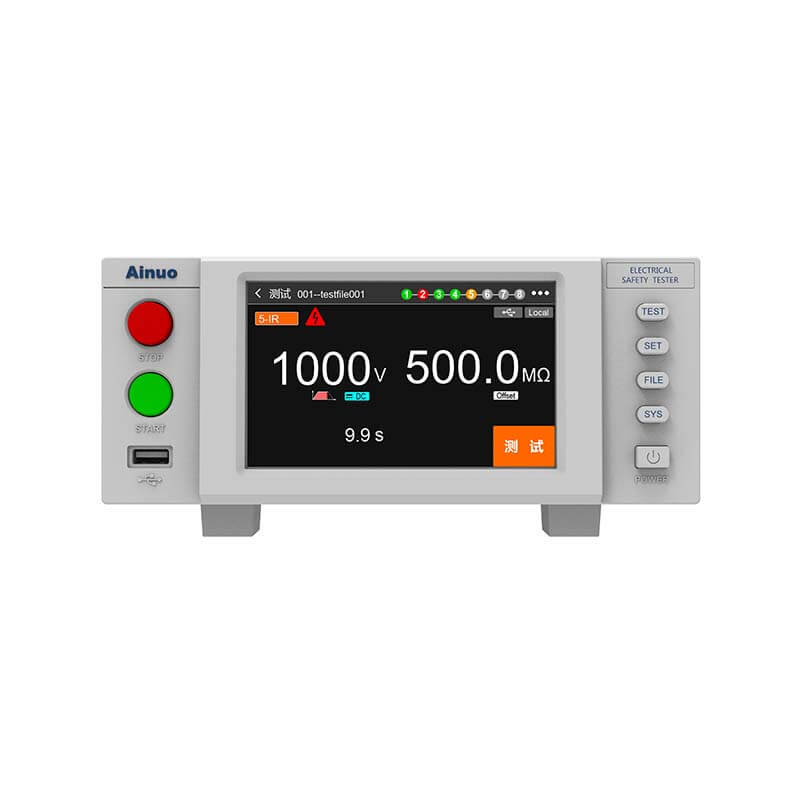

Ainuo AN96XXB(F)Series electrical safety tester has a multi-function combination including AC withstand voltage, DC withstand voltage, insulation resistance, and AC grounding, as well as auxiliary functions such as arc detection, open and short circuit detection, and low-pass filtering, and has a variety of interfaces including RS232\RS485\PLC\LAN(optional)\USB (optional). This series of product features compact, light, rich interfaces, and is suitable for desktop testing, system integration, and other operating conditions.

Features

• Functions: ACW/DCW/IR/GB
• Wide range: ACW 5kV, DCW 6kV, IR 3kV/50GΩ

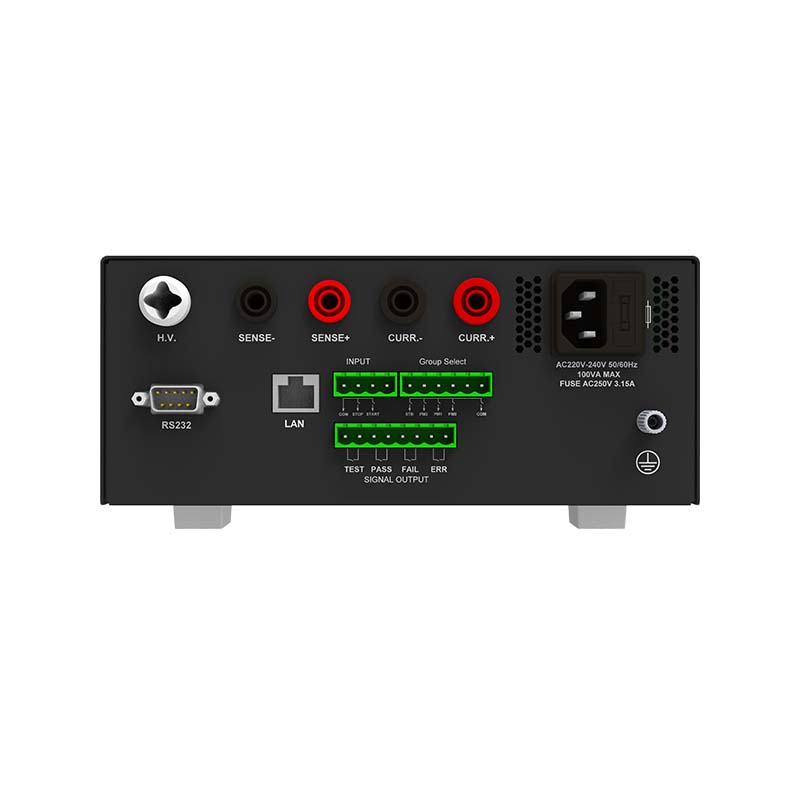

• Rich interfaces: RS232/IO/INTERLOCK/ALARM/USB/LAN
• Auxiliary functions: slow rise/hold/slow down, comprehension, ARC, OSC, WAIT

Applications

• Safety of household and similar electrical appliances (GB4706.1/IEC60335-1)
• Audio/video, information and communication technology equipment (GB4943.1/IEC62368-1)
• Safety requirements for electrical equipment for measurement, control, and laboratory use (GB4793.1/IEC61010-1)
• Safety test for switching power supply, transformer, low-voltage electrical appliances, electronic components, and other electronic products

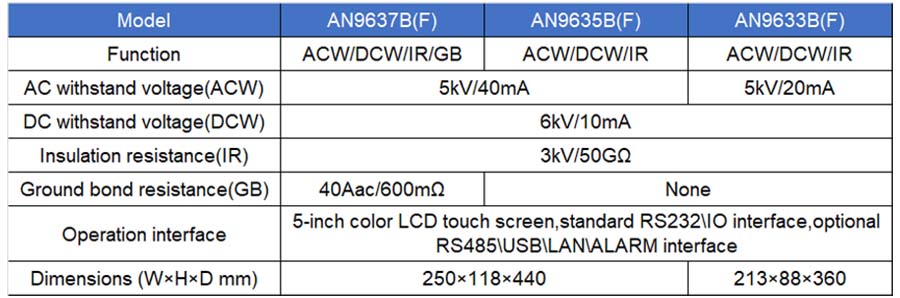

Specifications
